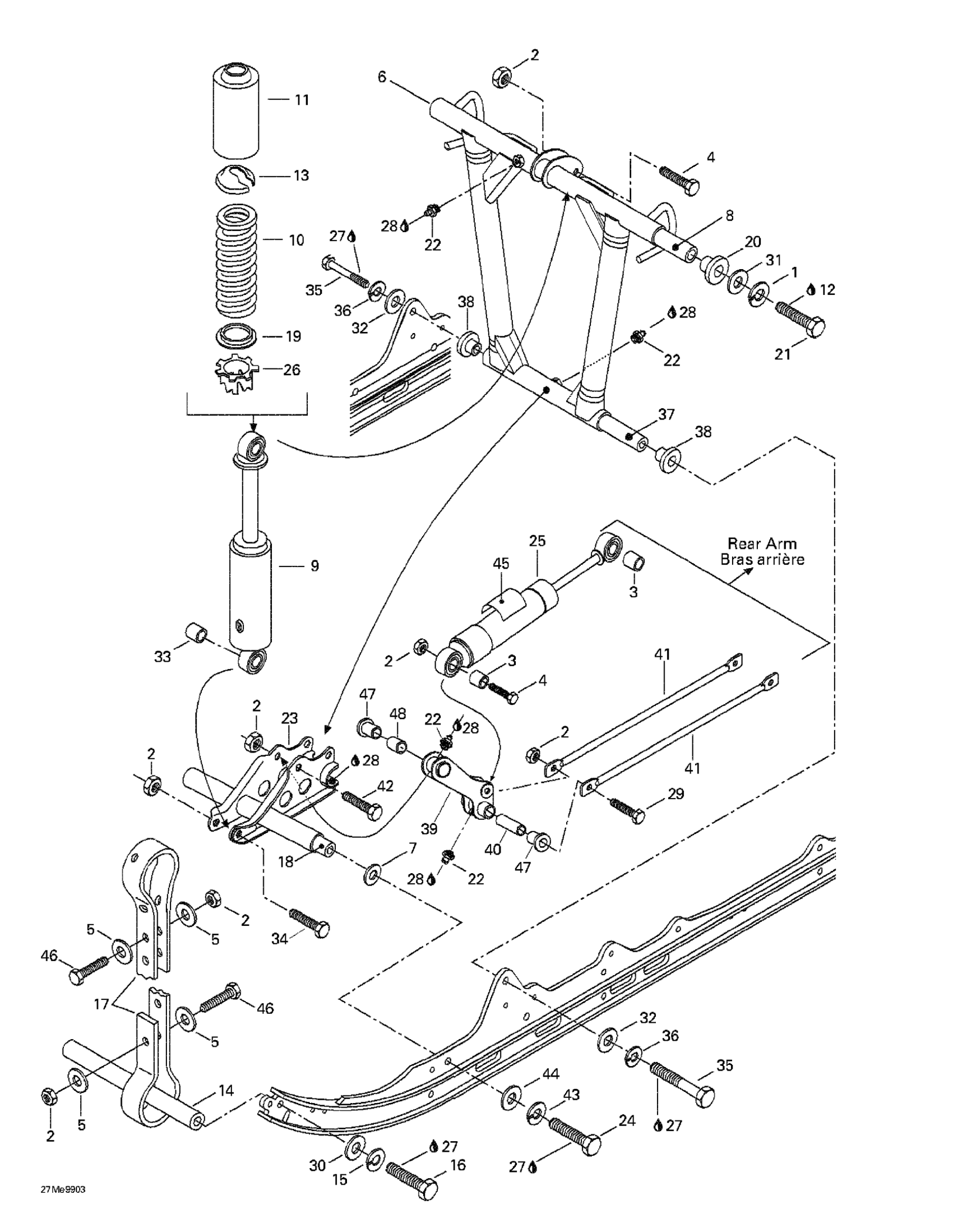

Ski-Doo Grand Touring 500/583, 1999 08- Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Bushing

414936000

$13.99

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503171100

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Center Shock

415094600

Unavailable

10

Shock Spring

415070600

Unavailable

11

Protector

503193663

$37.99

12

Loctite 243, 10 ml

293800060

$21.49

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap

570069300

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring Guide

572092600

Unavailable

20

Bushing

503189324

$14.15

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support

503188976

Unavailable

24

Hex. Screw M12 x 40

222024065

Unavailable

25

Rear Shock

415095000

Unavailable

Rear Shock (Europe)

860305100

Unavailable

26

Cam

503169000

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

29

Hex. Screw M8 X 90

207089044

$3.48

30

Flat Washer 8 mm

234081410

$0.83

31

Flat Washer 10 mm

234001410

$1.26

32

Flat Washer 12 mm

234021410

$0.72

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.68

35

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

36

Lock Washer 12 mm

224721218

Unavailable

37

Shaft

503182000

Unavailable

38

Cushion

503188940

Unavailable

39

Lever

503171400

Unavailable

40

Tie Rod Shaft

503171600

Unavailable

41

Tie Rod

503184900

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.48

43

Lock Washer 12 mm

224721218

Unavailable

44

Flat Washer 12 mm

234021410

$0.72

45

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

HPG Decal (Europe)

516000182

Unavailable

46

Hex. Screw M8 X 25

207182544

$0.90

47

Plastic Cushion

415052300

Unavailable

48

Pivot Axle

503171700

Unavailable
