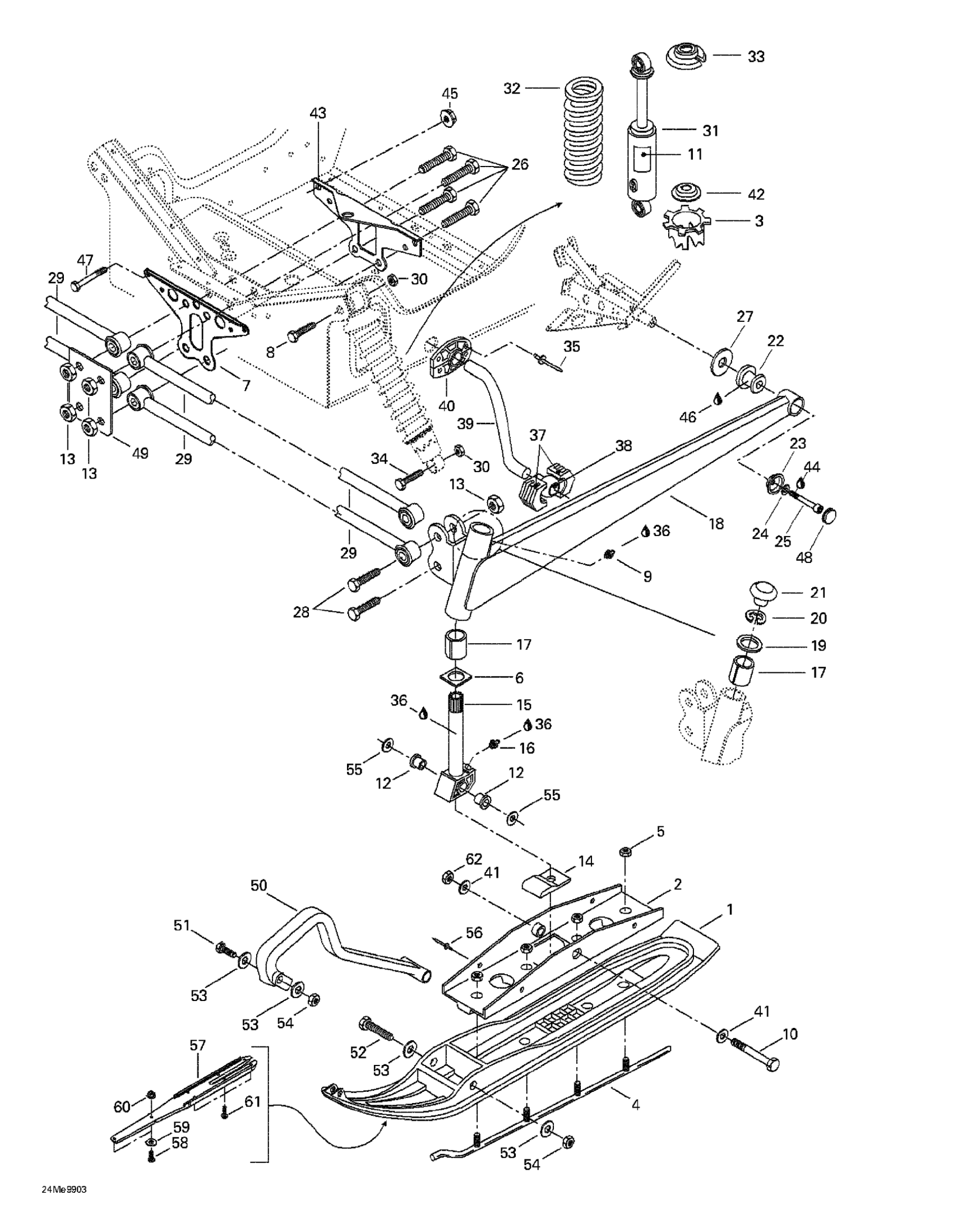

Ski-Doo Grand Touring 500/583, 1999 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$127.99

Ski-Liner Flex

505070189

$127.99

2

Bridge Ass'y

505070251

Unavailable

3

Adjustment Cam

505073625

$12.99

4

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.69

6

Wear Plate

506081200

Unavailable

7

Front Link Plate

517254800

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Grease Fitting

408200700

$3.49

10

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

11

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

Ski Stopper

570053300

Unavailable

15

Ski Leg | Includes 15 - 16.

506144500

Unavailable

16

Grease Fitting

408200700

$3.49

17

Cushion

572069900

Unavailable

18

RH Swing Arm (Blue)

506135100

Unavailable

LH Swing Arm (Blue)

506135200

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$12.99

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

$7.89

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Hex. Screw M12 x 100

230020044

Unavailable

27

WASHER - Call your local BRP dealership

503146700

Unavailable

28

Hex. Screw M12 x 50

207025044

Unavailable

29

Arm Ass'y (42")

580649700

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.69

31

Front Shock

505070015

Unavailable

32

Shock Spring

505070089

Unavailable

33

Spring Stopper

706200881

$12.99

34

Hex. Screw M10 X 55

207005544

$2.22

35

Pop Rivet 3/16"

390402300

$0.75

36

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

37

Block Sliding

572069800

Unavailable

38

Ball Joint

503142200

Unavailable

39

Stabilisator

506131800

Unavailable

40

Half-Bushing

572029900

Unavailable

41

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

42

Spring Guide

503187500

$10.49

43

Rear Link Plate

517254900

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Grease, Super Lube

293550030

$28.99

47

Hex. Screw M6 X 55

207065544

$2.11

48

CAP - Call your local BRP dealership

572045900

Unavailable

49

Support

518306700

Unavailable

50

Black, Handle

505070963

$35.99

51

Hex. Screw M8 X 50

207085044

$1.48

52

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

53

Flat Washer 8 mm

234081410

$0.83

54

Hex. Elastic Stop Nut M8

232581414

$0.56

55

Washer

732900048

Unavailable

56

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

57

PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership | GT

505070232

Unavailable

58

Socket head screw M5 x 25

205452546

Unavailable

59

Flat Washer 6 mm

234061410

$1.36

60

Hex. Flange Elastic Nut M5

233251414

$1.04

61

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

62

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable
