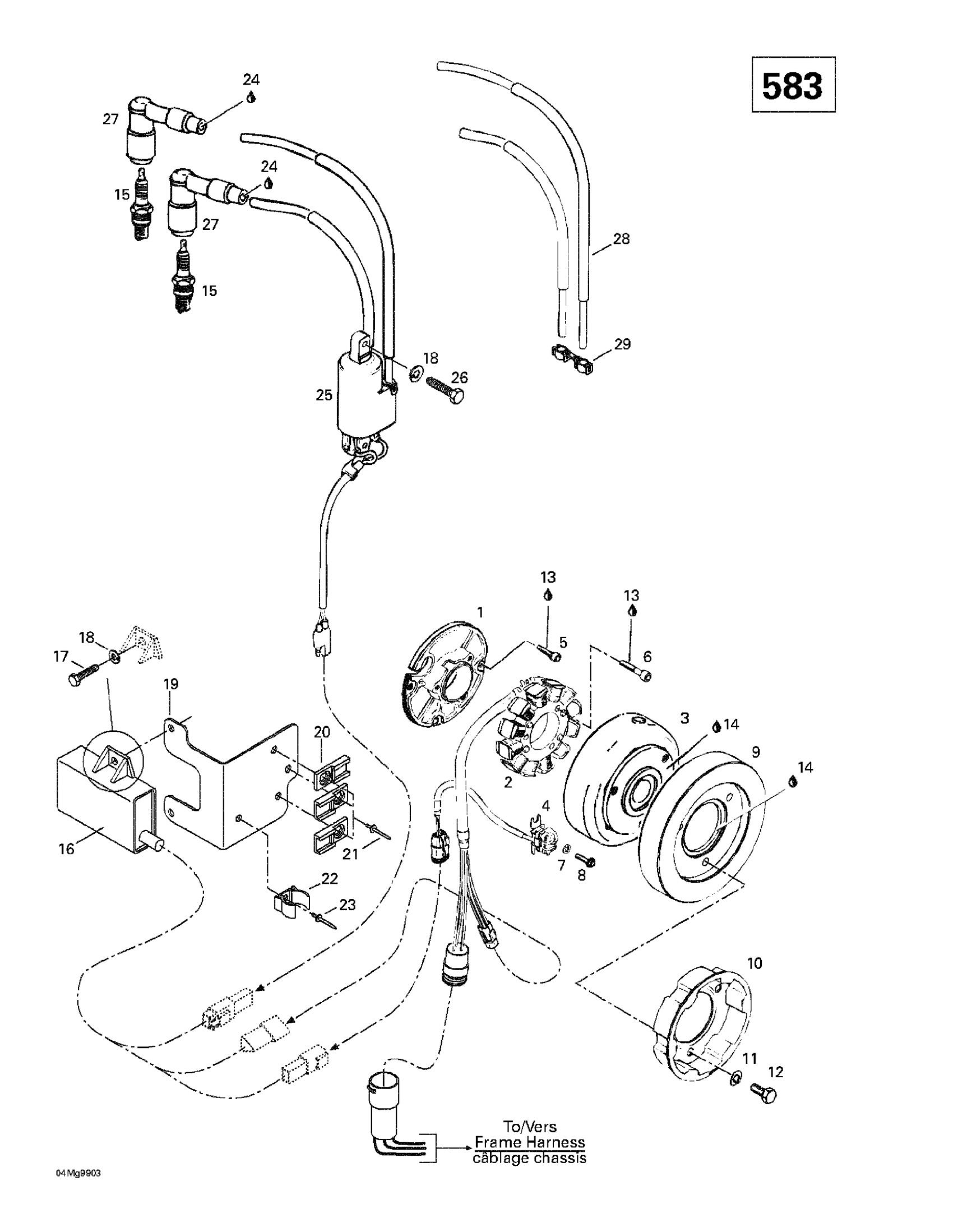

Ski-Doo Grand Touring 500/583, 1999 03- Magneto 12V 220W (583) Diagram

Armature Plate | Formula Deluxe 583.

420810262

Unavailable

Magneto Ass'y 12V 220W | Includes 2 - 4. Formula Deluxe 583.

410922400

Unavailable

Stator Ass'y | Formula Deluxe 583.

410922100

Unavailable

Magneto Flywheel | Formula Deluxe 583.

410922500

Unavailable

Pick Up Ass'y | Formula Deluxe 583.

410921100

Unavailable

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

WASHER - Call your local BRP dealership

420827800

Unavailable

Taptite Screw M5 X 16

420941928

Unavailable

Flywheel | Formula Deluxe 583.

420866759

Unavailable

Starting Pulley | Formula Deluxe 700.

420852411

Unavailable

Washer-Lock Din.128

420945832

$1.15

Hex. Screw M8 X 20

207182044

$0.74

Loctite 243, 10 ml

293800060

$21.49

Sealant Loctite 648

219703000

$45.99

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

Ignition Module | Includes 36 - 47.

512058927

Unavailable

Hex. Screw M6 X 16

207161644

$0.74

Lock Washer M6, Black

234161471

$0.53

Cable Support

515175107

Unavailable

Clip

270000141

$11.49

Not Available As Spare Part - Friction Washer

Unavailable

Clip

415089700

Unavailable

RIVET_POP 1/8 - Call your local BRP dealership

390402500

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

IGNITION COIL - Call your local BRP dealership | Includes 14 - 19.

415085400

Unavailable

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

Plastic Clip, Spark Plug Wire

410914600

$5.61
