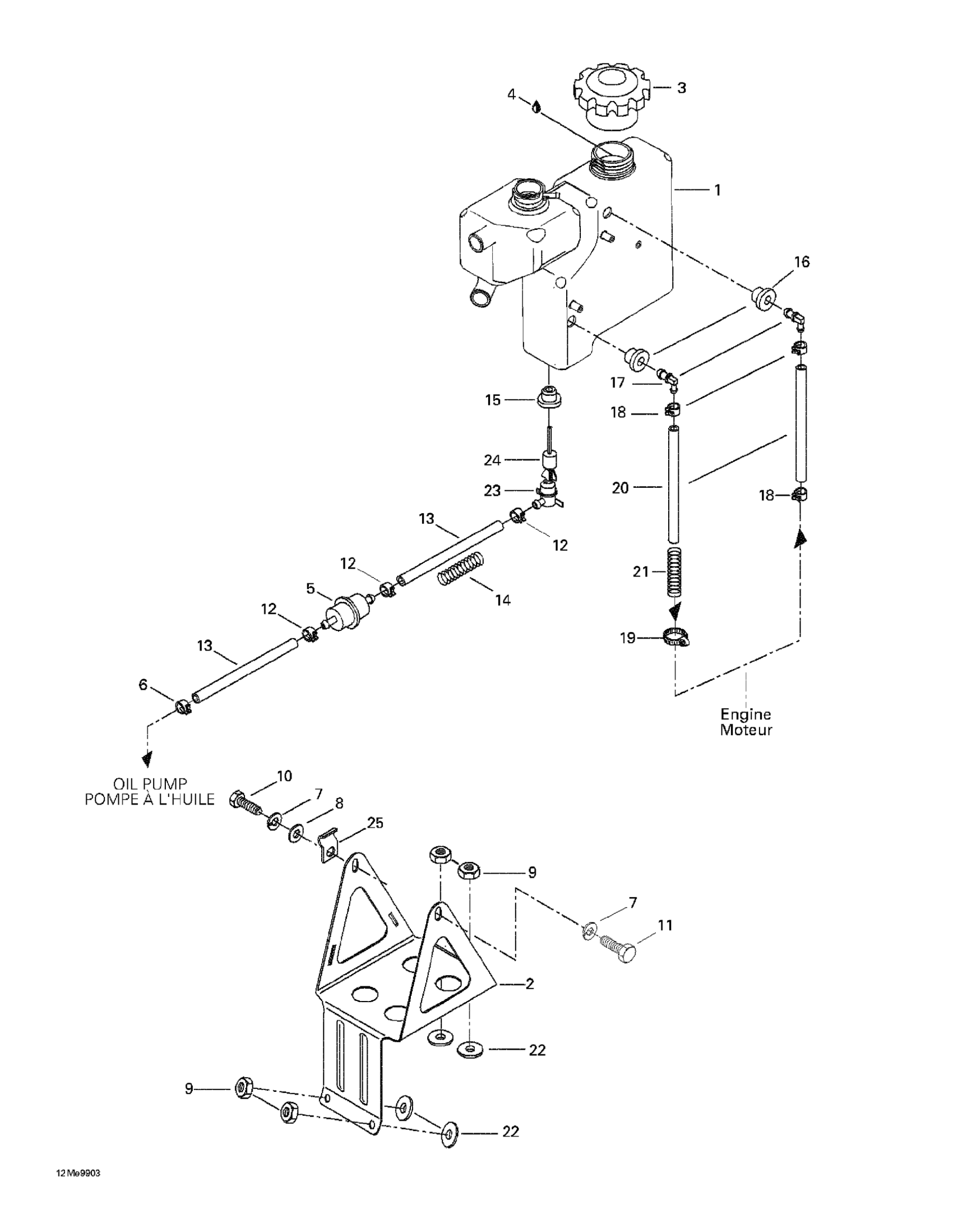

Ski-Doo Grand Touring 500/583, 1999 02- Oil Tank And Support Diagram

Coolant Tank

519000014

Unavailable

Oil Reservoir Support

517278900

Unavailable

CAP - Call your local BRP dealership

519000044

Unavailable

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

Filter

414536500

$4.02

Spring Clamp

414420700

$0.72

Lock Washer M6, Black

234161471

$0.53

Flat Washer

224061121

$0.53

Elastic Stop Nut M6

232561414

$0.55

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

Spring Clamp

414415200

$0.88

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

SPRING_COMPRESSION - Call your local BRP dealership

414940300

Unavailable

Insulating Ring

570023000

$5.61

Grommet | Europe

707800347

$10.49

Elbow Fitting

414523600

$4.86

Spring Clamp

414655700

$0.72

SPRING CLIP - Call your local BRP dealership

408801100

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Spring

415044100

Unavailable

Rubber Spacer

414454400

Unavailable

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

Float

414681900

Unavailable

CLIP - Call your local BRP dealership

415018200

Unavailable
