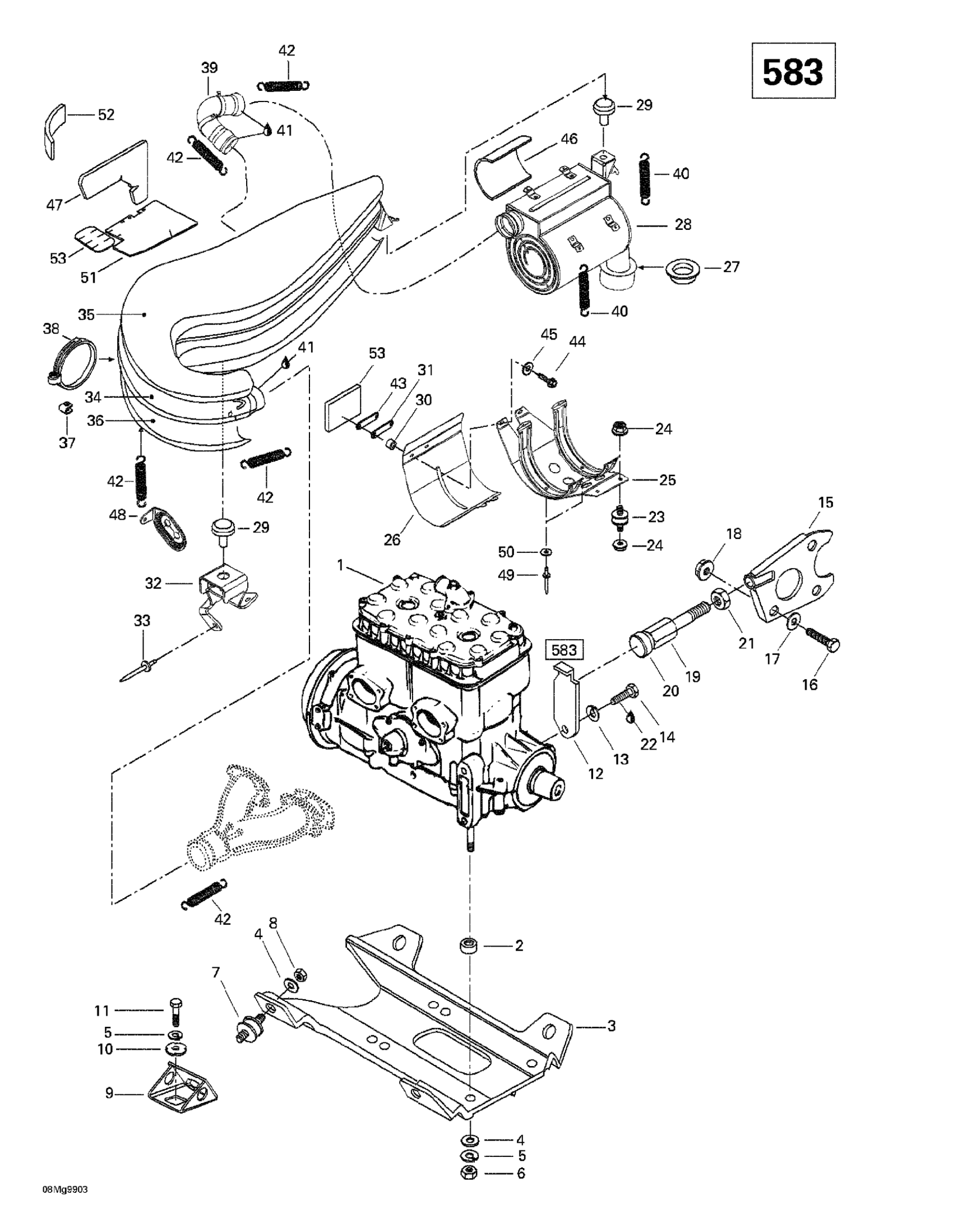

Ski-Doo Grand Touring 500/583, 1999 01- Engine Support And Muffler (583) Diagram

#

Description
Price

1

<<583>> Engine | Formula Deluxe 583.

400509704

Unavailable

2

Spacer

503128100

Unavailable

3

Engine Support

512054400

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.37

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Elastic Locking Nut M10 X 1.5

233601416

$1.69

9

Engine Support

512050900

Unavailable

10

Lock Washer

512056700

$3.17

11

Hex. Screw M10 X 25

207102544

$1.37

12

Stopper Plate | Formula Deluxe 583.

512049100

Unavailable

13

Lock Washer 8 mm

234181401

$0.92

14

Hex. Screw M8 x 16

207181644

$1.15

15

Support Plate

512055600

Unavailable

16

Hex. Screw M8 X 25

207182544

$0.90

17

Flat Washer 8 mm

234081410

$0.83

18

Hex. Elastic Stop Nut M8

232581414

$0.56

19

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

20

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

21

Nut Hexagonal RH.

232026414

$1.48

22

Loctite 271, 10 ml

293800005

$26.99

23

RUBBER MOUNT - Call your local BRP dealership

514052743

Unavailable

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Support Ass'y | Formula Deluxe 583. Formula Deluxe 670.

514044200

Unavailable

26

Heat Deflector | Formula Deluxe 583. Formula Deluxe 670.

514044300

Unavailable

27

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

570027300

Unavailable

28

Muffler | Formula Deluxe 583. Formula Deluxe 670.

514044400

Unavailable

29

Rubber Bumper

514053654

$50.99

30

Rubber Spacer | Formula Deluxe 583. Formula Deluxe 670.

570049300

Unavailable

31

Reinforcement | Formula Deluxe 583. Formula Deluxe 670.

514045200

Unavailable

32

Pipe Support | Formula Deluxe 583. Formula Deluxe 670.

514044500

Unavailable

33

Pop Rivet 3/16"

390906800

$0.93

34

Tuned Pipe Ass'y | Includes 25 - 29. Formula Deluxe 583. Formula Deluxe 670.

514052803

Unavailable

35

Upper Shell | Formula Deluxe 583. Formula Deluxe 670.

514052808

Unavailable

36

Lower Shell | Formula Deluxe 583. Formula Deluxe 670.

514052809

Unavailable

37

Cleat

514046503

Unavailable

38

Norma Clamp

514052924

$14.22

39

Tail Pipe | Formula Deluxe 583. Formula Deluxe 670.

514044700

Unavailable

40

Spring

414851600

Unavailable

41

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

42

Spring

415107100

$6.35

43

Side Bracket

517267100

Unavailable

44

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

45

Flat Washer 6 mm

234061410

$1.36

46

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

47

Reflection Sheet | Formula Deluxe 583. Formula Deluxe 670.

415014900

Unavailable

48

Pipe Bracket | Formula Deluxe 583. Formula Deluxe 670.

514045100

Unavailable

49

Pop Rivet 3/16"

390402200

$0.35

50

Washer

517124300

$0.19

51

Reflection Sheet | Formula Deluxe 583. Formula Deluxe 670.

415049500

Unavailable

52

Reflection Sheet (In Hood) | Formula Deluxe 583. Formula Deluxe 670.

415049100

Unavailable

53

Reflection Plate | Formula Deluxe 583. Formula Deluxe 670.

414706200

Unavailable
