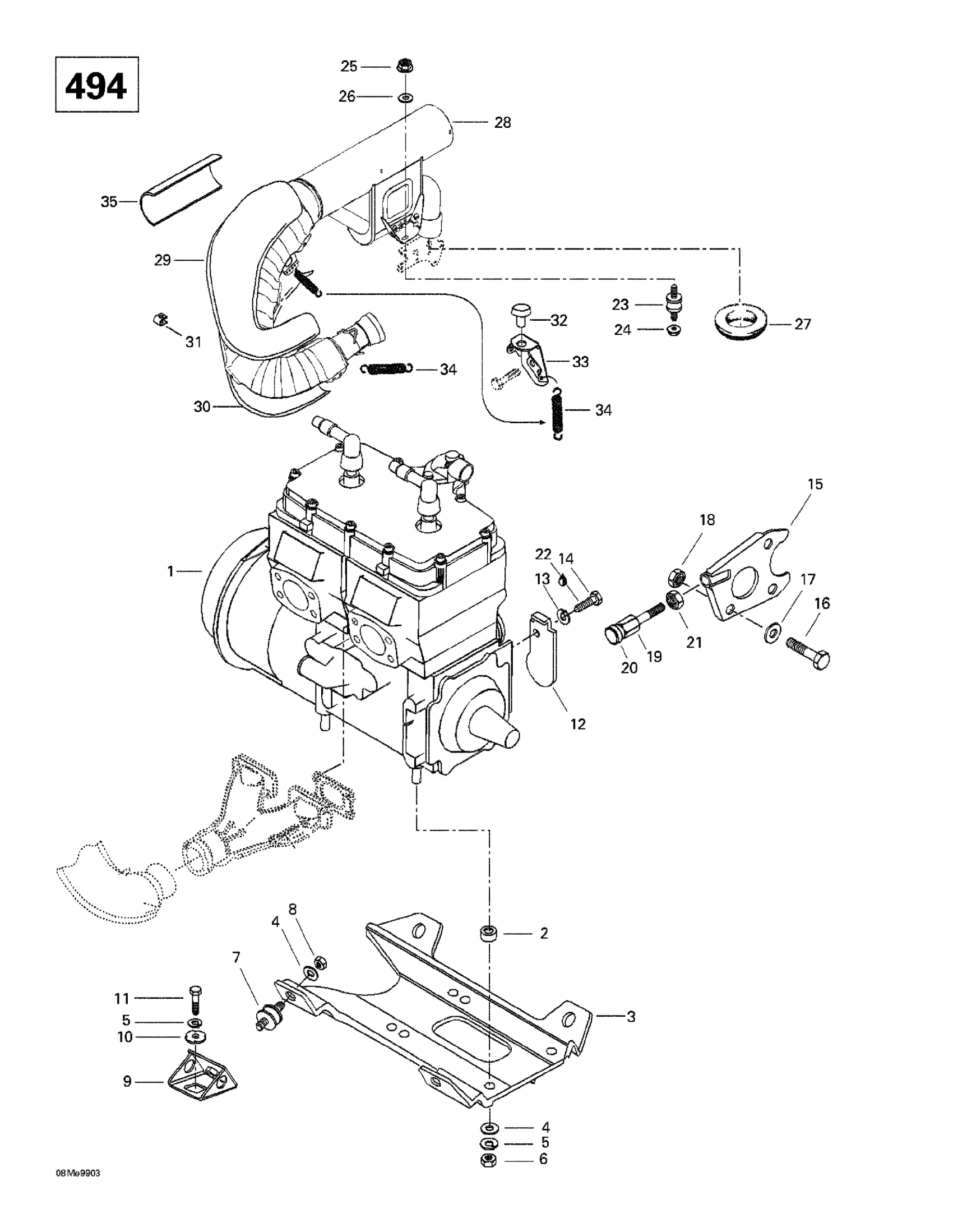

Ski-Doo Grand Touring 500/583, 1999 01- Engine Support And Muffler (494) Diagram

#

Description
Price

1

<<494>> Engine | Formula Deluxe 500 LC.

400409405

Unavailable

2

Spacer

503128100

Unavailable

3

Engine Support

512054400

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.37

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Elastic Locking Nut M10 X 1.5

233601416

$1.69

9

Engine Support

512050900

Unavailable

10

Lock Washer

512056700

$3.17

11

Hex. Screw M10 X 25

207102544

$1.37

12

Stopper Plate

512052900

Unavailable

13

Lock Washer M6, Black

234161471

$0.53

14

Hex. Screw M6 X 16

207161644

$0.74

15

Support Plate

512055600

Unavailable

16

Hex. Screw M8 X 25

207182544

$0.90

17

Flat Washer 8 mm

234081410

$0.83

18

Hex. Elastic Stop Nut M8

232581414

$0.56

19

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

20

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

21

Nut Hexagonal RH.

232026414

$1.48

22

Loctite 271, 10 ml

293800005

$26.99

23

RUBBER MOUNT - Call your local BRP dealership

514052743

Unavailable

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

Flat Washer 8 mm

234082410

$1.47

27

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

28

Muffler | Includes 23 - 26.

514048400

Unavailable

29

Upper Shell

514044020

Unavailable

30

Lower Shell

514048504

Unavailable

31

Cleat

514046503

Unavailable

32

Rubber Bumber

514048200

Unavailable

33

Muffler Support

514048600

Unavailable

34

Spring

415107100

$6.35

35

Reflection Sheet | Formula DLX 500 F.

415064900

Unavailable
