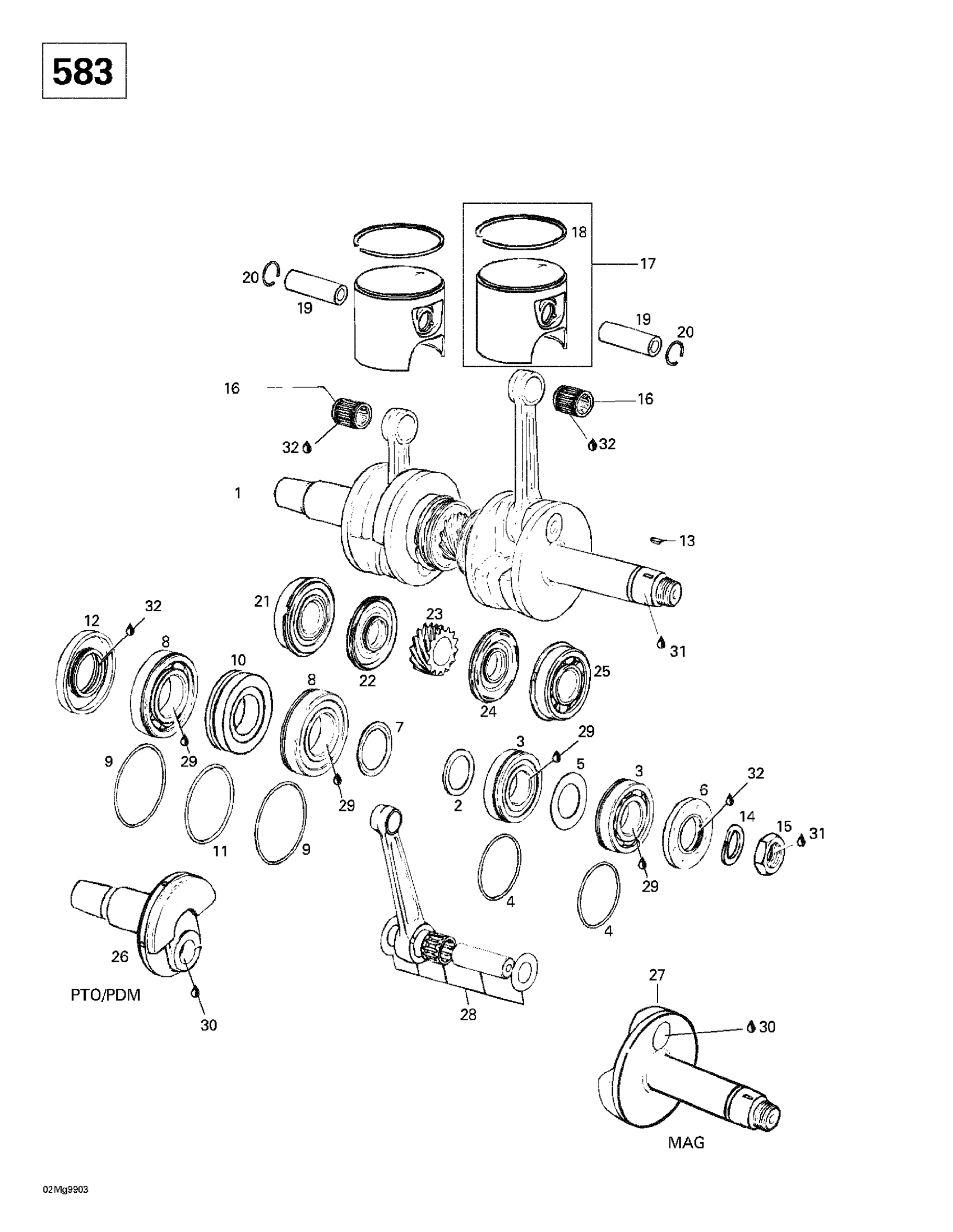

Ski-Doo Grand Touring 500/583, 1999 01- Crankshaft And Pistons (583) Diagram

#

Description
Price

1

Crankshaft | Formula Deluxe 583.

420887355

Unavailable

2

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

3

Bearing_Ball | Formula Deluxe 583. This part replaces 420832480.

420832481

$41.49

4

O-Ring | Formula Deluxe 583.

420830355

Unavailable

5

Stop Shim (30.4/1) | Formula Deluxe 583.

420827715

Unavailable

6

Oil Seal This part replaces 290830749.

420830749

$18.54

7

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

8

Bearing_Ball This part replaces 290832231.

420832584

$41.49

9

O-Ring, 64 mm X 2 mm

293300022

$12.72

10

Labyrinth Bushing | Formula Deluxe 583.

420830292

Unavailable

11

O-RING - Call your local BRP dealership

420830370

Unavailable

12

Oil Seal This part replaces 290831952.

420831952

$18.01

13

Woodruff Key

420246055

$2.43

14

Lock Washer, 22 mm

420945759

$1.90

15

Hex. Nut, M22 X 1.5

420842239

$17.53

16

Needle Bearing

420932904

$15.89

17

Piston Ass'y (75.89 mm) | Includes 17 - 18. Formula Deluxe 583.

420888080

Unavailable

PISTON ASS'Y (76.14 MM) - Call your local BRP dealership | Formula Deluxe 583.

420888081

Unavailable

18

Semi-Trapez Ring 76.0 mm | Formula Deluxe 583.

420815015

Unavailable

Semi-Trapez Ring 76.25 mm | Formula Deluxe 583.

420815016

Unavailable

19

PISTON PIN - Call your local BRP dealership

420916136

Unavailable

20

Piston Circlip

420945735

$4.46

21

Bearing_Ball | Formula Deluxe 583. This part replaces 420832480.

420832481

$41.49

22

Oil Seal

420831990

$20.49

23

Central Gear (14 Teeth) | Formula Deluxe 583.

420935746

Unavailable

24

Oil Seal | Formula Deluxe 583.

420831355

Unavailable

25

Ball Bearing 6305 | Formula Deluxe 583.

420832092

Unavailable

26

Crankshaft Repair Kit (P.T.O. Side) | Formula Deluxe 583.

420818030

Unavailable

27

Crankshaft Repair Kit (MAG Side) | Formula Deluxe 583.

420818068

Unavailable

28

Crankshaft Rod Repair Kit | Formula Deluxe 583.

420996626

Unavailable

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Sealant Loctite 648

219703000

$45.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Dow Corning 111, 150 g

413707000

$59.99
