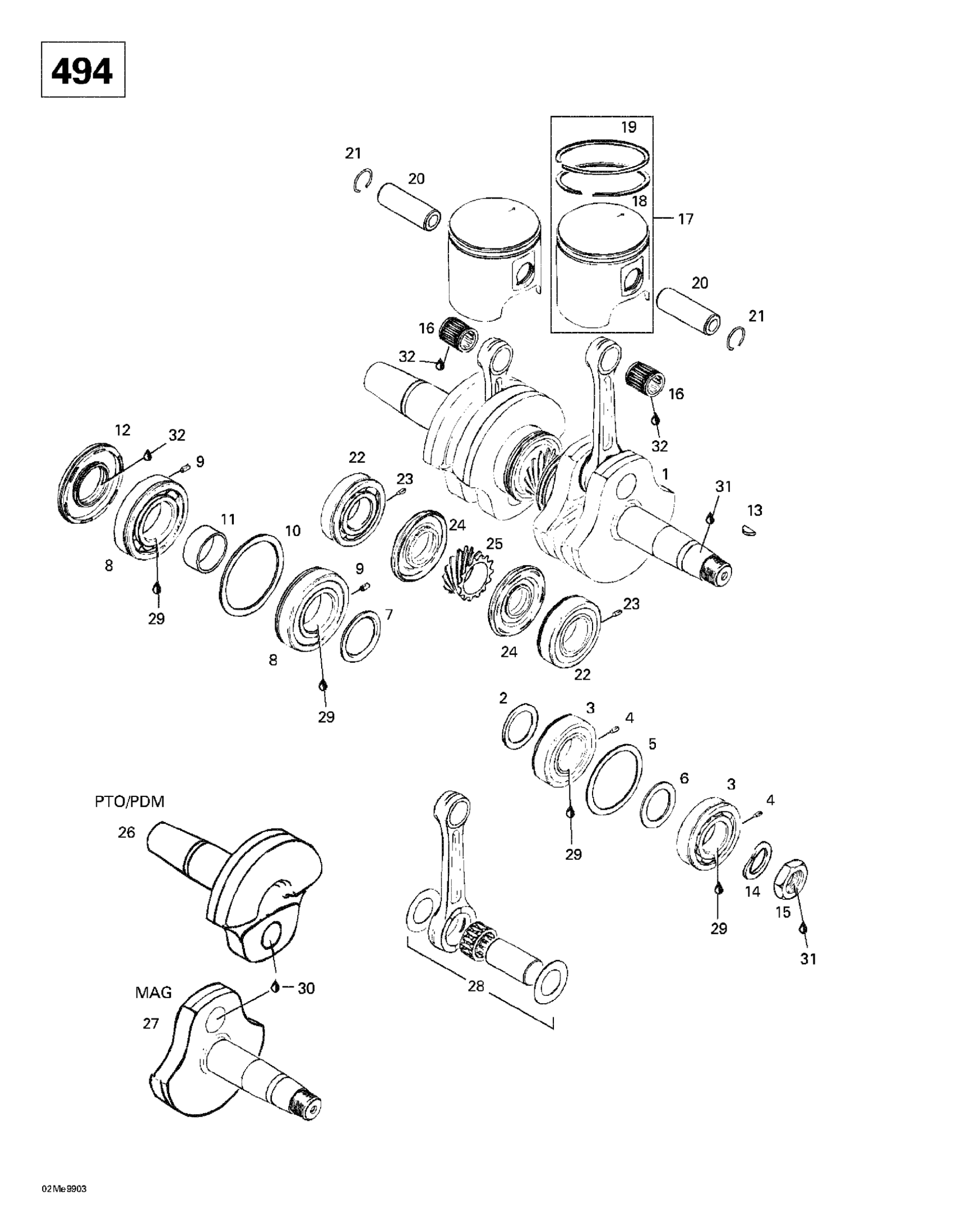

Ski-Doo Grand Touring 500/583, 1999 01- Crankshaft And Pistons (494) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 15. Formula Deluxe 500 LC.

420886932

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

6

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

7

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

8

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

9

Dowel Pin

420929972

Unavailable

10

Retaining Disk

420927710

$7.41

11

Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.

420847684

Unavailable

12

Oil Seal This part replaces 290831952.

420831952

$18.01

13

Woodruff Key

420246015

$3.17

14

Lock Washer, 22 mm

420945759

$1.90

15

Hex. Nut, M22 X 1.5

420842239

$17.53

16

Needle Bearing

420832438

Unavailable

17

Piston Ass'y (2 rings 69.39 mm) | Includes 16 - 18.

420887553

Unavailable

Oversize Pist. Ass'y (2 rings 69.64 mm)

420887554

Unavailable

18

Rectangular Ring 69.5 mm

420915985

Unavailable

OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership

420915986

Unavailable

19

Semi-trapez Ring 69.5 mm

420815045

Unavailable

Oversize Semi-trapez Ring 69.75 mm

420815046

Unavailable

20

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

21

Piston Circlip

420945735

$4.46

22

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

23

Dowel Pin

420929972

Unavailable

24

Oil Seal

420831990

$20.49

25

Central Gear 14 Teeth

420935748

Unavailable

26

Crankshaft (PTO side)

420818660

Unavailable

27

Crankshaft (MAG side)

420818690

Unavailable

28

Crankshaft Repair Kit (PTO side)

420886955

Unavailable

CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership

420886956

Unavailable

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Sealant Loctite 648

219703000

$45.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Dow Corning 111, 150 g

413707000

$59.99
