Description

Price

1

Drive Pulley Ass'y | Includes 1 - 23. Formula 500. Formula 500 Deluxe.

417221800

Unavailable

Drive Pulley Ass'y | Formula Z 583. Formula 583 Deluxe.

417221500

Unavailable

1

Fixed Flange

417222411

$539.99

Inner Half Ass'y | Formula Z 583. Formula 583 Deluxe.

417003502

Unavailable

2

SLINDING FLANGE - Call your local BRP dealership | Includes 2 - 3. Formula Z 500.

417010000

Unavailable

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

3

Bushing

417004201

$25.99

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

$11.52

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

8

Flat Washer 6 mm

234061410

$1.36

9

Elastic Stop Nut M6

232561414

$0.55

10

Spring Seat

417005000

Unavailable

11

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

12

Bushing

417004501

$24.99

13

Allen Screw M6 x 40

222964066

Unavailable

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

Gouvernor Cup Ass'y

417004700

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$4.09

20

Hex. Flange Nut M6

233061414

$1.68

21

Spring

417005700

$4.76

22

O-Ring

732401030

$0.98

23

Slider Shoe This part replaces 420460045.

417223021

$5.90

24

Roller

417222947

$21.99

25

Stopper Washer

417004302

$15.90

26

Pin

417004309

$25.99

27

Cotter Pin

250400060

$2.00

28

Spring, Blue/green

414817700

$46.49

Spring (Red/Orange)

415015200

$52.99

29

Ramp (228)

417005228

Unavailable

Ramp (285) | Grand Touring 583.

417005285

Unavailable

30

Puller Inner Half

529007900

$56.99

31

Drive Belt

414860700

$104.99

32

Spring Washer 14 mm

250200006

$6.99

Conical Spring Washer M12

250200005

$3.27

33

Drive Pulley Bolt

417120000

$65.49

Bolt, Drive Pulley | Formula Deluxe 583.

417120100

Unavailable

34

Loctite 609, 10 ml

413703100

$26.99

35

Clutch Repair Kit

417006100

$189.99

36

Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).

415043100

Unavailable

37

Hex. Screw M8 X 16

236281684

$4.12

38

Loctite 271, 10 ml

293800005

$26.99

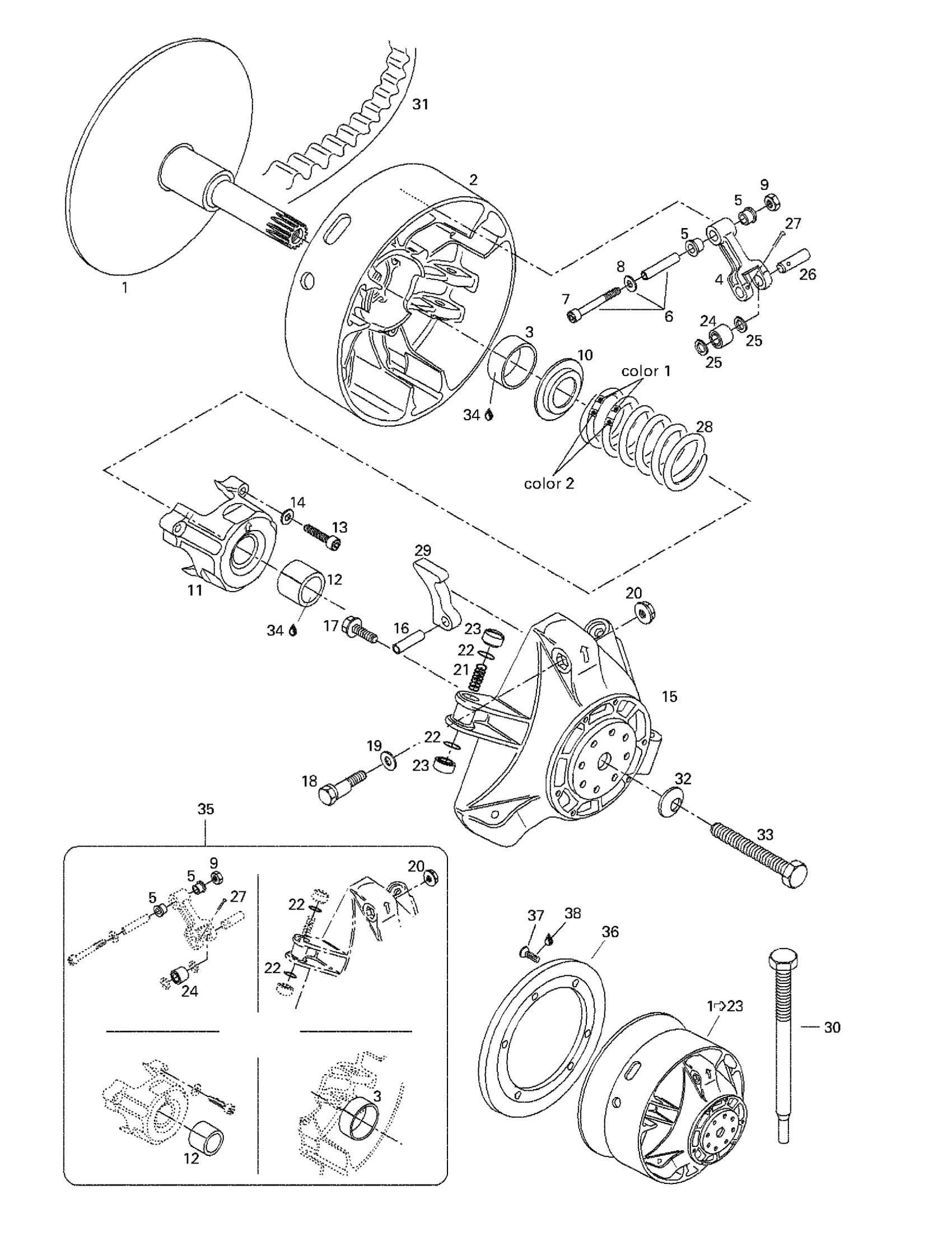

Ski-Doo Grand Touring 500/583, 1998 05- Drive Pulley Diagram
