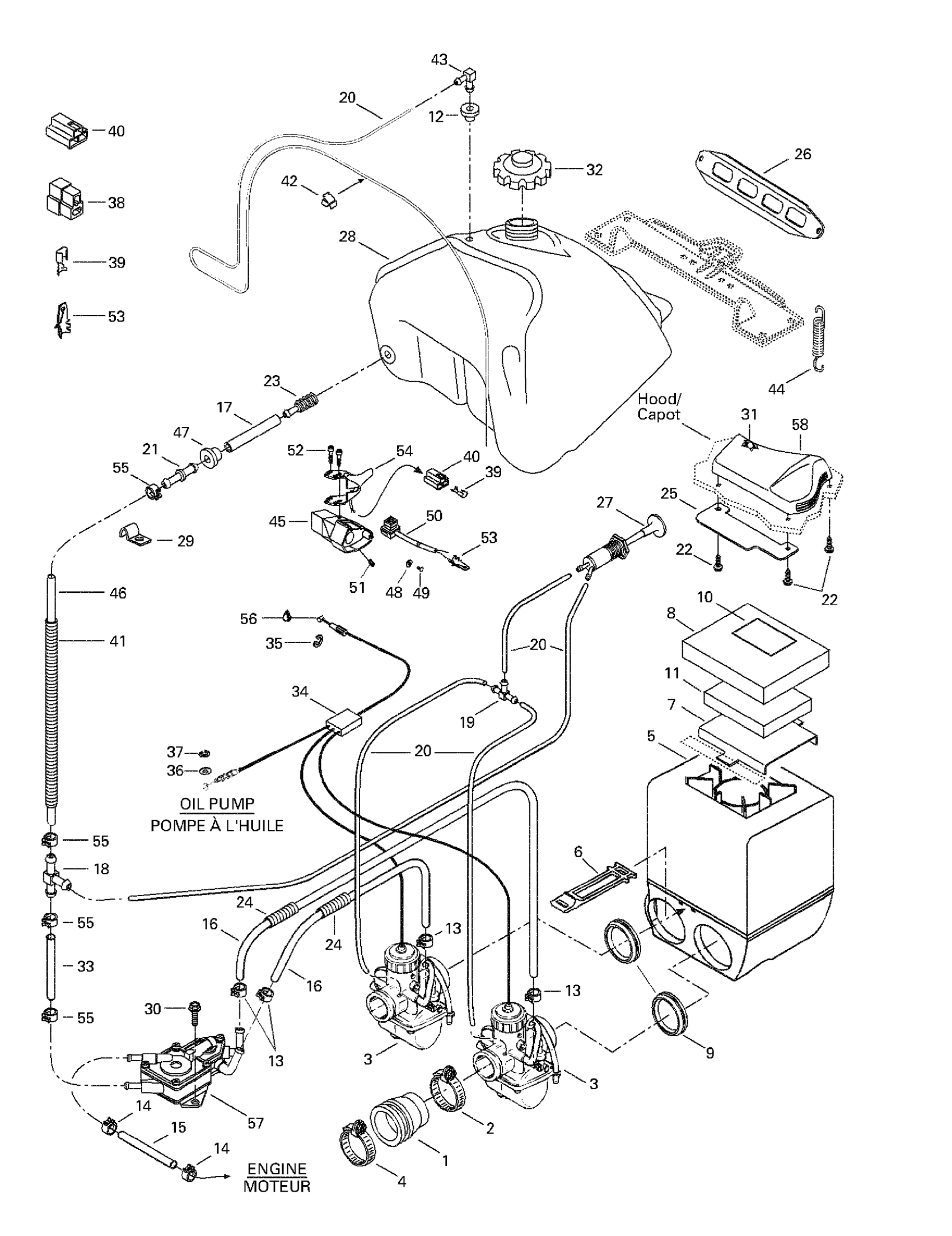

Ski-Doo Grand Touring 500/583, 1998 02- Fuel System Diagram

#

Description
Price

1

Adaptor Caburetor (38 mm)

570048100

Unavailable

2

Clamp (50 mm)

415038400

Unavailable

3

Carburetor VM 38-382 (PTO) | Includes 1 - 32. Grand Touring 500.

403134200

Unavailable

Carburetor VM 38-386 (PTO) | Includes 1 - 32. Formula 583 Deluxe.

403135900

Unavailable

Carburetor VM 38-383 (MAG) | Grand Touring 500.

403134300

Unavailable

Carburetor VM 38-387 (MAG) | Formula 583 Deluxe.

403136000

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass'y | Includes 5 - 11. Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.

580667103

Unavailable

6

LATCH - Call your local BRP dealership

570069700

Unavailable

7

Grill Intake

517283900

Unavailable

8

Exterior Foam

415105900

Unavailable

9

Intake Adaptor VM 38

570048900

Unavailable

10

Warning Decal

414161500

Unavailable

11

Air Filter

415014800

$12.49

12

Grommet

709200285

$9.69

13

Spring Clamp

414420700

$0.72

14

Spring Clamp

414415200

$0.88

15

Hose

219704549

$50.99

16

Hose

415079200

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

Hose

415005700

$11.58

18

T-fitting

414222500

$1.69

T-Fitting

415119300

$3.17

19

T-Fitting

414222400

$1.69

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

21

Male Connector

414518500

$4.23

Male Connector

414872700

$1.90

22

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

23

Fuel Filter

414865700

$10.99

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

24

Tubing 10 MM 1000MM Long

219704407

$2.79

25

Deflector

517298800

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$34.99

28

Fuel Tank

572101700

Unavailable

29

CLIP - Call your local BRP dealership

415018200

Unavailable

30

Hex. Screw M6 x 12

732601120

Unavailable

31

Air Filter

414972600

$63.99

32

Fuel Tank Cap

513033025

$24.49

33

Polyurethane Hose 10000Mm Long

219704410

$56.99

Formed Tube | Formula Deluxe 583. Formula Deluxe 670.

415111400

Unavailable

34

Throttle Cable and Housing (38 mm)

414968801

Unavailable

35

Circlip

414274500

$0.90

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

Circlip

414753500

$0.71

38

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

39

Female Terminal PACKARD

561503200

Unavailable

40

Female Terminal Housing (3 circuits)

409008500

Unavailable

41

Tubing 10 MM 1000MM Long

219704407

$2.79

Tubing 16 Mm 1000Mm Long

219704408

$7.49

42

Clip

414227300

$1.67

43

Male Connector

414814100

$2.22

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

46

Polyurethane Hose 10000Mm Long

219704410

$56.99

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

47

Grommet

570045500

$6.69

Grommet | Europe

707800347

$10.49

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

51

Socket Set Screw M8 X 10

414440800

$4.12

52

Flange Screw

732601143

$4.12

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Handle Ass'y

512059348

$93.99

55

Spring Clamp

414554800

$0.88

Spring Clamp

414655700

$0.72

56

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

57

FUEL PUMP ASS'Y - Call your local BRP dealership

403801100

Unavailable

Fuel Pump Ass'y | Formula Z 583. Formula 583 Deluxe.

403801200

Unavailable

58

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable
