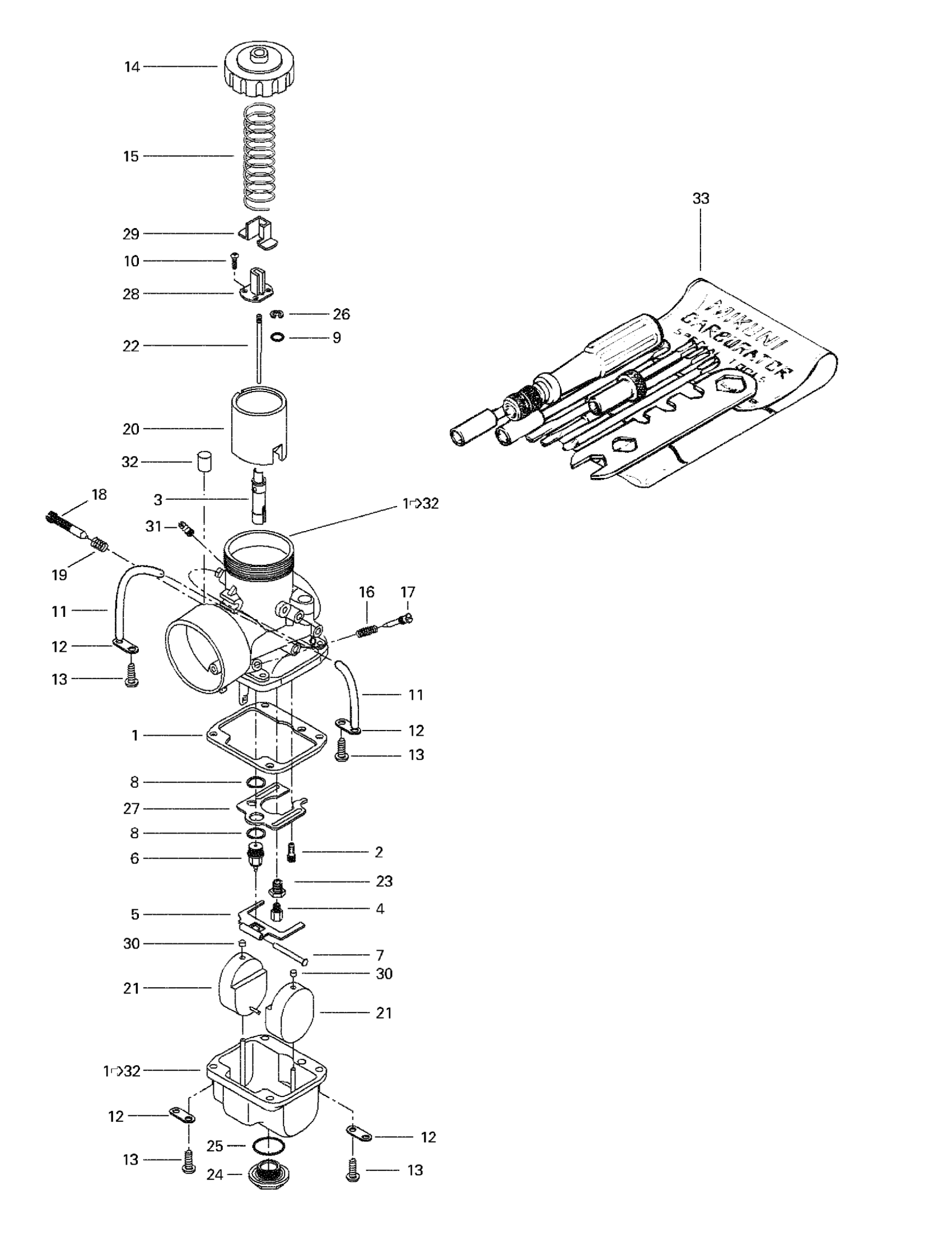

Ski-Doo Grand Touring 500/583, 1998 02- Carburetors Diagram

#

Description
Price

1

Carburetor VM 38-382 (PTO) | Includes 1 - 32. Grand Touring 500.

403134200

Unavailable

Carburetor VM 38-383 (MAG) | Grand Touring 500.

403134300

Unavailable

1

Carburetor VM 38-386 (PTO) | Includes 1 - 32. Formula 583 Deluxe.

403135900

Unavailable

Carburetor VM 38-387 (MAG) | Formula 583 Deluxe.

403136000

Unavailable

1

GASKET - Call your local BRP dealership

404104700

Unavailable

2

PILOT JET 50 - Call your local BRP dealership

404109500

Unavailable

3

Needle Jet NJ-480-Q3

404160900

Unavailable

Needle Jet NJ-480-P7 | Formula Deluxe 583.

404156900

Unavailable

4

Main Jet MJ 320 (PTO) | Grand Touring 500.

404101300

$8.36

Main Jet 260

404100600

$9.06

Main Jet MJ 270 | Formula III 700 R.

404100400

$5.21

Main Jet 290 This part replaces 404162139.

404101100

$11.13

5

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

6

Needle Valve 1.5

404147400

$42.49

7

Lever Pin

404103300

$6.27

8

Seat Washer

404101600

$3.29

9

Packing

404117000

$3.29

10

Screw With Washer

404121300

$4.14

11

Hose | Grand Touring SE.

404109800

Unavailable

12

PLATE - Call your local BRP dealership

404103000

Unavailable

13

Screw With Lock Washer

404102000

$3.18

14

COVER - Call your local BRP dealership

404105100

Unavailable

15

Spring

404154800

$23.99

16

SPRING - Call your local BRP dealership

404139800

Unavailable

17

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

18

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

19

Spring

404101700

$4.14

20

Throttle Valve 2.5

404161600

Unavailable

21

FLOAT - Call your local BRP dealership

404105400

Unavailable

22

Jet Needle J8-6DHY48 | Summit 500.

404161500

Unavailable

Jet Needle J8 6DEY4 | Formula Deluxe 583.

404159900

Unavailable

23

Guide Screw

404105500

$31.99

24

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

25

O-RING - Call your local BRP dealership

404101500

Unavailable

26

E-Ring

404152400

$7.27

27

Not Available As Spare Part - Friction Washer

Unavailable

28

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

29

Cover

404122100

$19.49

30

Cap

404105800

$6.38

31

Nipple

404153400

$12.16

32

Filter | Formula Deluxe 380.

404158900

Unavailable

33

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

34

High Altitude Kit, (Not Shown) | Grand Touring 500.

861763300

Unavailable

High Altitude Kit (Not Shown) | Grand Touring 583.

861763200

Unavailable
