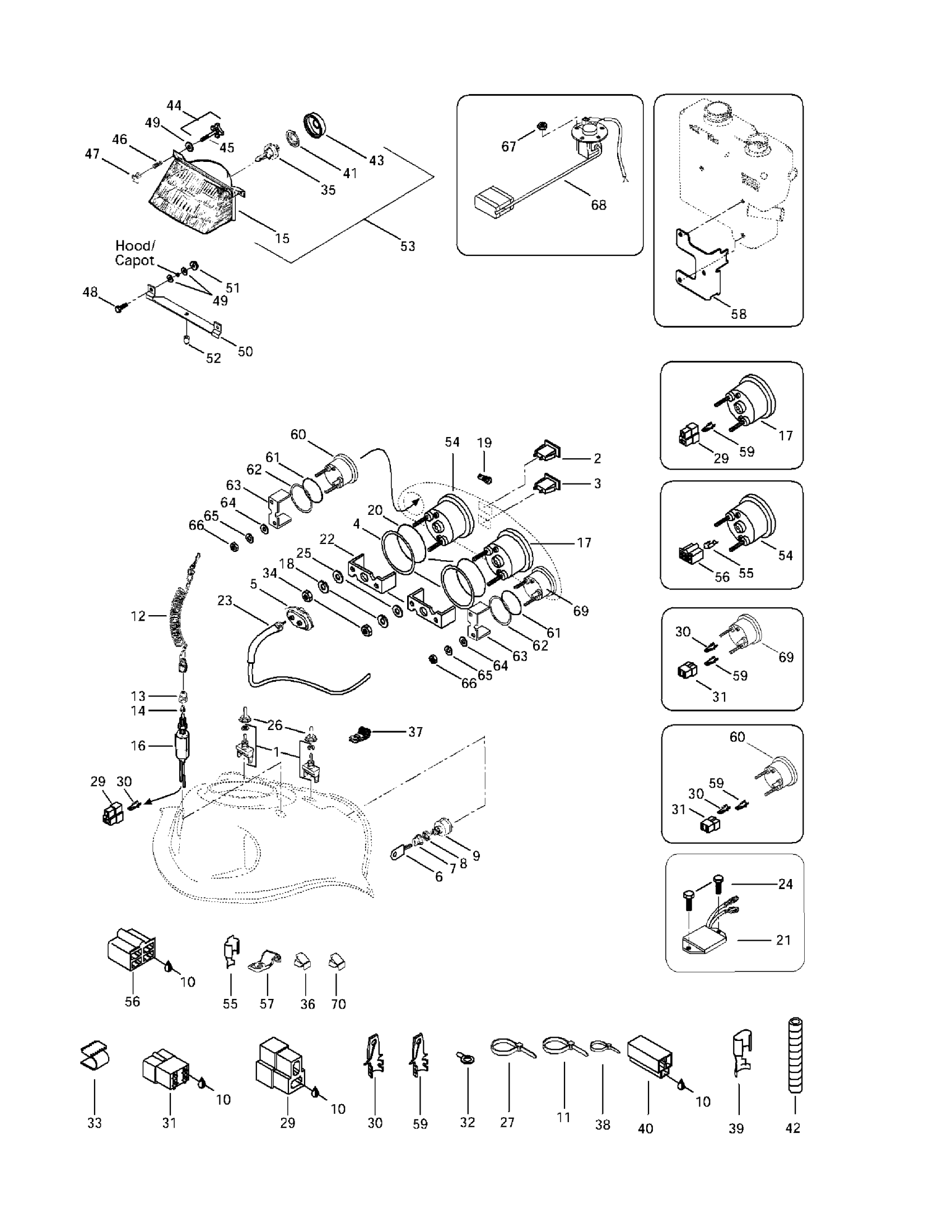

Ski-Doo Grand Touring 500/583, 1997 10- Electrical System Diagram

Switch (Heating Grip) | FREERIDE

410107300

$35.99

Pilot Lamp (Red)

410109500

Unavailable

Pilot Lamp (Blue)

410109600

Unavailable

Washer

517258500

Unavailable

Drive Angle | Formula S.

572022300

Unavailable

Blank Key

415129350

$26.49

Switch Boot

570013700

$11.49

FACE NUT - Call your local BRP dealership

410112100

Unavailable

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

Tie Wrap 368 mm

293750008

$1.04

Cap Ass'y

515178283

$38.99

Switch Nut

515145900

$12.12

Plunger Cap

570151100

$9.85

Headlamp

410608900

Unavailable

Brake Switch

515175653

$19.49

Speedometer (KMH) | Formula Z.

415034000

Unavailable

Speedometer (MH) | Formula Z.

415034100

Unavailable

Lock Washer

414806700

Unavailable

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

O-Ring

414807100

Unavailable

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515163900

Unavailable

Case Holder

414806500

Unavailable

Speedometer Cable

414761400

Unavailable

Hexagonal Head Screw

210262050

$2.11

Flat Washer

517225900

$0.18

Switch Cover

515175281

$15.99

Tie-Rap 180 mm

414115200

$0.11

Resistance

515175241

$17.99

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable

Nut

414806900

Unavailable

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Clip

414227300

$1.67

Open Clamp

414176000

$1.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Female Terminal

561503100

$2.41

Female Housing

409204300

Unavailable

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

Was 409901800 Tubing (13 mm)

219704400

$14.49

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

Adjuster Screw Ass'y | Includes 44 - 45.

415006100

Unavailable

Screw M4 x 40

732603004

Unavailable

Spring

517168600

$7.39

Projector Nut

572078600

Unavailable

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

Headlamp Support

517218500

Unavailable

Hex. Flange Elastic Nut M5

233251414

$1.04

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 1 - 1E.

410608800

Unavailable

Tachometer | Formula Z.

415034200

Unavailable

Female Terminal PACKARD

561503200

Unavailable

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

CLIP - Call your local BRP dealership

415018200

Unavailable

Support Cable

517281800

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

Fuel Gauge | Formula Z.

415042900

Unavailable

O-RING - Call your local BRP dealership

414807200

Unavailable

WASHER - Call your local BRP dealership

517258600

Unavailable

Case Holder | SE Models

414806600

Unavailable

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Lock Washer | SE Models

414833700

Unavailable

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

Elastic Stop Nut M5

232551414

$0.87

Fuel Sender Ass'y | Formula Z.

580651100

Unavailable

Temperature Gauge | Formula Z.

415042800

Unavailable

Clip

414227300

$1.67

Fuse - Fuel Sender Ass'y (not Shown)

410113510

Unavailable
