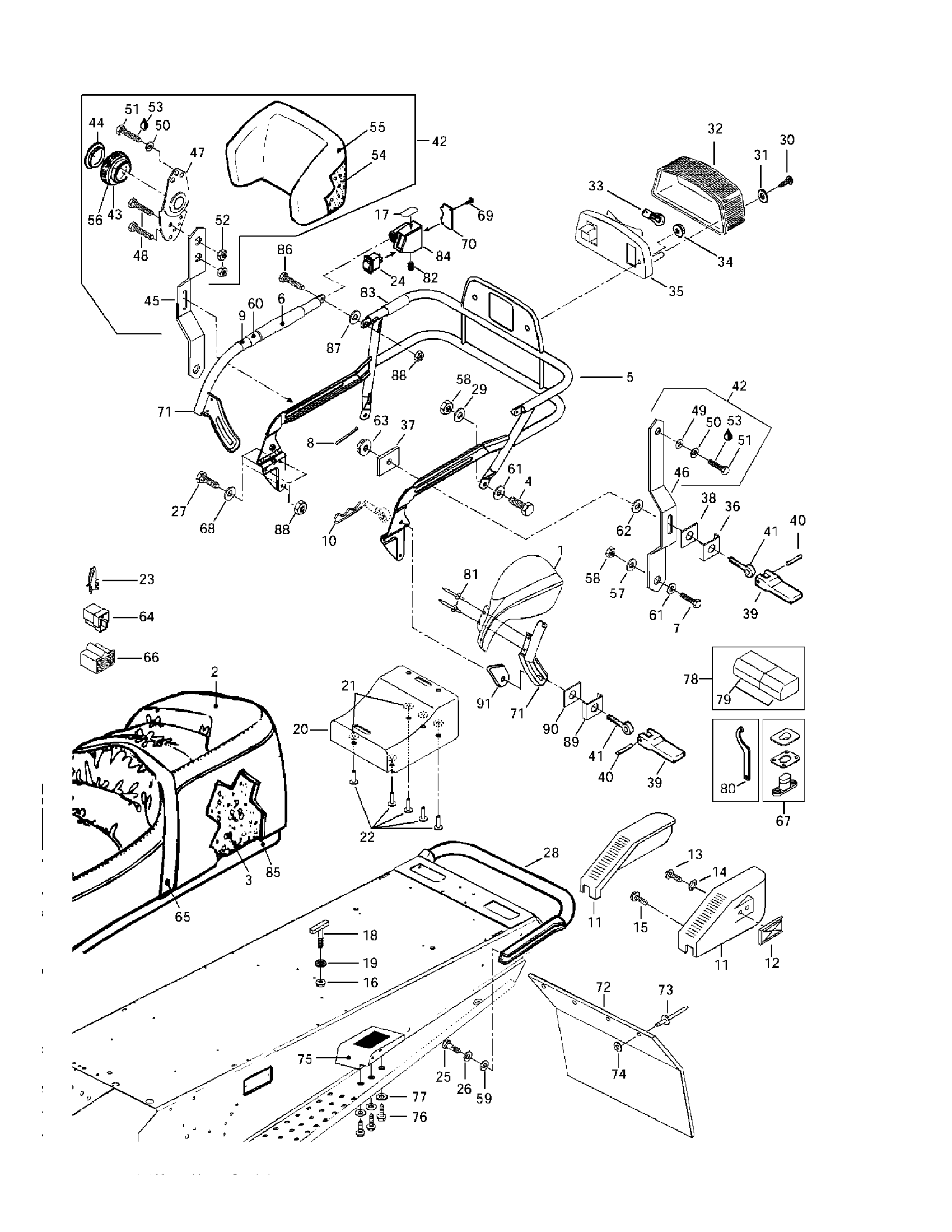

Ski-Doo Grand Touring 500/583, 1997 09- Seat And Accessories Diagram

#

Description
Price

1

RH Protector

572089400

Unavailable

LH Protector

572089500

Unavailable

2

Seat Cover

415041903

Unavailable

3

Foam Seat

415041902

Unavailable

4

Hex. Screw M8 x 20

732601186

Unavailable

5

Rack Ass'y

517286500

Unavailable

6

LH Grip, 370 mm

415050200

Unavailable

RH Grip, 250 mm

415050300

Unavailable

7

Screw M8 x 25

732601175

Unavailable

8

Hair Pin

414108300

Unavailable

9

Reflective Sheet

414988700

Unavailable

10

Hair Pin

414108300

Unavailable

11

RH Rear Moulding Ass'y | Includes 11 - 14.

580651300

Unavailable

LH Rear Moulding Ass'y

580651400

Unavailable

12

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

13

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

14

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

15

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

18

«T» Bolt

732601221

Unavailable

19

Push Nut

732610072

$2.19

20

Rear Trunk | GT 700.

572051200

Unavailable

21

Flat Washer

517225900

$0.18

22

Pop Rivet 3/16"

390906800

$0.93

23

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

24

Rocker Switch

410108500

Unavailable

25

Hex. Screw M8 X 20

207182044

$0.74

26

Lock Washer 8 mm

234181401

$0.92

27

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

28

Rear Bumper | Includes 32 to 33

517272510

Unavailable

29

Yellow, Washer

503183200

$3.19

30

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

31

Washer - Call your local BRP dealership

414516400

Unavailable

32

Lens

414513700

$28.99

33

Bulb

520000758

$9.10

34

Hex. Flange Elastic Nut M5

233251414

$1.04

35

Taillamp Housing

415041200

Unavailable

36

Guide

517257300

Unavailable

37

Rubber Shim

570027400

Unavailable

38

SPACER - Call your local BRP dealership

517251300

Unavailable

39

Lock Lever

572038200

Unavailable

40

Pin

414821400

$7.55

41

Eye Bolt

517257600

Unavailable

42

Backrest Ass'y | Includes 42 - 56.

415044500

Unavailable

43

TILLER HANDLE - Call your local BRP dealership

414820900

Unavailable

44

Cap

414821000

Unavailable

45

RH Arm

517287600

Unavailable

46

LH Arm

517289800

Unavailable

47

Recliner

414813300

Unavailable

48

Hex. Screw M8 X 25

207182544

$0.90

49

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

50

Lock Washer 8 mm

234181401

$0.92

51

Hex. Screw M8 X 20

207182044

$0.74

52

Hex. Elastic Stop Nut M8

232581414

$0.56

53

Loctite 243, 10 ml

293800060

$21.49

54

Backrest Foam

414821200

Unavailable

55

Backrest Cover

415044503

Unavailable

56

STRIP - Call your local BRP dealership

415015500

Unavailable

57

Washer

414819600

Unavailable

58

Hex. Elastic Stop Nut M8

232581414

$0.56

59

Flat Washer 8 mm

234081410

$0.83

60

Heating Grip

515175573

$63.99

61

Conical Spring Washer M8

234281474

$1.48

62

Washer

414819500

Unavailable

63

Nut

517250000

Unavailable

64

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

65

Holding Strap

414985400

Unavailable

66

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

67

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

68

Washer

517293700

Unavailable

69

Screw

732601255

Unavailable

70

Plate

572089300

Unavailable

71

RH Arm (Rack)

517286600

Unavailable

LH Arm (Rack)

517286700

Unavailable

72

Snow Guard (Fir Green)

572084700

Unavailable

73

Pop Rivet 3/16"

293150100

$1.09

74

Flat Washer

517225900

$0.18

75

RH Footrest | Sport GT / SE GT

572088700

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

76

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

77

Flat Washer

224061121

$0.53

78

Tool Kit

529027900

Unavailable

79

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

80

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable

81

Rivet

390406000

Unavailable

82

Screw Set M8 x 6

223580606

Unavailable

83

Grip, Short, 60 mm

415050400

Unavailable

84

Switch Housing

572089200

Unavailable

85

Sub-Seat

572086200

Unavailable

86

Hex. Screw M6 X 16

207161644

$0.74

87

Flat Washer 6 mm

234062100

$1.26

88

Nut M6

228561065

Unavailable

89

Guide

517290000

Unavailable

90

Outer Spacer

570063800

Unavailable

91

Spacer Block

572088900

Unavailable
