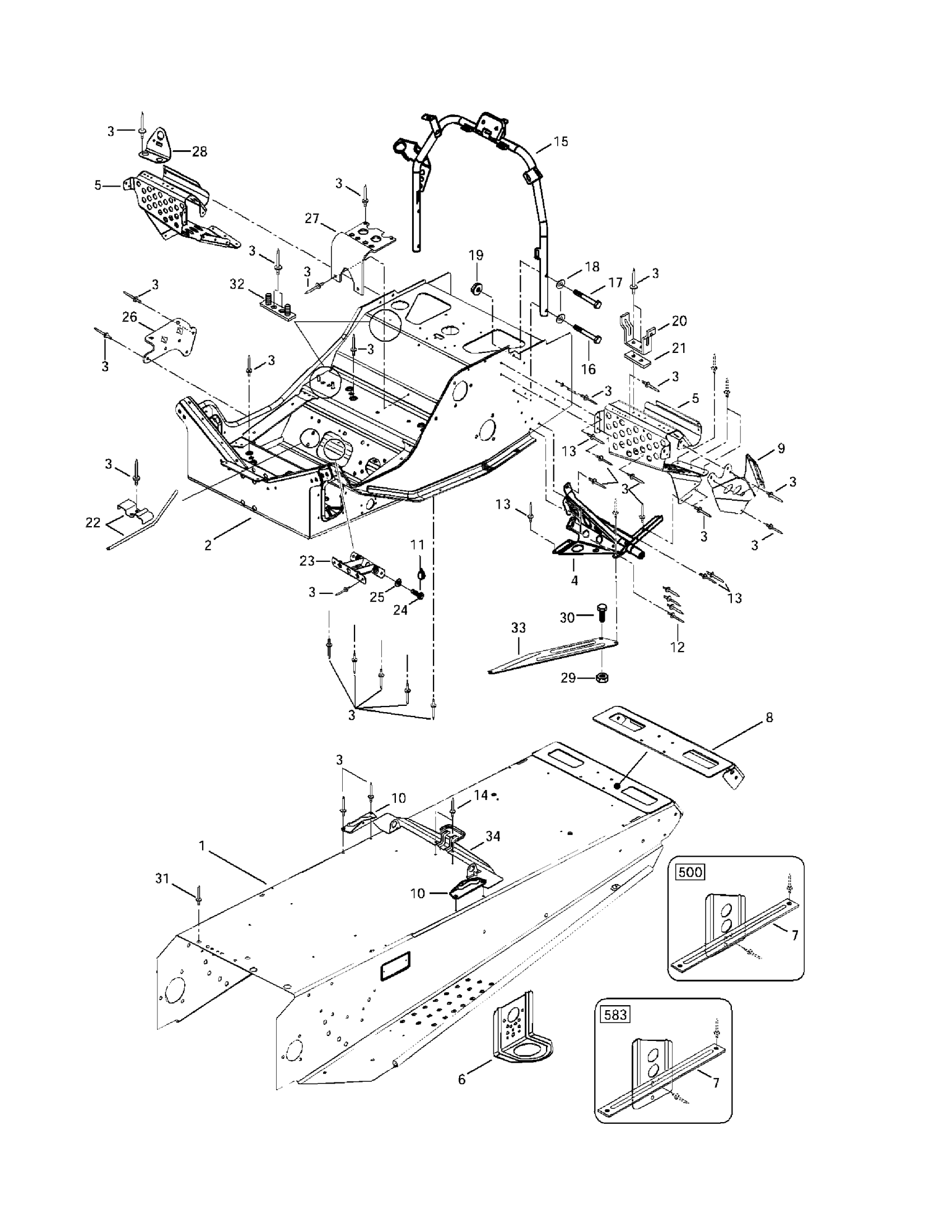

Ski-Doo Grand Touring 500/583, 1997 09- Frame And Accessories Diagram

#

Description
Price

1

Tunnel | Grand Touring 500.

518316810

Unavailable

Tunnel | Grand Touring 583.

518316814

Unavailable

2

Front Member | Formula 500. Formula 500 Deluxe. Formula 583.

518316242

Unavailable

Front Member | Grand Touring 583.

518316244

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

LH Support

518316702

Unavailable

RH Support

518316703

Unavailable

5

RH Front Footrest

518313804

Unavailable

LH Front Footrest

518313805

Unavailable

6

Front Bracket

518312910

Unavailable

7

LH Rear Bracket | Grand Touring 500.

518316740

Unavailable

RH Rear Bracket | Grand Touring 500.

518316741

Unavailable

LH Rear Bracket | Formula III-LT.

518316733

Unavailable

RH Rear Bracket | Formula III-LT.

518316734

Unavailable

8

Cap-End

518308717

Unavailable

9

Upper Plate L.H

518308714

Unavailable

Upper Plate R.H

518308715

Unavailable

10

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

11

Loctite 271, 10 ml

293800005

$26.99

12

Avex Rivet

390909200

$0.30

13

Avex Rivet

390909100

$0.30

14

Pop Rivet 3/16"

390402400

$0.35

15

Handle Steering Support

518309200

Unavailable

16

Hex. Screw M6 X 40

207064044

$1.48

17

Hex. Flange Screw M6 X 35

207063544

$1.37

18

Flat Washer 6 mm

234061410

$1.36

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Belt Guard Bracket

518202100

$17.49

21

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

22

Guide Rope

518313700

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.74

25

Lock Washer 8 mm

234181401

$0.92

26

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Valve Bracket | MX Z 670 HO.

518310206

Unavailable

29

Hex. Flange Elastic Nut M5

233251414

$1.04

30

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

31

Pop Rivet 3/16"

390402300

$0.75

32

Support Plate

518315300

Unavailable

33

RH Reinforcement Plate

518316709

Unavailable

LH Reinforcement. Plate

518316710

Unavailable

34

Seat Bracket

518310208

Unavailable
