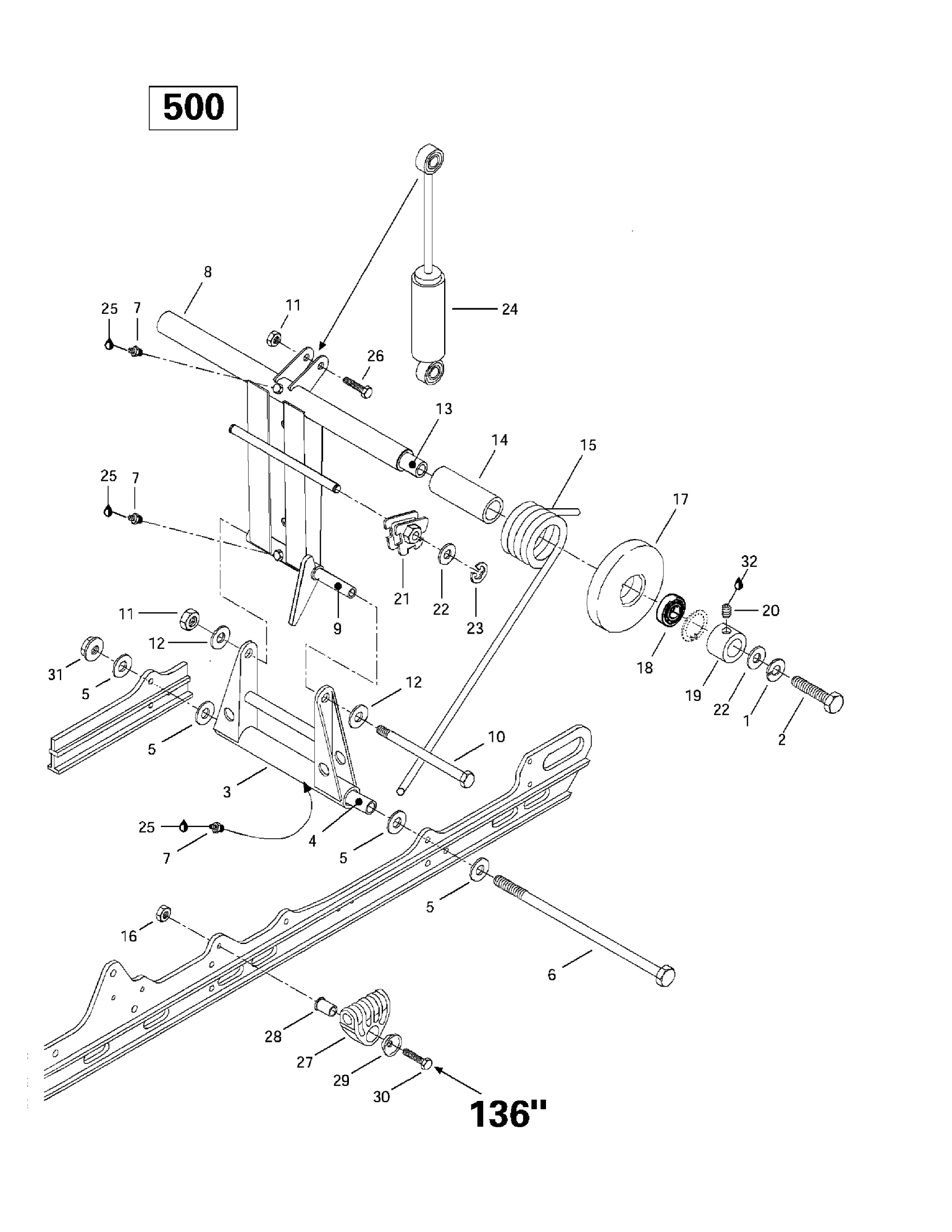

Ski-Doo Grand Touring 500/583, 1997 08- Rear Arm, Rear Suspension 136” Diagram

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

Hex. Screw M10 X 35

207103544

$1.58

Pivot Welded Arm

503169200

Unavailable

Lower Axle Pivot

503154703

Unavailable

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

Bolt M8 X 248mm

503192440

$30.49

Grease Fitting

408200700

$3.49

Rear Arm

503170700

Unavailable

Upper Axle, Pivot Arm

503144300

$11.65

Bolt M8, Short

732601197

$15.36

Hex. Elastic Stop Nut M8

232581414

$0.56

Flat Washer 8 mm

234081410

$0.83

Rear Cross Shaft

503168700

Unavailable

BUSHING - Call your local BRP dealership

572086000

Unavailable

RH Spring (Europe) | Formula Deluxe 500 LC.

414944200

Unavailable

LH SPRING (EUROPE) - Call your local BRP dealership | Formula Deluxe 500 LC.

414944300

Unavailable

Elastic Stop Nut M6

232561414

$0.55

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

Ball Bearing

293350115

$12.11

Retaining Ring

503168800

$14.99

Not Available As Spare Part - Friction Washer

Unavailable

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

Flat Washer 10 mm

234001410

$1.26

e Circlip

371907100

Unavailable

Shock | Grand Touring 500.

415040600

Unavailable

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

Hex. Screw M8 X 40

207084044

$1.15

Spring Support

503189657

$11.99

SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

503152700

Unavailable

Retainer Washer | Formula 500. Formula 500 Deluxe.

517041700

Unavailable

Hex. Screw M6 X 45

207064544

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Loctite 271, 10 ml

293800005

$26.99
