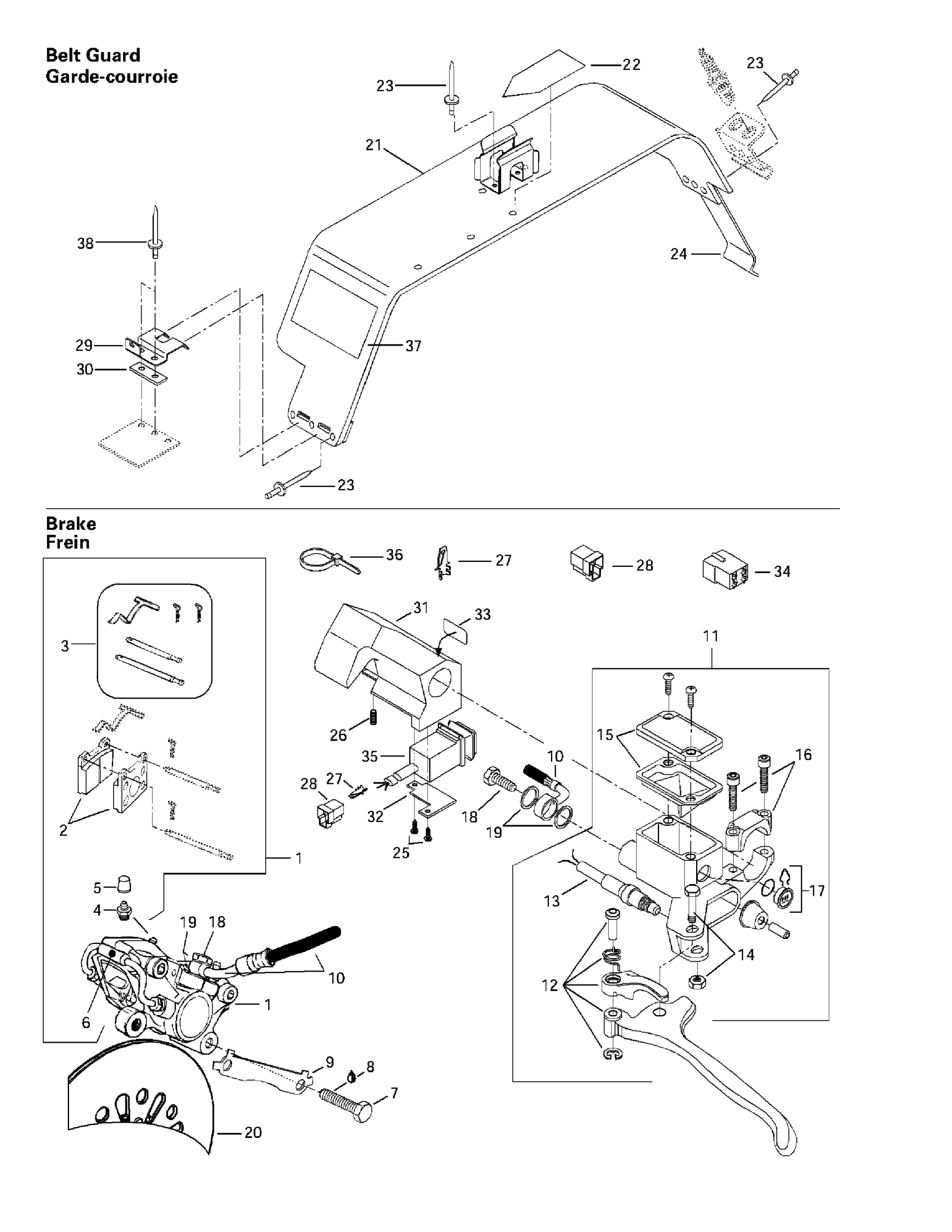

Ski-Doo Grand Touring 500/583, 1997 06- Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper | Includes 6 - 11. 500 F.

415034500

Unavailable

2

Brake Pad Kit

415129172

$52.99

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.58

8

Loctite 243, 10 ml

293800060

$21.49

9

Locking Tab

507029900

Unavailable

10

HOSE - Call your local BRP dealership This part replaces 507032212.

507032568

Unavailable

11

Master Cylinder | Formula 500 Deluxe.

415034600

Unavailable

12

LEVER - Call your local BRP dealership

507032428

Unavailable

13

Microswitch

507032366

$98.99

14

Pin Ass'y

415030000

$19.99

15

Cap

415029900

$41.49

16

Clamp And Screw Kit

507032477

$23.99

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

Brake Disk | Formula 500. Formula 500 Deluxe. Formula 583.

507030600

Unavailable

21

Belt Guard Ass'y | Includes 21 - 24.

517285600

Unavailable

22

Warning Decal

415028900

Unavailable

23

Pop Rivet 3/16"

390402200

$0.35

24

Tool Box Spring

414941800

Unavailable

25

Screw

414473200

Unavailable

26

Socket Set Screw M8 X 10

414440800

$4.12

27

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

28

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

29

Pulley Guard Bracket

518314200

Unavailable

30

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

31

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable

32

Plate | SWT 550

517283800

Unavailable

33

Switch Decal

415025500

Unavailable

34

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

35

Dimmer Switch

515163100

Unavailable

36

Tie-Rap 180 mm

414115200

$0.11

37

Suspension Adjustment Decal | Grand Touring 500.

418001704

Unavailable

Suspension Adjustment Decal

418001709

Unavailable

38

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

Pop Rivet 3/16"

390402200

$0.35
