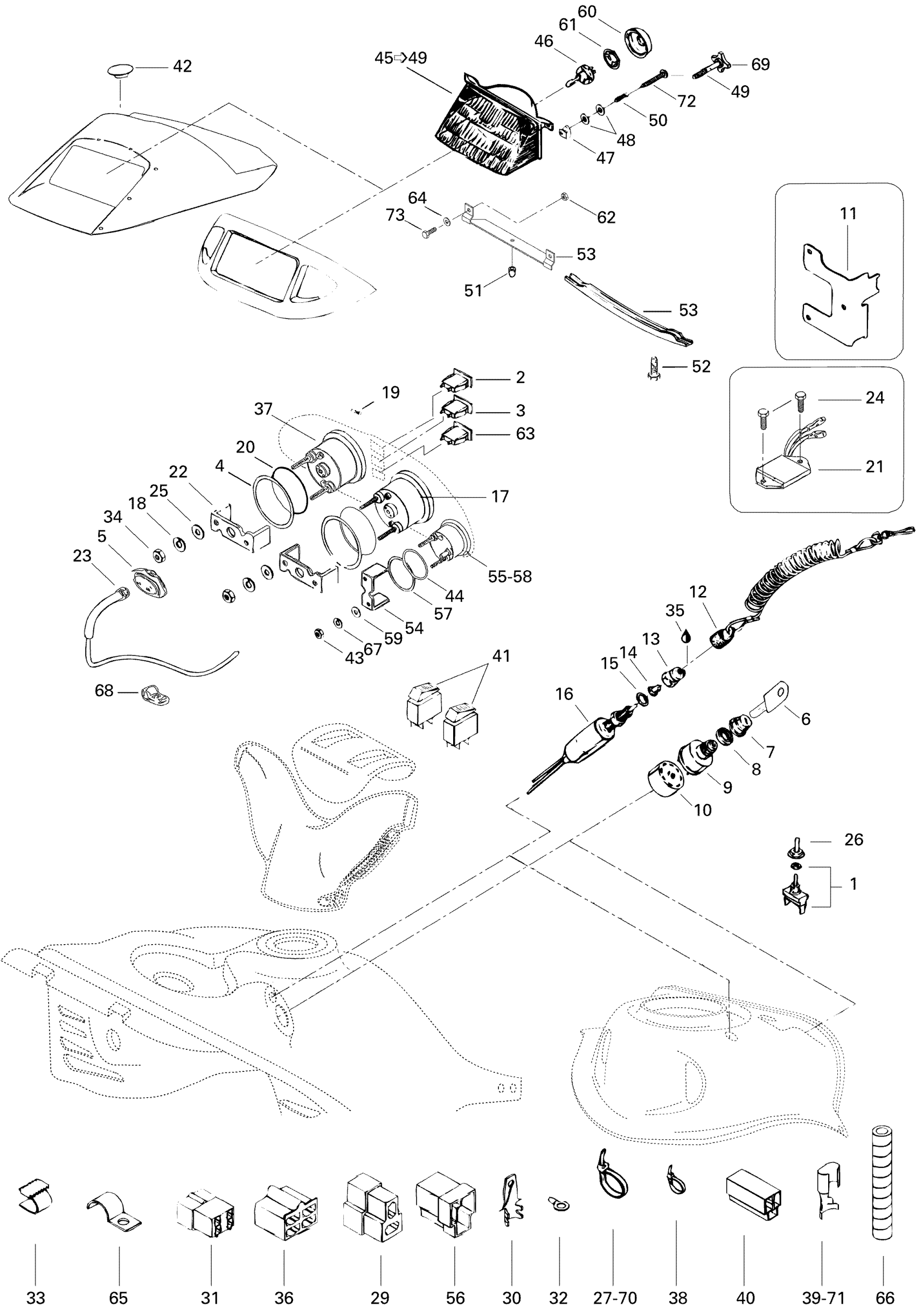

Ski-Doo Grand Touring 500, 1996 10- Electrical System 500 Diagram

Switch (Heating Grip) | FREERIDE

410107300

$35.99

Pilot Lamp (Red)

410109500

Unavailable

Pilot Lamp (Blue)

410109600

Unavailable

Washer

517258500

Unavailable

Drive Angle | Formula S.

572022300

Unavailable

Blank Key

415129350

$26.49

Switch Boot

570013700

$11.49

FACE NUT - Call your local BRP dealership

410112100

Unavailable

IGNITION SWITCH - Call your local BRP dealership

410108600

Unavailable

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

Support Cable

517281800

Unavailable

Cap Ass'y

515178283

$38.99

Switch Nut

515145900

$12.12

Plunger Cap

570151100

$9.85

Not Available As Spare Parts

XXX

Unavailable

Brake Switch

515175653

$19.49

Speedometer (KMH) | Formula 500. Formula 500 Deluxe. Formula 583.

414806200

Unavailable

Speedometer (MH) | Formula 500. Formula 500 Deluxe. Formula 583.

414806100

Unavailable

Lock Washer

414806700

Unavailable

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

O-Ring

414807100

Unavailable

VOLTAGE REGULATOR - Call your local BRP dealership

410918400

Unavailable

Case Holder

414806500

Unavailable

Speedometer Cable

414761400

Unavailable

Hex. Flange Screw M6 X 16

210261650

$1.67

Flat Washer

517225900

$0.18

Switch Cover

515175281

$15.99

Tie-Rap 180 mm

414115200

$0.11

Resistance

515175241

$17.99

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable

Nut

414806900

Unavailable

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

Tachometer | Formula 500. Formula 500 Deluxe. Formula 583.

414807400

Unavailable

Tie Wrap 368 mm

293750008

$1.04

Female Terminal PACKARD

561503200

Unavailable

Female Housing

409204300

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

O-RING - Call your local BRP dealership

414807200

Unavailable

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 1 - 1E.

410608800

Unavailable

Headlamp

410608900

Unavailable

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Projector Nut

572018300

Unavailable

Flat Washer M5

234051410

$0.53

Not Available As Spare Parts

XXX

Unavailable

Spring

517168600

$7.39

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Headlamp Support

517218500

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

Elastic Stop Nut M5

232551414

$0.87

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Bracket

517172300

Unavailable

Was 409901800 Tubing (13 mm)

219704400

$14.49

Not Available As Spare Parts

XXX

Unavailable

Open Clamp

414176000

$1.99

Not Available As Spare Parts

XXX

Unavailable

Tie Wrap 94 mm | 4X4

293750001

$1.03

Female Terminal

561503100

$2.41

Screw M4 x 40

732603002

Unavailable

Hex. Screw M5 X 12

207151244

$0.90
