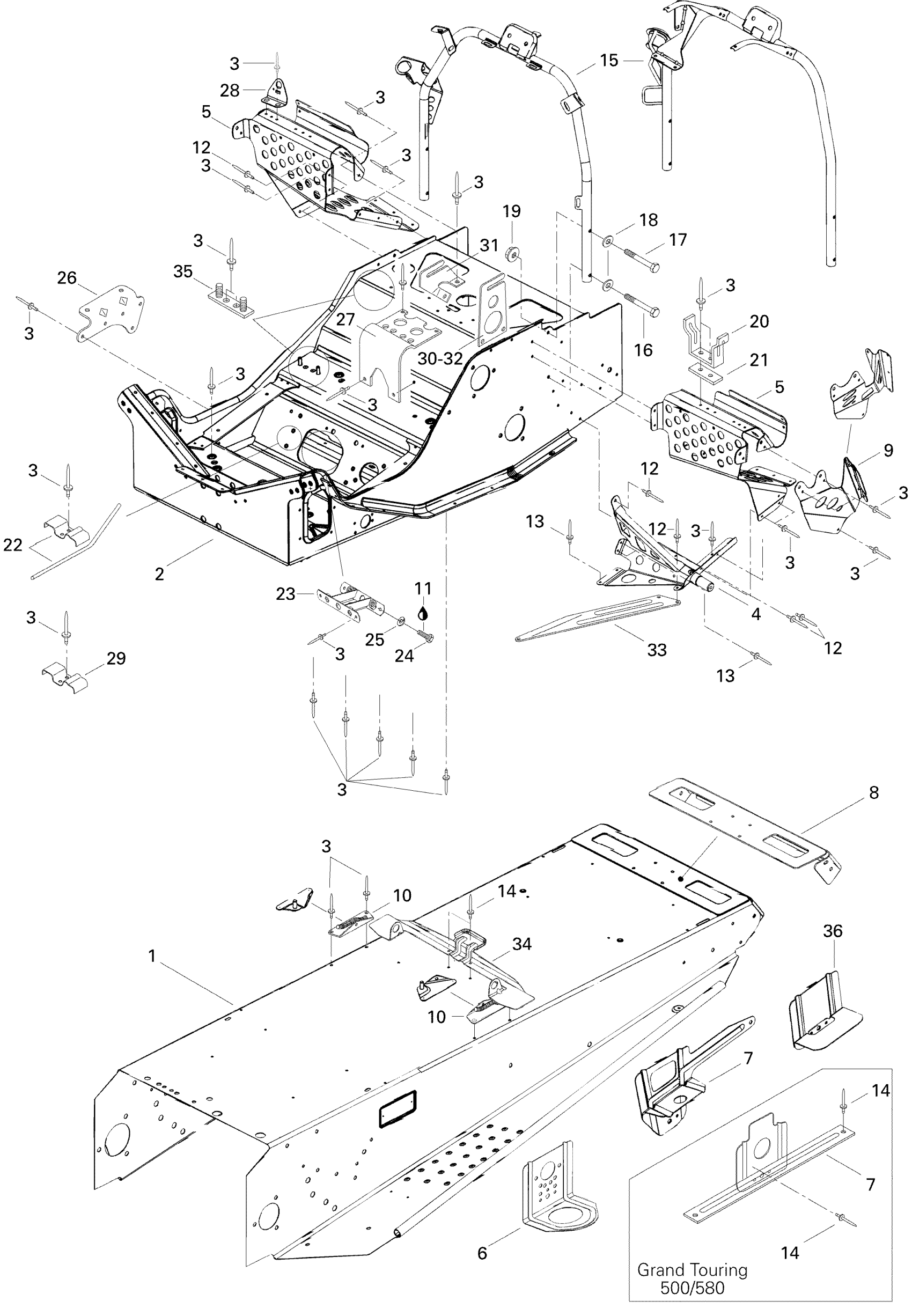

Ski-Doo Grand Touring 500, 1996 09- Frame and Components 500 Diagram

#

Description
Price

1

Tunnel

518313245

Unavailable

2

Front Member

518313042

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

4

RH Support

518312901

Unavailable

5

RH Front Footrest

518313804

Unavailable

5

LH Front Footrest

518313805

Unavailable

6

Front Bracket

518312910

Unavailable

7

LH Rear Bracket

518312923

Unavailable

7

RH Rear Bracket

518312924

Unavailable

8

Cap-End

518308717

Unavailable

9

Upper Plate L.H

518308714

Unavailable

9

Upper Plate R.H

518308715

Unavailable

10

RH Tank Bracket

517266900

Unavailable

10

LH Tank Bracket

517267000

Unavailable

11

Loctite 271, 10 ml

293800005

$26.99

12

Avex Rivet

390909200

$0.30

13

Avex Rivet

390909100

$0.30

14

Pop Rivet 3/16"

390402400

$0.35

15

Handle Steering Support

518309200

Unavailable

16

Hex. Screw M6 X 40

207064044

$1.48

17

Hex. Flange Screw M6 X 35

207063544

$1.37

18

Flat Washer 6 mm

234061410

$1.36

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Belt Guard Bracket

518202100

$17.49

21

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

22

Guide Rope

518313700

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.74

25

Lock Washer 8 mm

234181401

$0.92

26

Not Available As Spare Parts

XXX

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Valve Bracket | MX Z 670 HO.

518310206

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

RH Reinf. Plate

518312929

Unavailable

33

LH Reinf. Plate

518312930

Unavailable

34

Seat Bracket

518310208

Unavailable

35

Support Plate

518315300

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable
