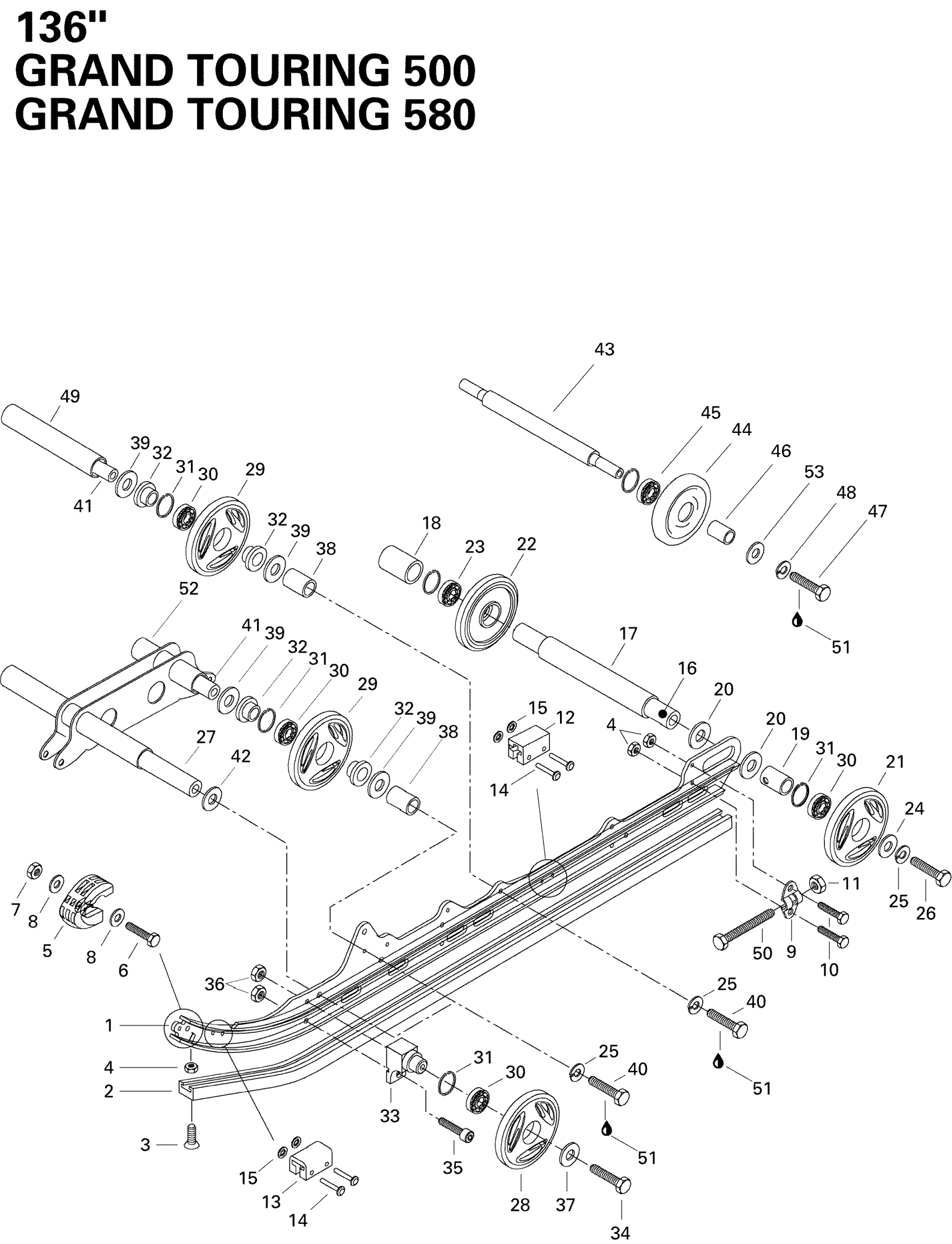

Ski-Doo Grand Touring 500, 1996 08- Rear Suspension 500, 580 Diagram

#

Description
Price

1

Runner (136”)

503166700

Unavailable

2

Slide Shoe

605355362

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Rubber Stopper

570036700

Unavailable

13

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

14

Rivet 3/16 x 1-3/8 | Formula 500. Formula 500 Deluxe. Formula 583.

390908700

Unavailable

15

Push Nut

389804300

$0.53

16

Rear Axle

503167900

$139.99

17

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

18

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

19

Outer Spacer

503189809

$18.89

20

SHIM - Call your local BRP dealership

504108200

Unavailable

21

Bond Wheel (Ocean Green)

570045325

Unavailable

22

Wheel 165" | Includes 670 to 670b

503194127

$51.99

23

Ball Bearing

293350115

$12.11

24

Washer

503183300

$5.82

25

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

26

Hex. Screw With Nylon

250000019

$1.69

27

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

28

Idler Wheel 135 (Ocean Green)

570045225

Unavailable

29

Wheel 135 | Includes 18 to 19

503190797

$33.99

30

Ball Bearing

293350115

$12.11

31

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

32

Cushion

503189534

$4.76

33

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

Unavailable

34

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

35

Socket Head Screw M8 X 25

205082544

$1.15

36

Hex. Elastic Stop Nut M8

232581414

$0.56

37

WASHER - Call your local BRP dealership

517078700

Unavailable

38

Spacer | Formula 500. Formula 500 Deluxe.

503151000

Unavailable

39

WASHER - Call your local BRP dealership

503154000

Unavailable

40

Hex. Screw M10 X 35

207103544

$1.58

41

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

42

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

43

Wheel Support Axle

503153600

Unavailable

44

Idler Wheel | Includes 48 - 49.

572043500

$33.99

45

Ball Bearing

405404600

$25.99

46

Spacer

572048300

Unavailable

47

Hex. Screw M8 X 30

207183044

$1.15

48

Lock Washer 8 mm

234181401

$0.92

49

Spacer

503153100

Unavailable

50

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

51

Loctite 271, 10 ml

293800005

$26.99

52

Welded Shock Support

503152100

Unavailable

53

Flat Washer 8 mm

234081410

$0.83
