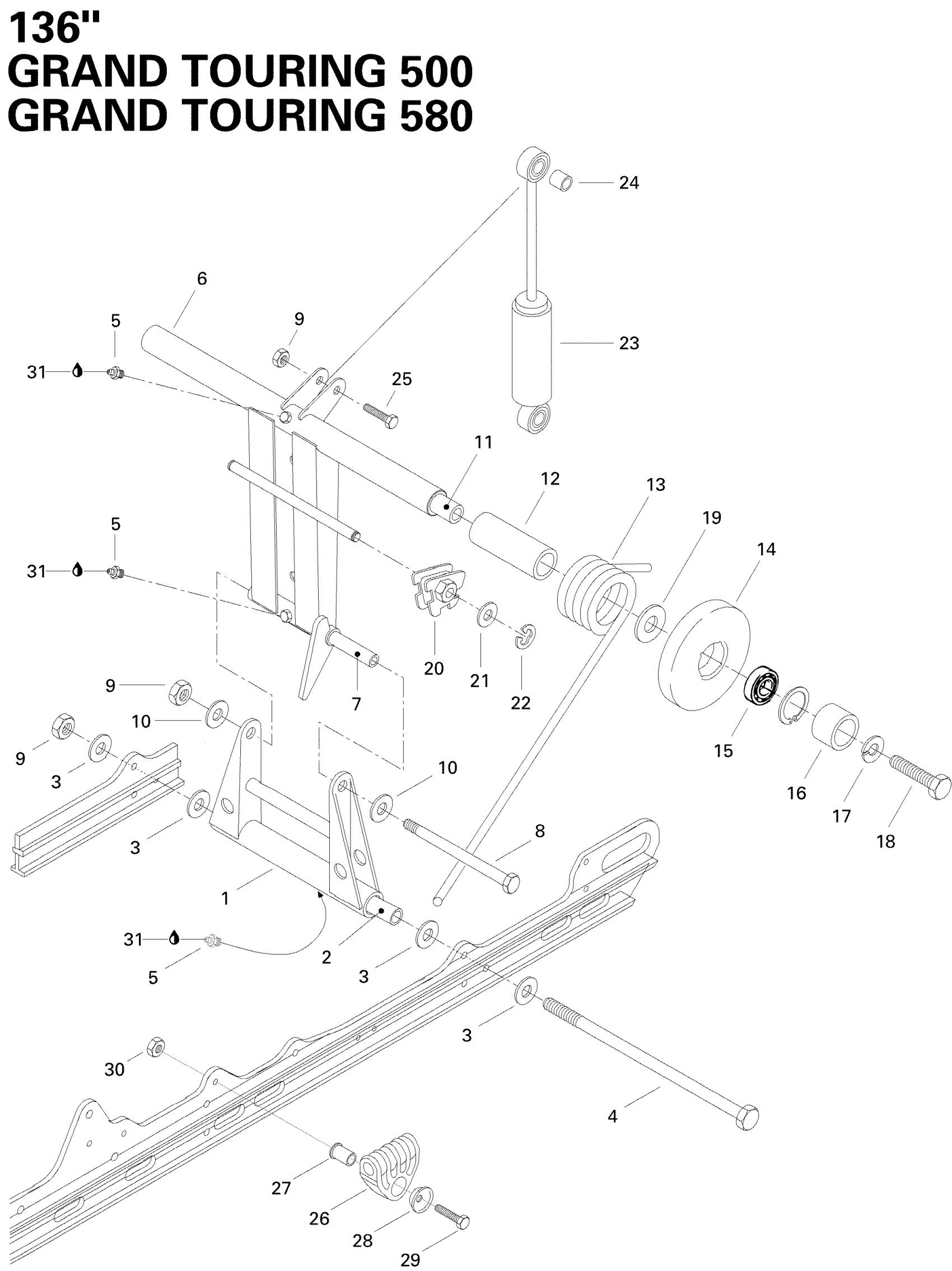

Ski-Doo Grand Touring 500, 1996 Rear Arm 500, 580 Diagram

#

Description
Price

1

Pivot Arm

503152200

Unavailable

2

Lower Axle Pivot

503154703

Unavailable

3

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

4

Bolt M8 X 248mm

503192440

$30.49

5

Grease Fitting

408200700

$3.49

6

Welded Rear Arm

503151200

Unavailable

7

Upper Axle, Pivot Arm

503144300

$11.65

8

Bolt M8, Short

732601197

$15.36

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Flat Washer 8 mm

234081410

$0.83

11

Transversal Rear Axle

503151400

Unavailable

12

Bushing

572047800

Unavailable

13

RH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010500

Unavailable

13

LH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010600

Unavailable

14

Idler Wheel 144 | Includes 17 - 18.

415005600

Unavailable

15

Ball Bearing

405404600

$25.99

16

Spacer

503154200

Unavailable

17

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

18

Hex. Screw M10 X 35

207103544

$1.58

19

Washer

503144900

$2.79

20

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

20

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

21

Flat Washer 10 mm

234001410

$1.26

22

e Circlip

371907100

Unavailable

23

Shock

414975900

Unavailable

24

CUSHION - Call your local BRP dealership

414802600

Unavailable

25

Hex. Screw M8 X 40

207084044

$1.15

26

Spring Support

503189657

$11.99

27

SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

503152700

Unavailable

28

Retainer Washer | Formula 500. Formula 500 Deluxe.

517041700

Unavailable

29

Hex. Screw M6 X 45

207064544

$2.11

30

Elastic Stop Nut M6

232561414

$0.55

31

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
