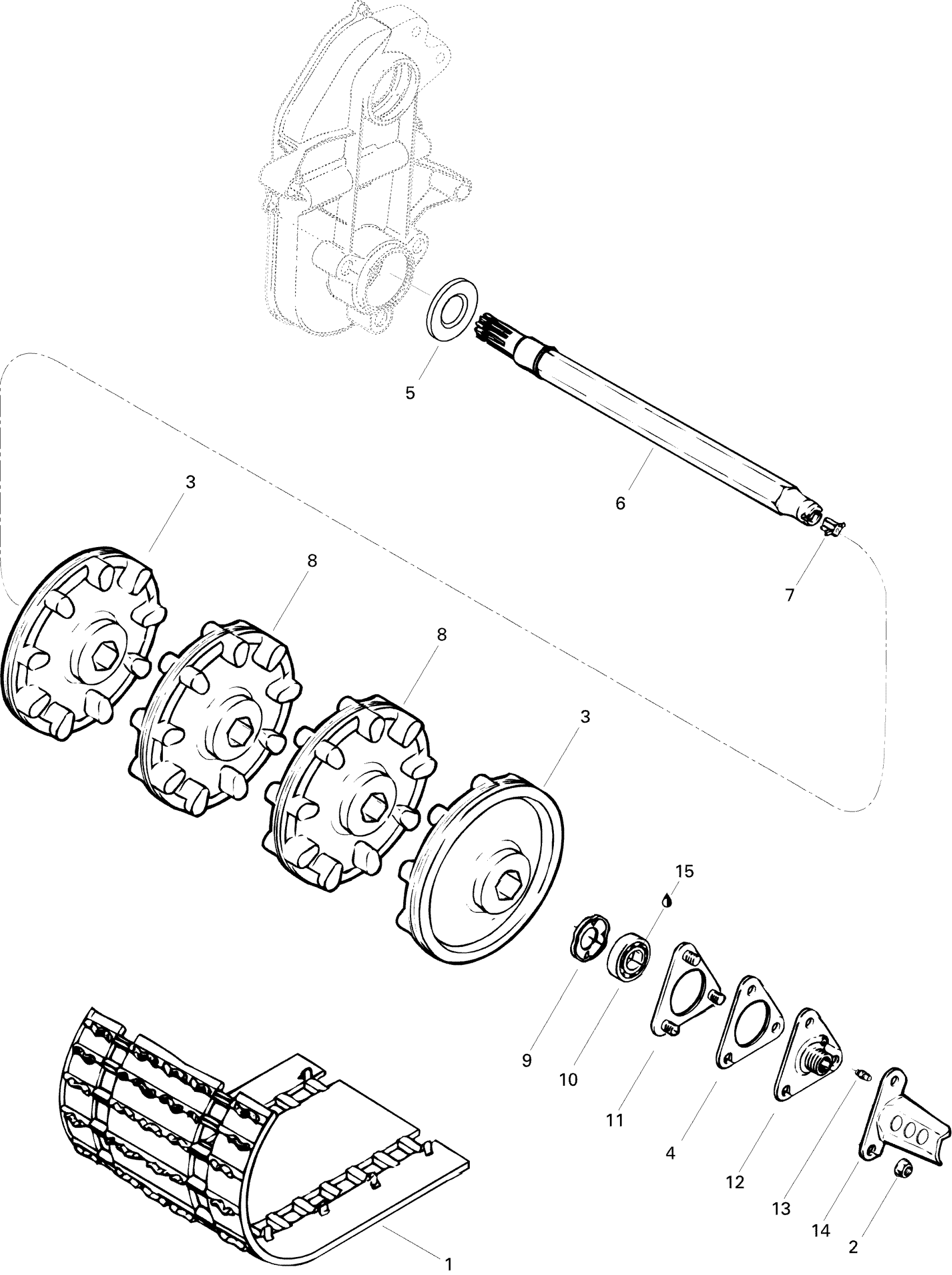

Ski-Doo Grand Touring 500, 1996 Drive System Diagram

#

Description
Price

1

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

9 Tooth Half Sprocket

414990800

Unavailable

4

Spacer

501022200

Unavailable

5

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

6

Drive Axle

501025300

Unavailable

7

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

8

9 Tooth Sprocket

414663900

Unavailable

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

Ball Bearing

293350115

$12.11

11

Retainer Ring

501017800

Unavailable

12

Ball Bearing Housing | Includes 12 - 13.

501017500

Unavailable

13

Grease Fitting

408200700

$3.49

14

Cable Protector

517243600

Unavailable

15

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
