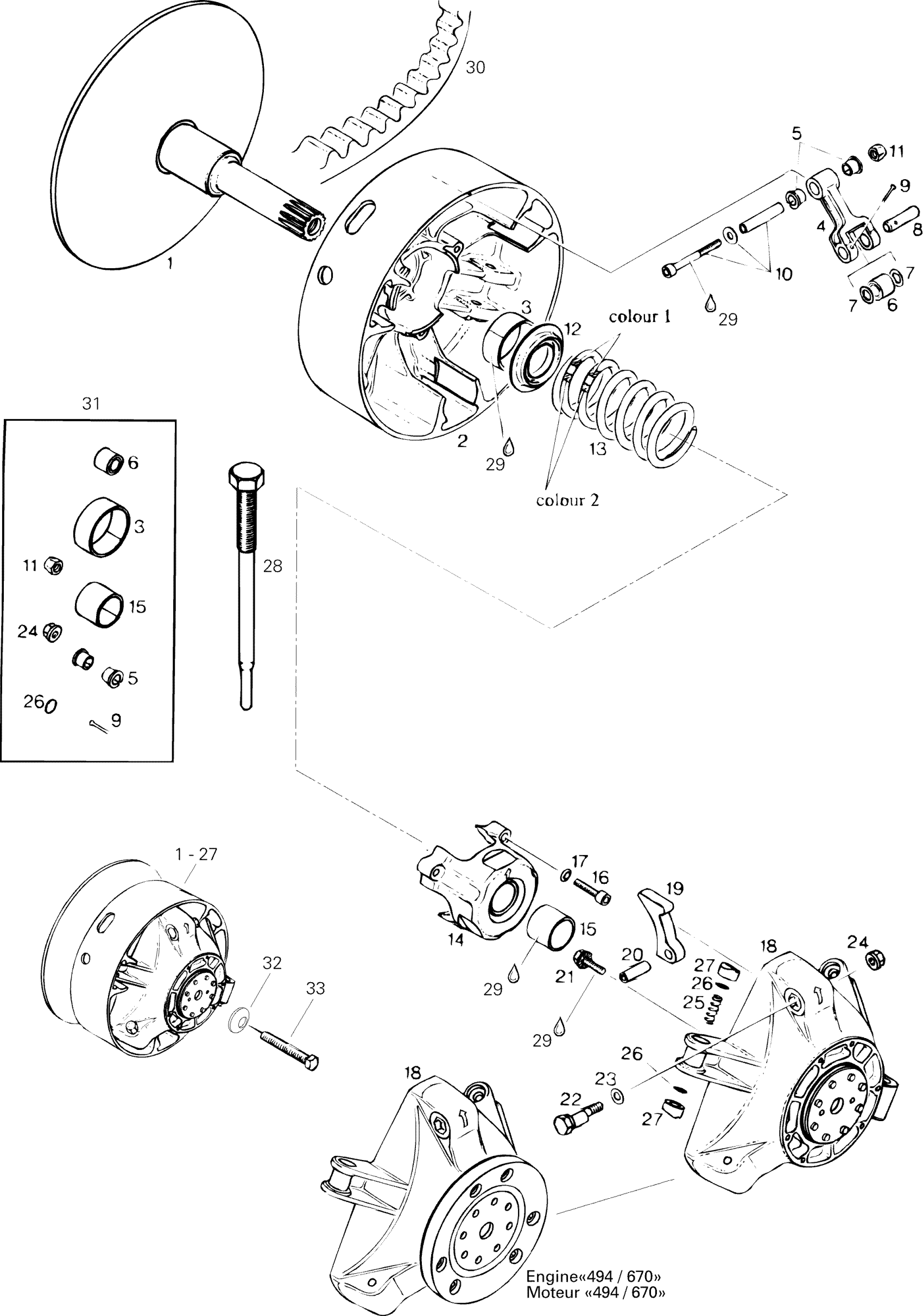

Ski-Doo Grand Touring 500, 1996 05- Drive Pulley 500 Diagram

#

Description
Price

1

Drive Pulley Ass‘y | Includes 1 to 27

417210200

Unavailable

1

Flasque Fixe Us*Flange-Fix.Mach This part replaces 420480415.

417222408

$439.99

2

Outer Half Ass’y | Includes 2 to 3

420480299

Unavailable

3

BUSHING OUTER HALF - Call your local BRP dealership

420433173

Unavailable

4

Lever Ass‘y | Includes 5 to 6

420448455

Unavailable

5

Bushing

417004305

$11.52

6

Roller

417222947

$21.99

7

Stopper Washer

417004302

$15.90

8

Pin

417004308

$13.99

9

Cotter Pin

250400060

$2.00

10

Fitting Screw

420440166

Unavailable

11

Elastic Stop Nut M6

232561414

$0.55

12

Spring Seat

420427392

Unavailable

13

Spring (Green/Blue)

415024000

Unavailable

14

Spring Cover Ass‘y | Includes 15 to 16

420412287

Unavailable

15

Bushing

417004501

$24.99

16

Socket Screw M6 X 40

205064086

Unavailable

17

WASHER - Call your local BRP dealership

420245370

Unavailable

18

Governor Cup

420480395

Unavailable

19

Ramp (228)

420480228

Unavailable

20

Dowel Tube M8 x 24

420429150

Unavailable

21

Hex. Locking Screw M6 x 20

420440180

Unavailable

22

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

23

Washer | Skandic Super Wide Track.

420927941

Unavailable

24

Hex. Flange Nut M6

233061414

$1.68

25

Spring

417005700

$4.76

26

O-Ring

732401030

$0.98

27

Slider Shoe This part replaces 420460045.

417223021

$5.90

28

Puller Inner Half

529007900

$56.99

29

Sealant Loctite 648

219703000

$45.99

30

Drive Belt

414860700

$104.99

31

Clutch Repair Kit

420483325

Unavailable

32

Spring Washer 14 mm

250200006

$6.99

33

Drive Pulley Bolt

417120000

$65.49
