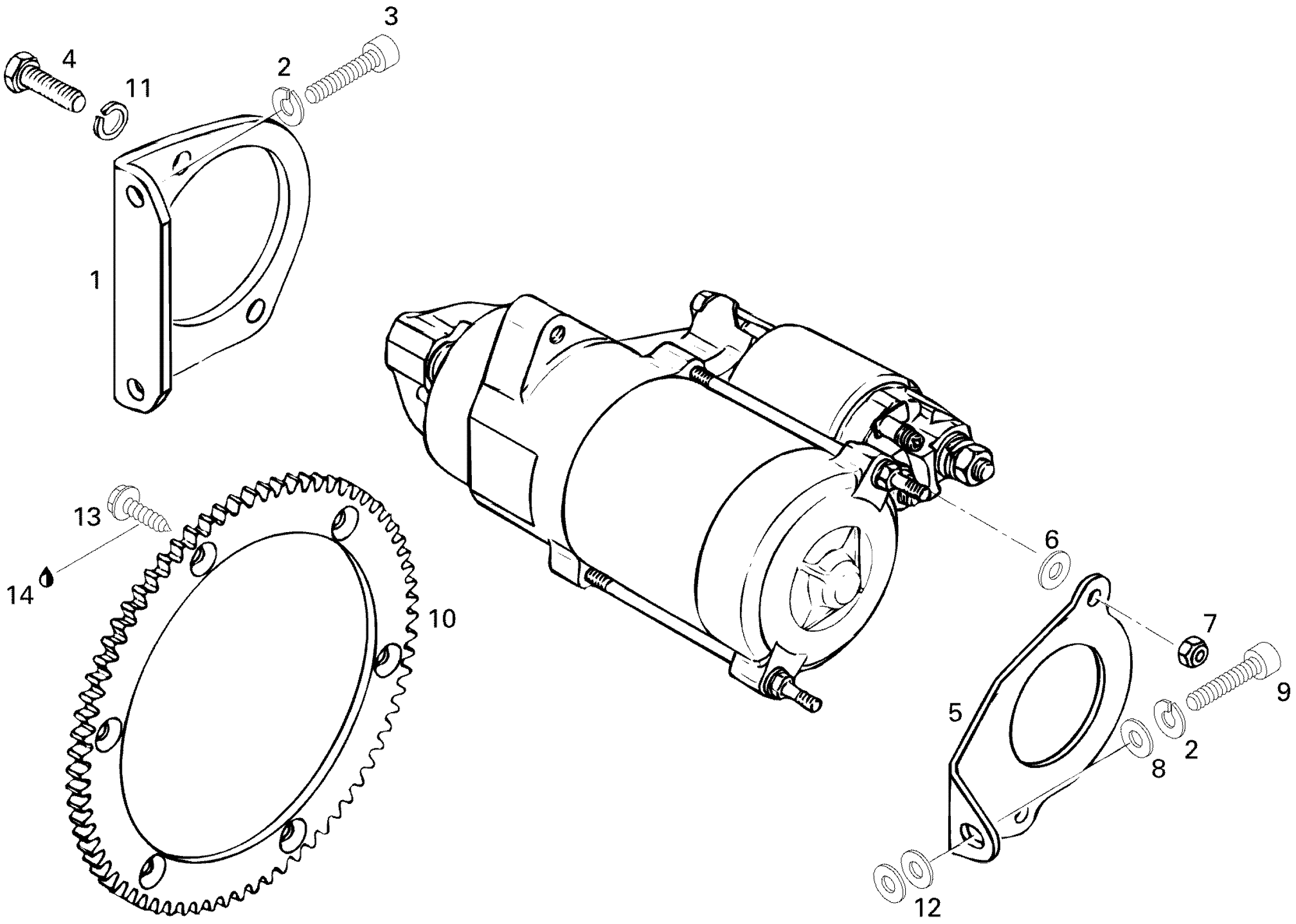

Ski-Doo Grand Touring 500, 1996 04- Electric Starter Bracket Diagram

#

Description

Price

1

Starter Bracket (PTO) | Formula DLX 500 LC.

420853730

Unavailable

2

Washer-Lock Din.128

420945832

$1.15

3

Socket Head Screw M8 X 20

205082044

$1.15

4

Socket Head Screw M8 X 25

205082544

$1.15

5

STARTER SUPPORT (MAG) - Call your local BRP dealership | Formula DLX 500 LC.

420953011

Unavailable

6

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Flat Washer 8 mm

234081410

$0.83

9

Socket Head Screw M8 X 20

205082044

$1.15

10

Ring Gear (86 Theet) | Formula Deluxe 380 F.

414807500

Unavailable

11

Lock Washer 8 mm

234181401

$0.92

12

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

13

Screw M6 x 16 | Formula Deluxe 380.

732600021

Unavailable

14

Loctite 271, 10 ml

293800005

$26.99
