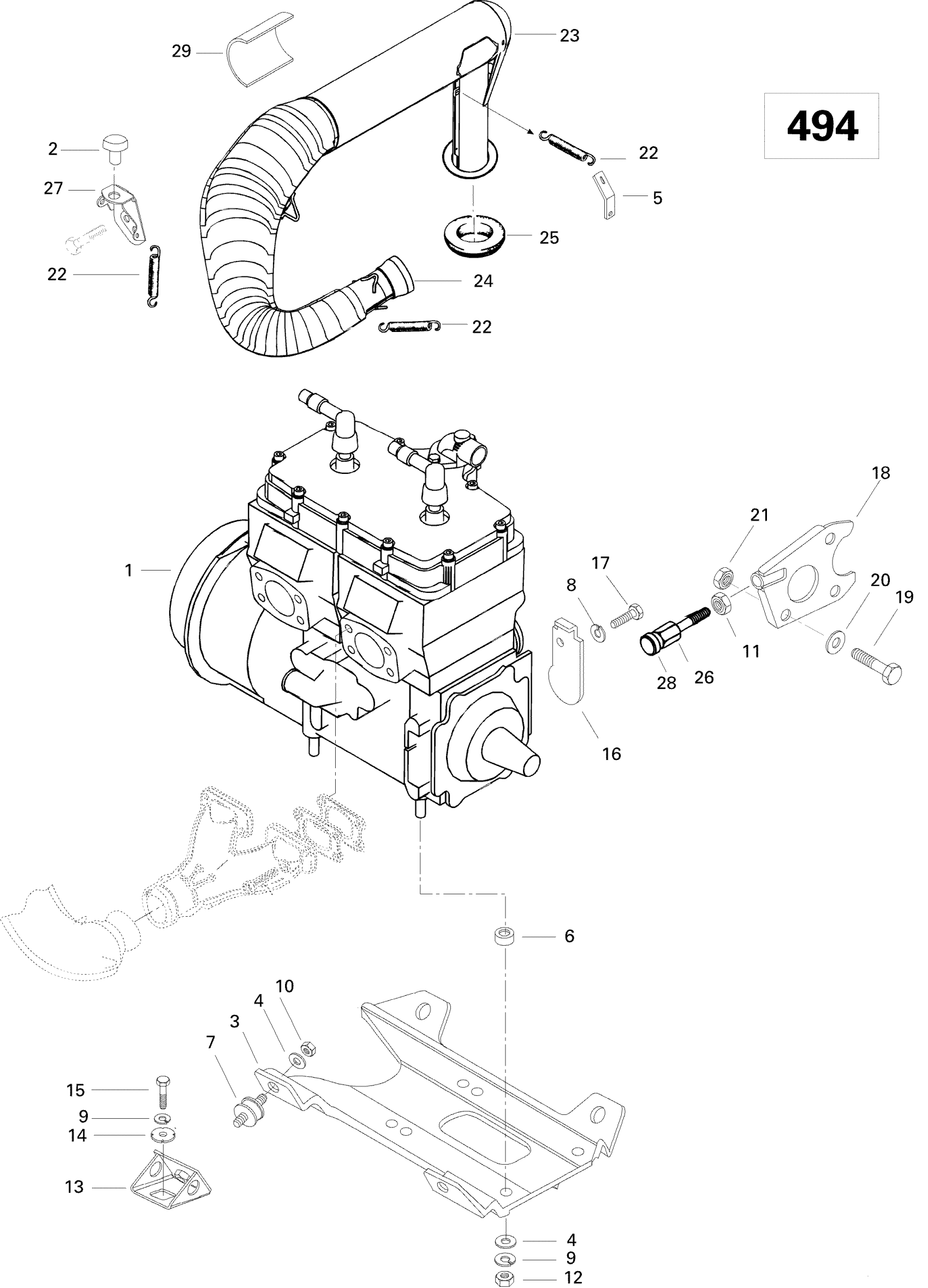

Ski-Doo Grand Touring 500, 1996 01- Engine And Engine Support 500 Diagram

#

Description
Price

1

«494» Engine

400407600

Unavailable

2

Rubber Bumper

514053654

$50.99

3

Engine Support

512054400

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

Spring Bracket

514054522

$8.45

6

Spacer

503128100

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Lock Washer M6, Black

234161471

$0.53

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Elastic Locking Nut M10 X 1.5

233601416

$1.69

11

Nut Hexagonal RH.

232026414

$1.48

12

Hex. Nut M10 X 1.5

232006414

$1.37

13

Engine Support

512050900

Unavailable

14

Lock Washer

512056700

$3.17

15

Hex. Screw M10 X 25

207102544

$1.37

16

Stopper Plate

512052900

Unavailable

17

Hex. Screw M6 X 16

207161644

$0.74

18

Support Plate

512052300

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.90

20

Flat Washer 8 mm

234081410

$0.83

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

Spring

415107100

$6.35

23

Muffler | Includes 23 to 24

514044000

Unavailable

24

FEMALE BALL JOINT - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

420879991

Unavailable

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

27

Muffler Support

514044100

Unavailable

28

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

29

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable
