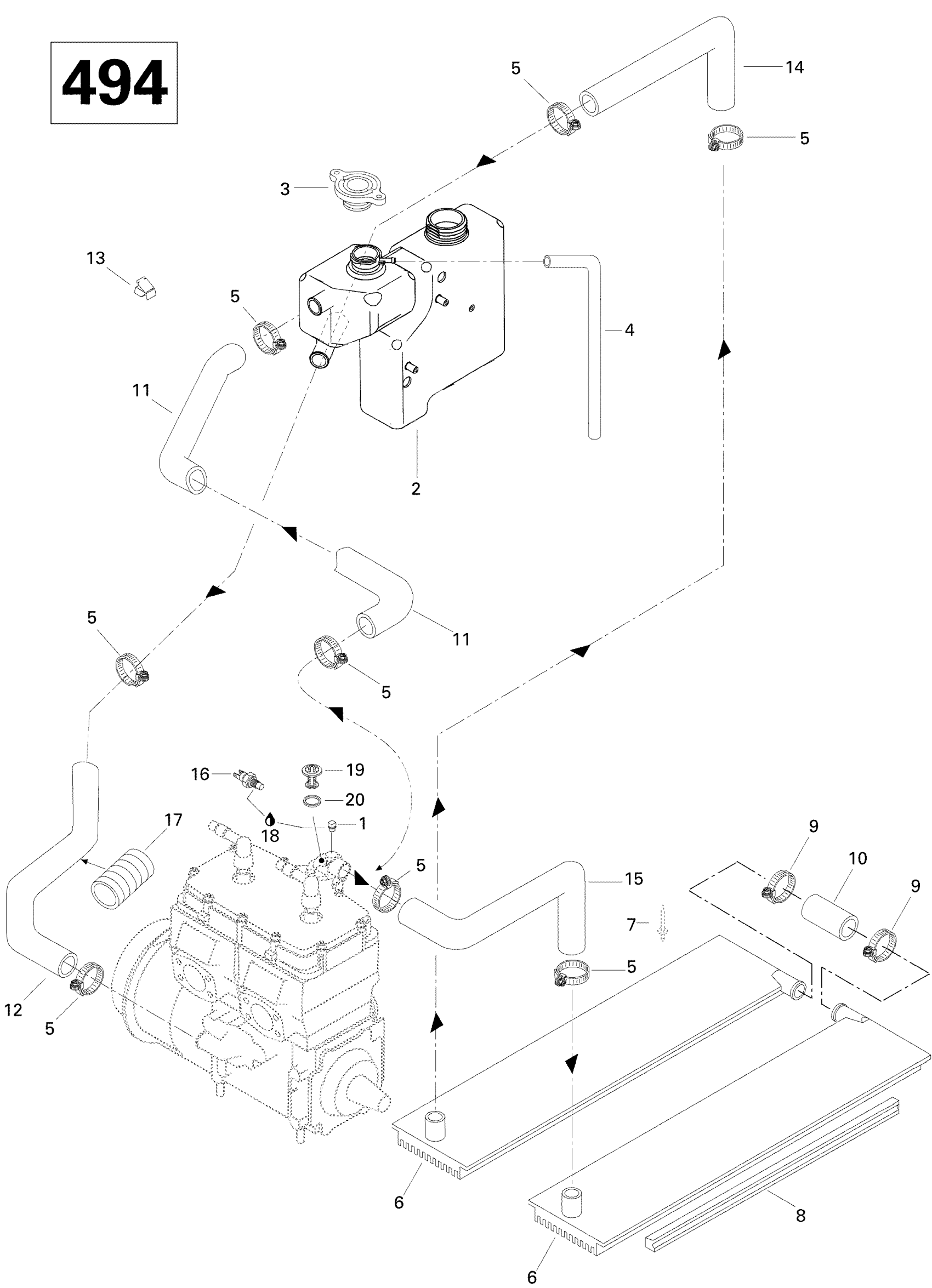

Ski-Doo Grand Touring 500, 1996 Cooling System (500) Diagram

#

Description
Price

1

Plug

414184400

Unavailable

2

Coolant Tank

572076900

Unavailable

3

Pressure Cap

509000187

$29.49

4

Polyurethane Hose 10000Mm Long

219704410

$56.99

5

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

6

RH Radiator

517280600

Unavailable

6

LH Radiator

517280601

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Radiator Protector | Formula 500. Formula 500 Deluxe.

517258800

Unavailable

9

Clamp Tridon

408803400

Unavailable

10

Radiator Hose

414795800

Unavailable

11

Engine Outlet Hose

414972900

Unavailable

12

Engine Inlet Hose

415010300

Unavailable

13

Clip

414227300

$1.67

14

Radiator Outlet Hose

414973000

Unavailable

15

Radiator Inlet Hose

415028000

Unavailable

16

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

17

TUBING - Call your local BRP dealership

414991800

Unavailable

18

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

19

Thermostat This part replaces 414834100.

420922519

$63.99

20

SEALING RING - Call your local BRP dealership

420931270

Unavailable
