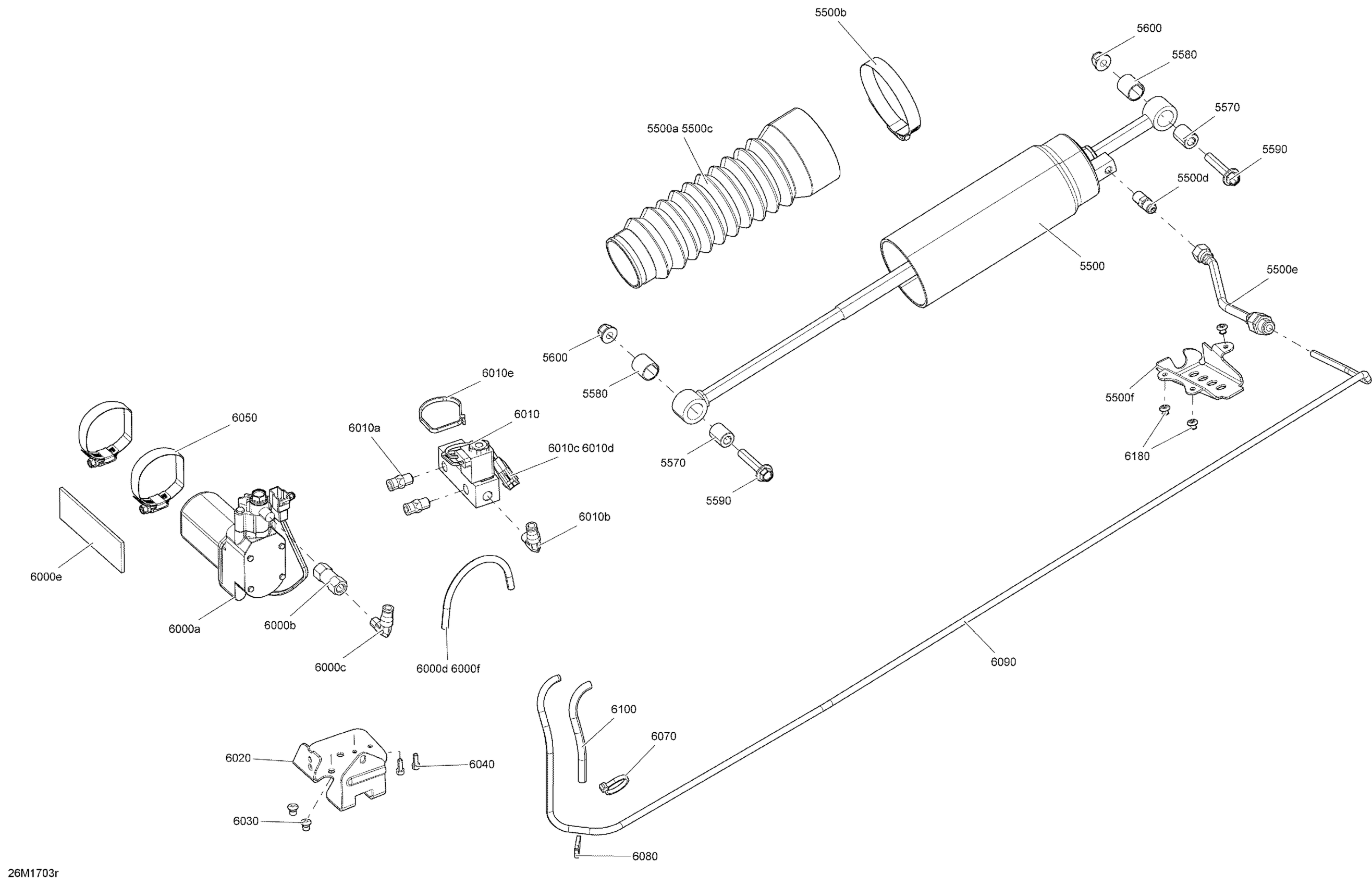

Ski-Doo GRAND TOURING - 4-STROKE, 2017 Rear Suspension - rMotion with Air Ride - Package SE - Shock Diagram

Description

Price

5500

Rear Shock | Included 5500 to 5500m

503194926

$716.99

5500a

Protection Boot

570278300

$59.97

5500b

Tridon Clamp

293650064

$7.80

5500c

Tie Wrap 368 mm

293750008

$0.85

5500d

Male Pneumatic Connector

503191939

$45.99

5500e

Air Hose Ass'y

503192652

$123.82

5500f

BRACKET - Call your local BRP dealership

503194290

Unavailable

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex. Flange Screw M8 X 40

207684044

$1.25

5600

Elastic Flange Nut M8

233281466

$0.83

6000a

Compressor

706001349

$436.89

6000b

Check Valve

706000940

$35.35

6000c

Elbow 90°

706000872

$26.89

6000d

Hose 4.32Mm 3000Mm Long

219704415

$44.17

6000e

Rubber Damper

503191940

$8.72

6000f

Tubing 6 Mm 3000Mm Long

219704425

$13.14

6010

PRESSURE COLLECTOR - Call your local BRP dealership | Includes 6010 to 6010,005

503194157

Unavailable

6010a

Connector

706000869

$33.05

6010b

Elbow 90°

706000872

$26.89

6010c

Male Terminal

515175232

$1.49

6010d

Male Terminal Housing, 2 Circuits

515175654

$7.48

6010e

Tie-Rap 180 mm

414115200

$0.09

6020

SUPPORT - Call your local BRP dealership

503194043

Unavailable

6030

Avex Rivet

390909200

$0.29

6040

Socket Head Screw M4 X 10 | 400HO (Europe)

205041044

$1.09

6050

Norma Gear Clamp

293650090

$4.38

6070

Tie-Rap 180 mm

414115200

$0.09

6080

Tie-Rap 180 mm

414115200

$0.09

6090

Hose 4.32Mm 3000Mm Long

219704415

$44.17

6100

Tubing 6 Mm 3000Mm Long

219704425

$13.14

6180

Rivet 3/16"

293150102

$0.71
