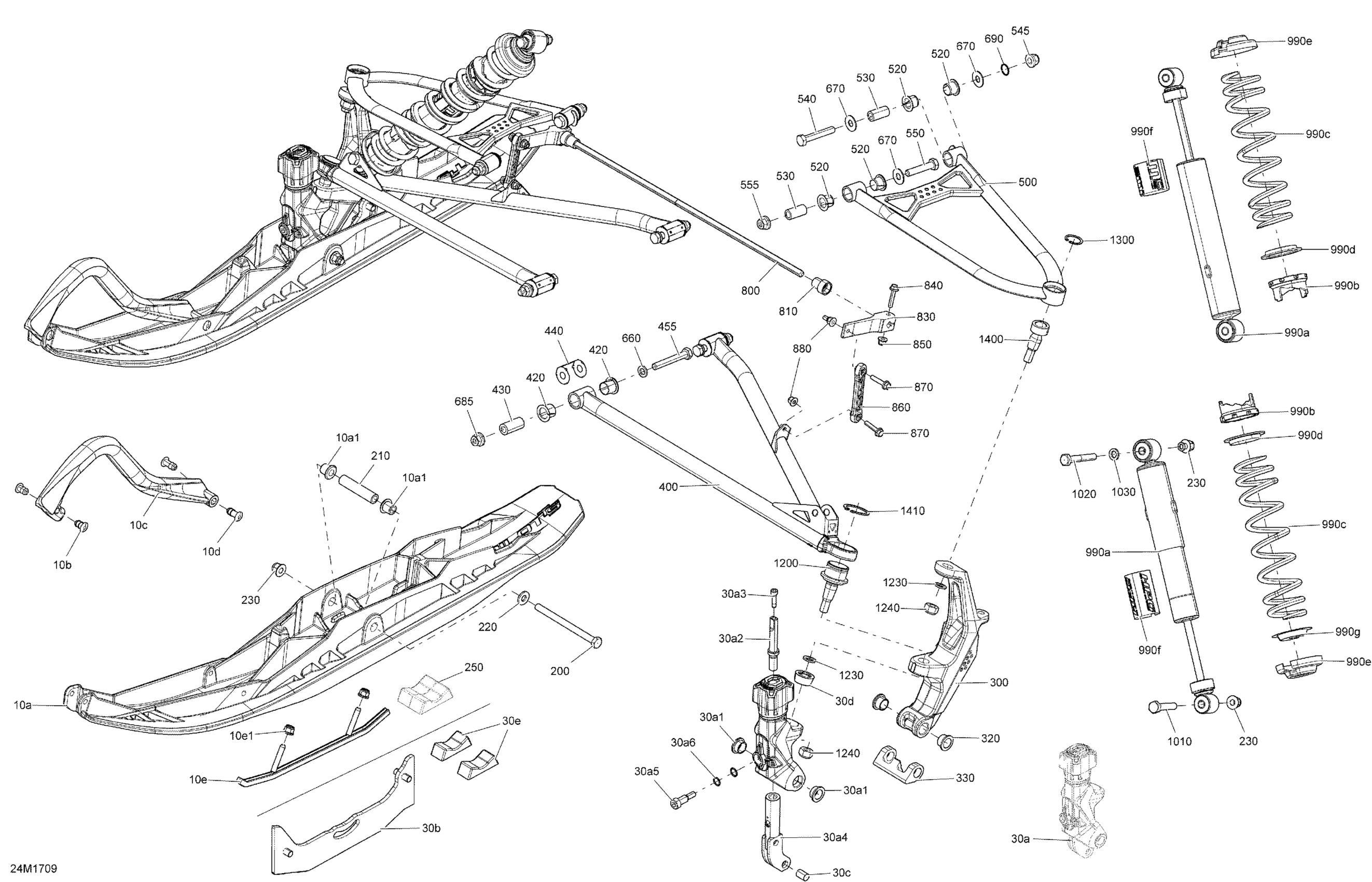

Ski-Doo GRAND TOURING - 4-STROKE, 2017 Front Suspension And Ski - All Models Diagram

#

Description
Price

10a

Pilot SL Ski Ass'y

505072443

$134.58

10a

Black, Ski

505073227

$175.35

10a

Deep Black, RH Ski Pilot TS | Included 20a to 20a.1

505074830

$170.74

10a

Deep Black, LH Ski Pilot TS | Included 10a to 10a.1

505074829

$166.12

10a1

Ski Bushing

505071781

$15.35

10b

Retainer 17mm long

505071812

$4.43

10c

Black, Handle

505070963

$35.35

10c

Black, Handle

505072976

$35.35

10d

Retainer 23mm Long

505072133

$5.03

10e

Round Carbide Runner

860201043

$144.58

10e

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10e1

Hex. Flange Elastic Nut M8

233281414

$1.14

30a

Black LH Support | Includes 30.001 to 30.001a

505073789

$352.28

30a

Black RH Support | Includes 30.001 to 30.001a

505073792

$352.28

30a1

Bushing

505073773

$23.82

30a2

Shaft

505073771

$40.74

30a3

Socket Head Screw M6 X 25

250000925

$1.70

30a4

Tip

505073761

$72.28

30a5

Screw

505073767

$3.25

30a6

O-Ring

293300013

$5.69

30b

Carbide Runner Kit, Ajustable TS Ski

860201178

$249.97

30c

Pin

505073782

$8.92

30d

Black, Rubber Grommet

505073772

$8.97

30e

Ski Stopper

505073788

$12.62

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Spacer

506133300

$19.97

220

Washer

503192496

$0.75

230

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

250

Ski Stopper

505072594

$17.66

300

Clear LH Ski Leg | Package Sport

505073774

$225.35

300

Black LH Ski Leg

505073807

$236.89

300

SKILEG MACHINED - Call your local BRP dealership | Package Sport

505073775

$200.74

300

Black RH Ski Leg

505073808

$236.89

320

Leg Bushing

505072690

Unavailable

330

Leg Stopper

505073779

$12.65

400

Black, RH Lower Arm

505072664

$193.82

400

RH Lower Arm 42", Black Epoxy

505073426

$193.82

400

Black, LH Lower Arm

505072665

$193.82

400

LH Lower Arm 42", Black Epoxy

505073420

$193.82

420

Bushing

505072208

$3.14

430

Sleeve

505072209

$14.38

440

Wear Plate

505072634

$4.45

455

Screw Hex. M10 X 70

250001024

$1.74

500

LH Upper Arm 42", Black Epoxy

505073412

$143.05

500

Black LH Upper Arm, 42"

505073462

$143.05

500

RH Upper Arm 42", Black Epoxy

505073416

$143.05

500

Black RH Upper Arm, 42"

505073463

$143.05

520

Bushing

505072250

$3.14

530

Sleeve

505072143

$8.62

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 50

250001022

$1.42

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

800

Stabilisator

505072444

$65.99

800

Stabilisator

505072602

$71.99

810

Bushing

505072064

$2.22

810

Bushing

505072445

$2.22

830

Stabilisator Lever

505072394

$16.12

830

Stabilisator Lever

505072446

$45.99

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$19.20

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

990a

Front Shock | Europe Models

505073139

$238.43

990a

Front Shock | Europe Models

505073139

$238.43

990a

Front Shock

505073235

$238.43

990a

Front Shock

505073180

$157.66

990b

Adjustment Cam

505073625

$12.18

990c

Deep Black, Spring

505072993

$88.43

990c

Full Moon Spring | Europe Models

505072518

$66.89

990c

Deep Black, Spring

505072767

$59.97

990c

Full Moon Spring

505073521

$66.89

990d

Spring Guide

503187500

$7.37

990e

Spring Stopper

706200881

$10.30

990f

Shock Decal "HPG" | Europe Models

516005533

$12.65

990f

Shock Decal "Mc"

516005535

$10.23

990g

Cap

706200785

$4.42

1010

Hex Screw M10 X 1.5 X 55

207005554

$6.18

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

1030

Washer

503189564

$0.72

1200

Ball Joint

505073636

$49.97

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Circlip

293370035

$2.55

6000

Washer

503192496

$0.75

6001

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

6002

Ski Stopper

505072594

$17.66

6003

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
