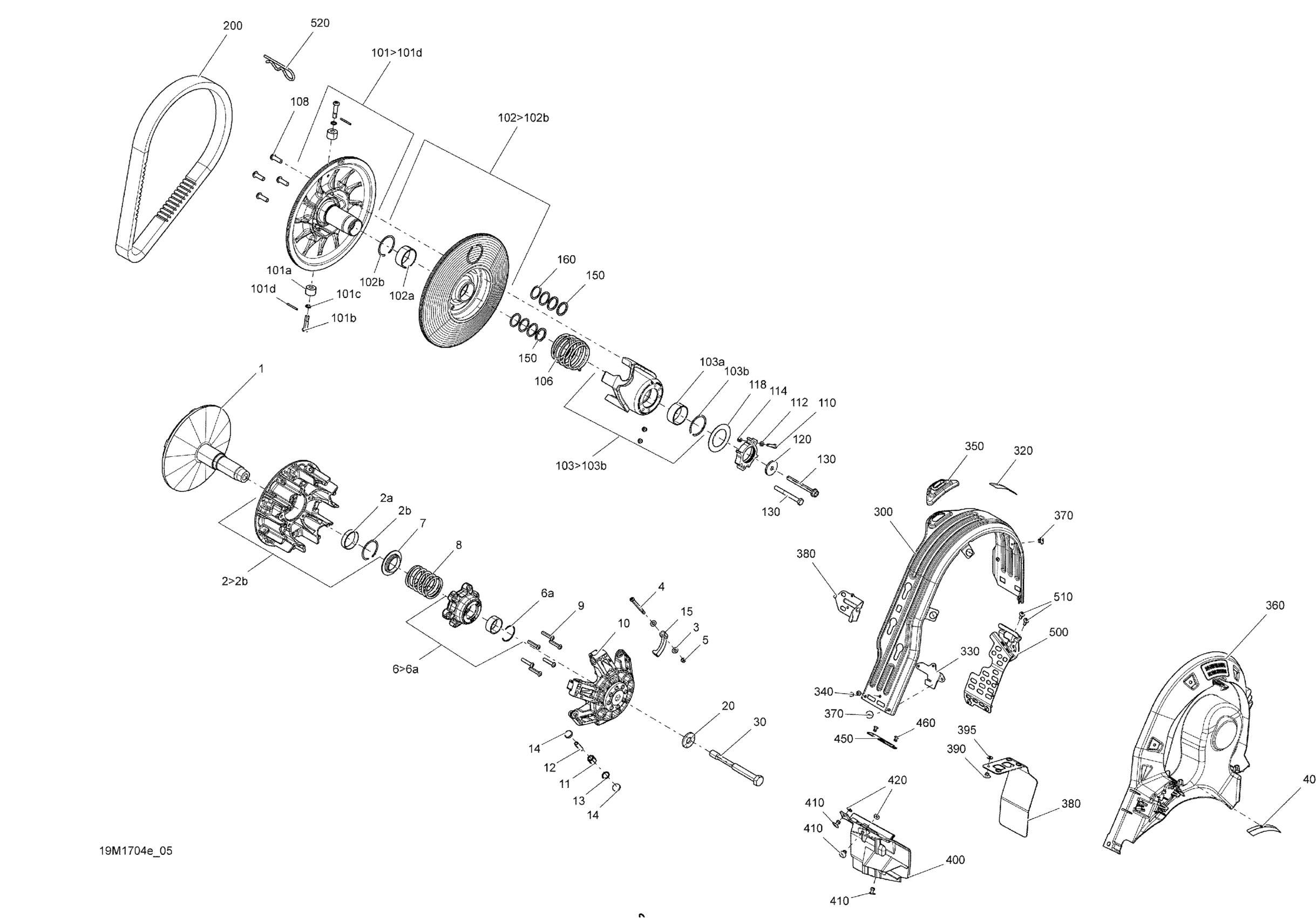

Ski-Doo GRAND TOURING - 4-STROKE, 2017 Pulley System - 600_900 ACE Diagram

#

Description
Price

1

Fixed Flange Ass'y

417224091

$179.97

2>2b

Flange Slide Ass'y

417224044

$198.43

2>2b

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$198.43

2a

Bushing

417222758

$20.74

2b

Circlip

293370037

$3.02

3

Stopper Washer

417223660

$3.11

3

Thrust Washer

417223255

$1.97

4

Ramp Axle

417223694

$4.60

5

Elastic Stop Nut M5

232551414

$0.72

6>6a

Spring Cover Ass'y

417223650

$39.97

6>6a

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$39.97

6a

Circlip

293370065

$0.95

7

Seat Spring

417223752

$13.43

8

Clutch Spring

417224085

$12.31

8

Clutch Spring

417223747

$13.52

9

Torx Screw M6 X 30

250000580

$5.02

10

Governor Cup Ass'y

417223865

$179.97

11

Roller

417224081

$9.98

11

Roller

417223767

$7.37

12

Roller Axle

417223257

$7.74

13

O-Ring

293300185

$0.95

14

Slider Shoe

417223919

$3.68

15

Ramp 749

417224103

$32.28

15

Ramp 716 Ass'y

417223508

$32.28

20

Conical Spring Washer M14

250200144

$3.63

30

Pulley Drive Bolt

417300432

$42.99

40

Decal English

516005503

Unavailable

101>101d

Fixe Flange Ass'y | Includes 100a to 100f

417127351

$327.66

101a

Pulley Roller

417127016

$23.05

101b

Pivot Stud

417127294

$13.58

101c

Lock Washer 8 mm

250200009

$2.06

101d

Spring Pin M3 X 30

250400063

$1.74

102>102b

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

102a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

102b

Circlip

293370049

$4.71

103>103b

Cam Ass'y | Includes 100m to 100q

417127391

$164.99

103>103b

Cam Ass'y | Includes 103 to 103b

417127474

$144.99

103a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

103b

Circlip

293370049

$4.71

106

Release Spring

417127344

$43.82

106

Release Spring

417127467

$44.58

108

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

110

Socket Screw M5 X 25

205052544

$1.34

112

Flat Washer M5

234051410

$0.44

114

Elastic Stop Nut M5

232551414

$0.72

118

Washer

417127155

$8.03

120

Strength Washer

517302322

$11.09

130

Hex. Cap Screw M8 X 75

207287544

$4.24

130

Hex. Cap Screw M8 X 80

207588044

$3.00

150

Spacer

417300252

$5.17

160

Spacer

417300265

$2.12

200

Drive Belt

417300585

$154.58

200

Drive Belt

417300551

$170.99

300

Belt Guard

417300382

$85.35

320

Safety Belt Guard Decal

516005509

Unavailable

330

Front Bracket

417300423

$5.17

340

Avex Rivet

390909200

$0.29

350

Guide

417300381

$9.23

360

CVT Air Duct Pulley

417300440

$27.66

360

CVT Air Duct Pulley

417300440

$27.66

360

CVT AIR DUCT - Call your local BRP dealership | Package SE

417300466

$66.12

370

Pop Rivet 3/16"

293150103

$0.54

380

Stopper

417300445

$8.08

380

Stopper

417300445

$8.08

380

Stopper | Package SE

417300476

$32.28

390

Pop Rivet 3/16"

293150103

$0.54

390

Avex Rivet

390909200

$0.29

390

Avex Rivet

390909200

$0.29

395

Flat Washer

517225900

$0.17

400

Front Support

417300430

$11.20

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

420

Flat Washer

517225900

$0.17

450

Reinforcement Plate

417300421

$4.14

460

Avex Rivet

390909100

$0.29

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

510

Torx Screw M5 X 14

250000742

$1.20

520

Hair Pin

114045200

$10.69
