Description

Price

1

Fixed Flange Ass'y

417224091

$309.99

2>2b

Flange Slide Ass'y

417224044

$294.99

2a

Bushing

417222758

$22.49

2b

Circlip

293370037

$3.19

3

Ramp 749

417224103

$38.99

4

Stopper Washer

417223660

$3.17

5

Ramp Axle

417223694

$11.05

6

Elastic Stop Nut M5

232551414

$0.87

7>7a

Spring Cover Ass'y

417223650

$44.99

7a

Circlip

293370065

$0.98

8

Seat Spring

417223752

$15.27

9

Clutch Spring

417224084

$17.39

10

Torx Screw M6 X 30

250000580

$6.08

11

Governor Cup Ass'y

417223865

$274.99

12

Roller

417224081

$20.49

13

Roller Axle

417223257

$6.99

14

O-Ring

293300185

$0.98

15

Slider Shoe

417223919

$6.83

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt

417300432

$41.49

40

Decal English

516005503

Unavailable

101>101e

Fix Flange Ass'y | Includes 101 to 101e

417127362

$1.00

101a

Pulley Roller

417127016

$24.49

101b

Pivot Stud

417127294

$14.49

101c

Lock Washer 8 mm

250200009

$2.11

101e

Spring Pin M3 X 30

250400063

$2.11

102>102c

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

102a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

102c

Circlip

293370049

$4.99

103>103b

Cam Ass'y | Includes 100c to 100c3

417127476

$138.49

103a

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

103b

Circlip

293370049

$4.99

106

Release Spring

417127467

$46.49

108

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

110

Socket Screw M5 X 25

205052544

$1.68

115

Flat Washer M5

234051410

$0.53

118

Elastic Stop Nut M5

232551414

$0.87

120

Washer

417127155

$8.26

130

Ball Bearing

504152574

$35.99

200

Drive Belt

417300551

$179.99

300

Belt Guard

417300382

$90.99

320

Safety Belt Guard Decal

516005509

Unavailable

330

Front Bracket

417300467

$16.49

340

Avex Rivet

390909200

$0.30

350

Guide

417300381

$11.99

360

CVT AIR DUCT - Call your local BRP dealership | Package SE

417300466

$71.99

360

CVT AIR DUCT - Call your local BRP dealership | Package LE

417300475

Unavailable

370

Pop Rivet 3/16"

293150103

$0.55

380

Stopper | Package SE

417300476

$33.99

390

Pop Rivet 3/16"

293150103

$0.55

395

Flat Washer

517225900

$0.18

400

Front Support

417300430

$14.49

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

420

Flat Washer

517225900

$0.18

450

Reinforcement Plate

417300421

$4.39

460

Avex Rivet

390909100

$0.30

500

BELT GUARD BRACKET - Call your local BRP dealership

417300361

Unavailable

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11

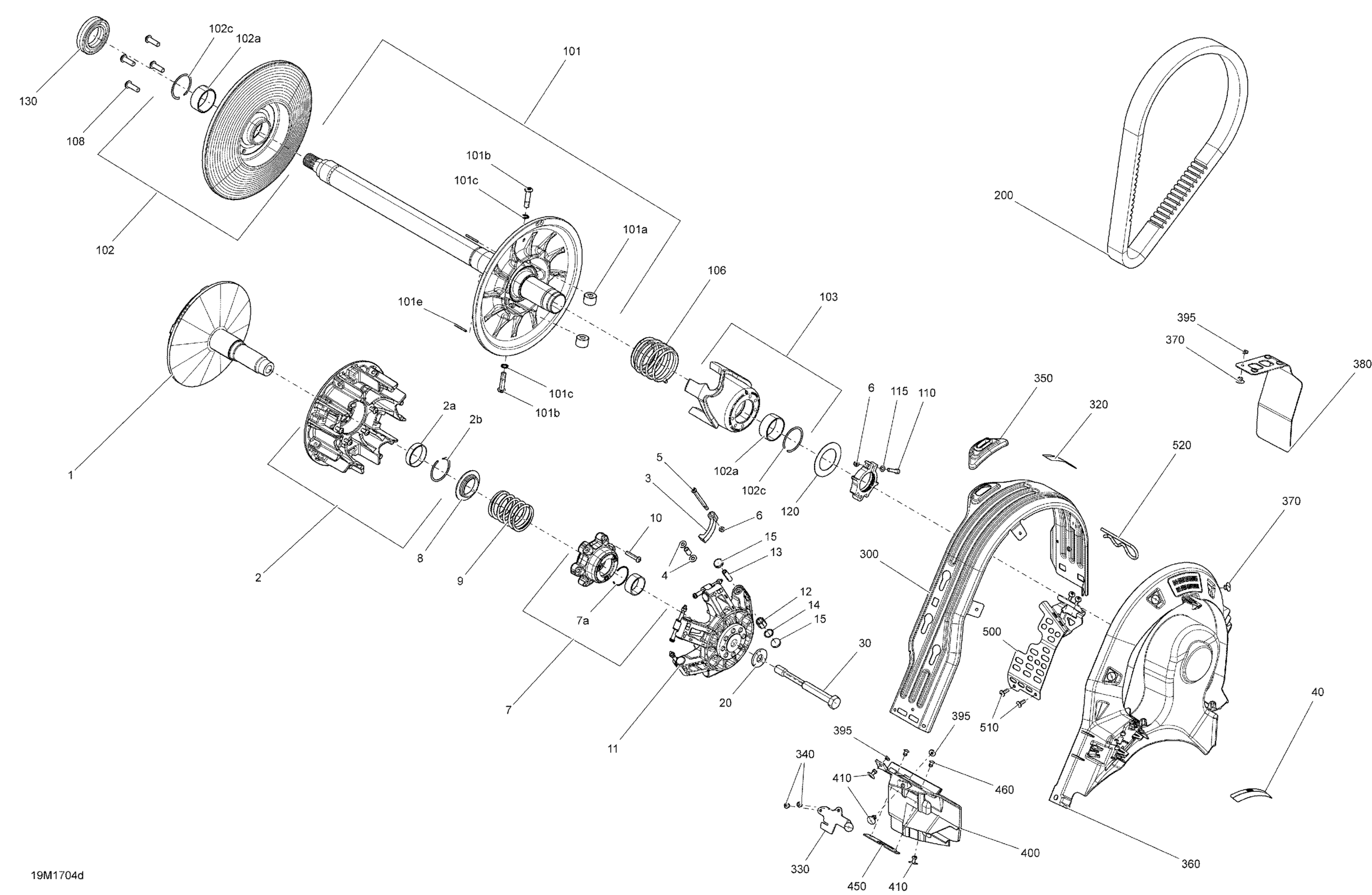

Ski-Doo GRAND TOURING - 4-STROKE, 2017 05- Pulley System - 1200 4-TEC Diagram

Fixed Flange Ass'y

Flange Slide Ass'y

Bushing

Circlip

Ramp 749

Stopper Washer

Ramp Axle

Elastic Stop Nut M5

Spring Cover Ass'y

Circlip

Seat Spring

Clutch Spring

Torx Screw M6 X 30

Governor Cup Ass'y

Roller

Roller Axle

O-Ring

Slider Shoe

Conical Spring Washer M14

Pulley Drive Bolt

Decal English

Fix Flange Ass'y | Includes 101 to 101e

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin M3 X 30

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Release Spring

Button Head Torx Screw M8 X 25 S.Gr

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Safety Belt Guard Decal

Front Bracket

Avex Rivet

Guide

CVT AIR DUCT - Call your local BRP dealership | Package SE

CVT AIR DUCT - Call your local BRP dealership | Package LE

Pop Rivet 3/16"

Stopper | Package SE

Pop Rivet 3/16"

Flat Washer

Front Support

Pop Rivet 3/16" | DS 650 X

Flat Washer

Reinforcement Plate

Avex Rivet

BELT GUARD BRACKET - Call your local BRP dealership

Torx Screw M5 X 14

Hair Pin
