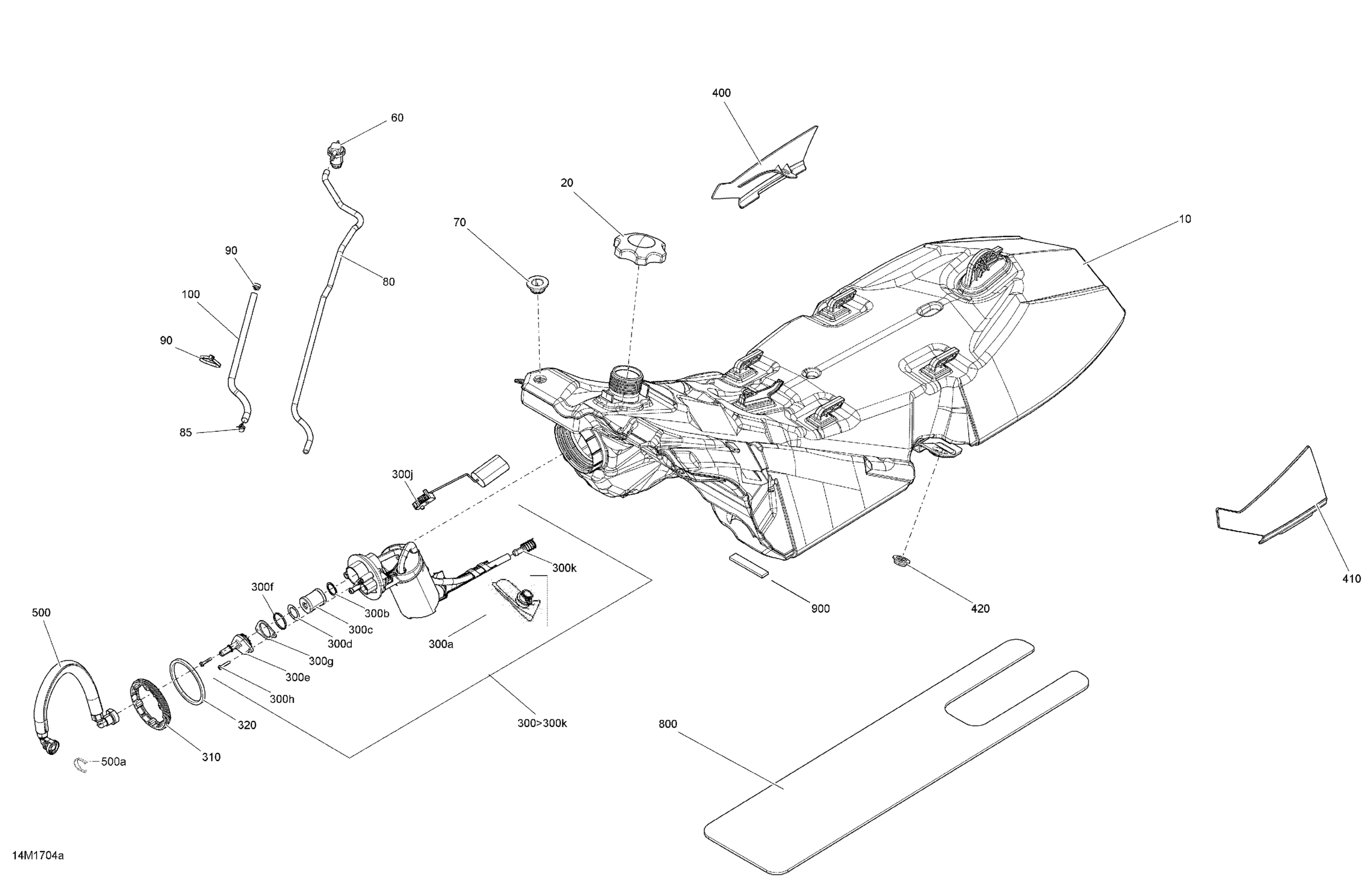

Ski-Doo GRAND TOURING - 4-STROKE, 2017 Fuel System - All Models Diagram

Description

Price

Fuel Tank

513033667

$304.45

Fuel Tank Cap

513033969

$24.60

Fuel Tank Cap | Europe Models

513033721

$24.60

Check Valve

513033842

$32.81

Grommet

513033596

$17.88

Polyurethane Hose 10000Mm Long

219704410

$52.96

Spring Clamp

414554800

$0.81

Tie-Rap 180 mm

414115200

$0.10

100

Protector Tube

504153074

$12.21

300>300k

PUMP FUEL | Includes 300 to 300k This part replaces 513033838.

513034260

$249.97

300a

Fuel Filter

415129451

$23.10

300b

O-Ring

415129511

$16.39

300c

Fuel Filter

415129510

$23.10

300d

Wave Washer

415129512

$17.88

300e

Cover

415129685

$29.07

300f

O-Ring

415129509

$17.88

300g

Fuel Pump Ring

415129569

Unavailable

300h

Screw

415129513

$8.73

300j

Fuel Level Sensor

415130108

$136.54

300k

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

310

Ring

513033180

$17.13

320

Gasket

513033334

$22.36

420

Shoulder Bushing

513033326

$12.24

500

Hose Ass'y | Includes 500 to 500a

513033582

$70.87

500

Hose Ass'y | Includes 27 to 28

513033583

$75.34

500a

Locking Clip

513033135

$4.96

800

Insulating Foam

513033588

$12.24

900

Gasket

513033813

$3.19
