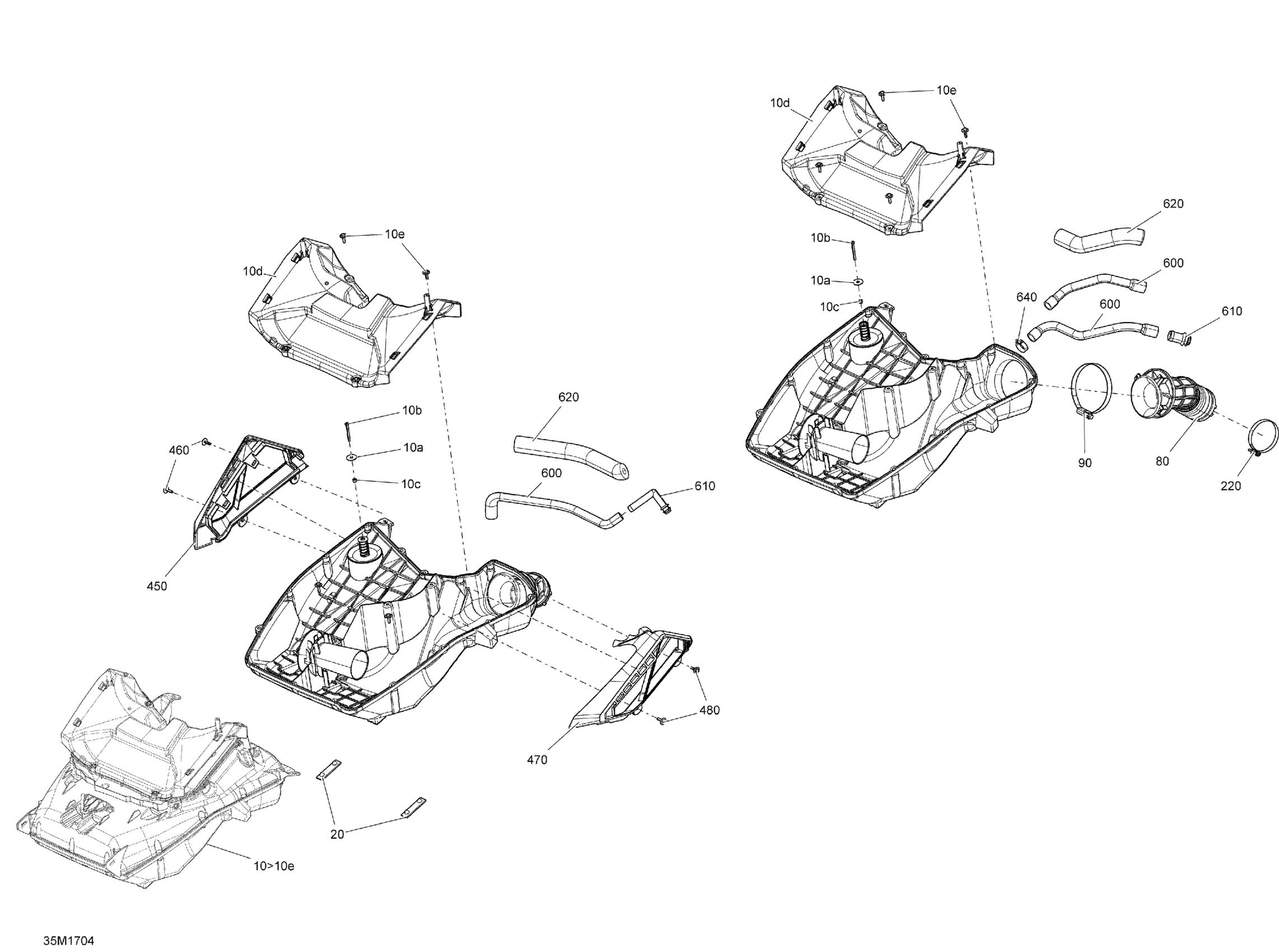

Ski-Doo GRAND TOURING - 4-STROKE, 2017 Air Intake System - All Models Diagram

Description

Price

Secondary Chamber Ass'y | Includes 10 to 10e

508000747

$186.89

10a

Flat Washer

224060201

$1.15

10b

Socket Head Screw M4 X 40

205444056

$1.74

10c

Elastic Stop Nut M4

232541414

$0.48

10d

Air Duct

508000732

$45.35

10e

Screw M4 X 16

250000725

$2.87

Stopper

508000744

$2.08

Intake Hose | Engine 1200 4-TEC

508000791

$42.28

Intake Hose

508000827

$42.28

Norma Clamp

514052924

$10.58

220

Gemi Clamp

293650229

$10.52

450

RH Air Filter

508000730

$40.74

460

Screw M4 X 16

250000725

$2.87

470

LH Air Filter

508000731

$40.74

480

Screw M4 X 16

250000725

$2.87

600

Hose Vent

508000746

$15.35

600

Formed Vent Hose

508000774

$15.35

600

Fan Hose

508000792

$24.58

610

Breather Valve

273000234

$10.63

610

Breather

508000811

$12.58

620

Insulating Tube | Engine 1200 4-TEC

508000582

$15.35

620

Tube Isolator

508000648

$15.35

640

Tridon Gear Clamp

293650172

$2.68
