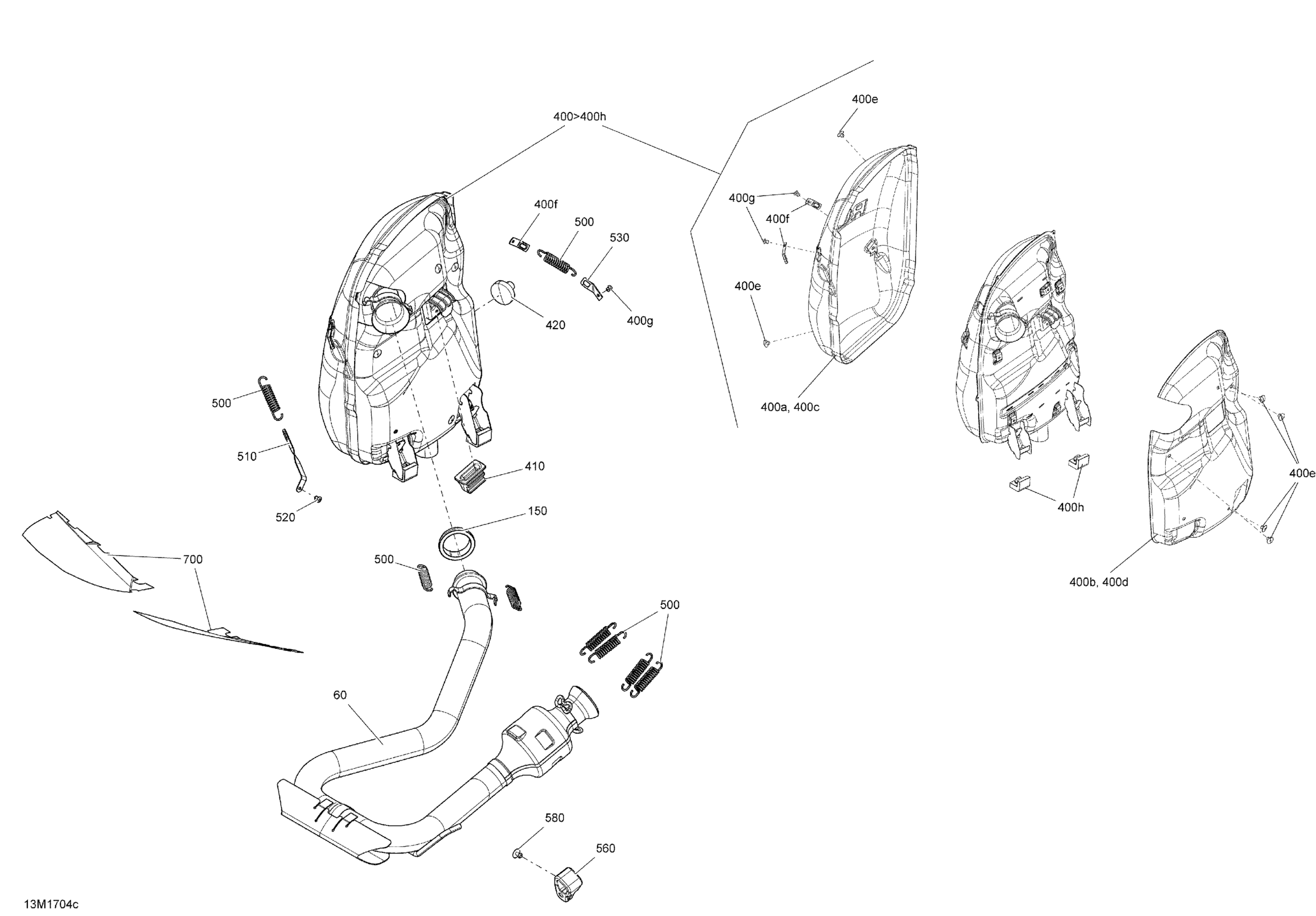

Ski-Doo GRAND TOURING - 4-STROKE, 2017 Exhaust System - 900 ACE Diagram

Description

Price

Welded Pipe

514054960

$403.82

150

Exhaust Gasket

707601033

$13.29

400>400h

Muffler Ass'y | Includes 400 to 400h

514055324

$738.43

400a

RH Heat Shield

514055325

$54.58

400b

LH HEAT SHIELD - Call your local BRP dealership

514055128

Unavailable

400c

RH Insulating Wool

514054769

$11.63

400d

LH Insulating Wool

514054881

$13.77

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Spring Bracket

514054522

$6.28

400g

Avex Rivet

390909200

$0.29

400h

Lower Stopper

514054496

$26.12

410

UPPER STOPPER - Call your local BRP dealership

514055298

Unavailable

420

Rubber Bumper

514053654

$49.20

500

Spring

415107100

$6.20

510

Spring Bracket

514055030

$10.55

520

Stavex Rivet

293150144

$0.77

530

Spring Bracket

514055037

$10.55

560

Rubber

514055012

$26.12

580

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

700

HEAT SHIELD - Call your local BRP dealership

514054999

$9.46
