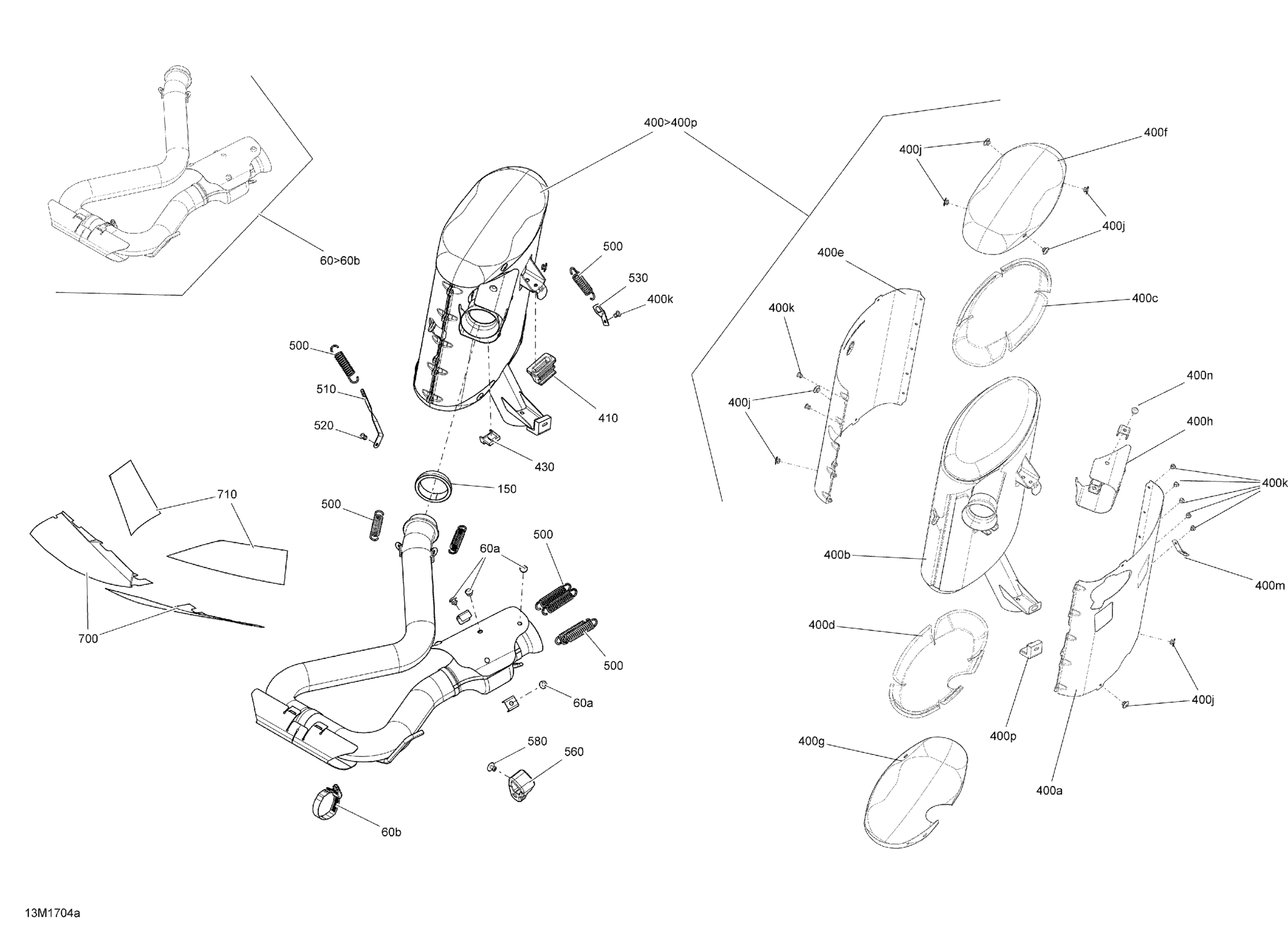

Ski-Doo GRAND TOURING - 4-STROKE, 2017 01- Exhaust System - 1200 4-TEC Diagram

Description

Price

60>60b

Exhaust Pipe | Includes 60 to 60b

514055309

$890.49

60a

Rivet 6,4 mm

293150173

$4.29

60b

Tridon Clamp

293650036

$7.49

150

Exhaust Gasket

514054174

$28.49

400>400p

Muffler Ass'y | Includes 400 to 400m

514055371

$1.00

400a

SHELL - Call your local BRP dealership

514055383

Unavailable

400b

Wool

514055239

$19.99

400c

Wool

514055240

$16.99

400d

Wool

514055241

$16.99

400e

SHELL - Call your local BRP dealership

514055390

Unavailable

400f

Upper Cap

514055242

$15.99

400g

LOWER CAP - Call your local BRP dealership

514055372

Unavailable

400h

Deflector

514055245

$24.99

400j

Pop Rivet 3/16”

390910000

$0.57

400k

Avex Rivet

390909200

$0.30

400m

Spring Bracket

514054522

$8.45

400n

Rivet 6,4 mm

293150173

$4.29

400p

Lower Stopper

514054274

$20.49

410

UPPER STOPPER - Call your local BRP dealership

514055298

Unavailable

430

FRONT RUBBER - Call your local BRP dealership

514055187

Unavailable

500

Spring

415107100

$6.35

510

Spring Bracket

514055030

$13.10

520

Stavex Rivet

293150144

$0.82

530

Spring Bracket

514055037

$13.10

560

Rubber

514055012

$26.49

580

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

700

HEAT SHIELD - Call your local BRP dealership

514054999

$12.49

710

HEAT SHIELD - Call your local BRP dealership

514055271

$12.49
