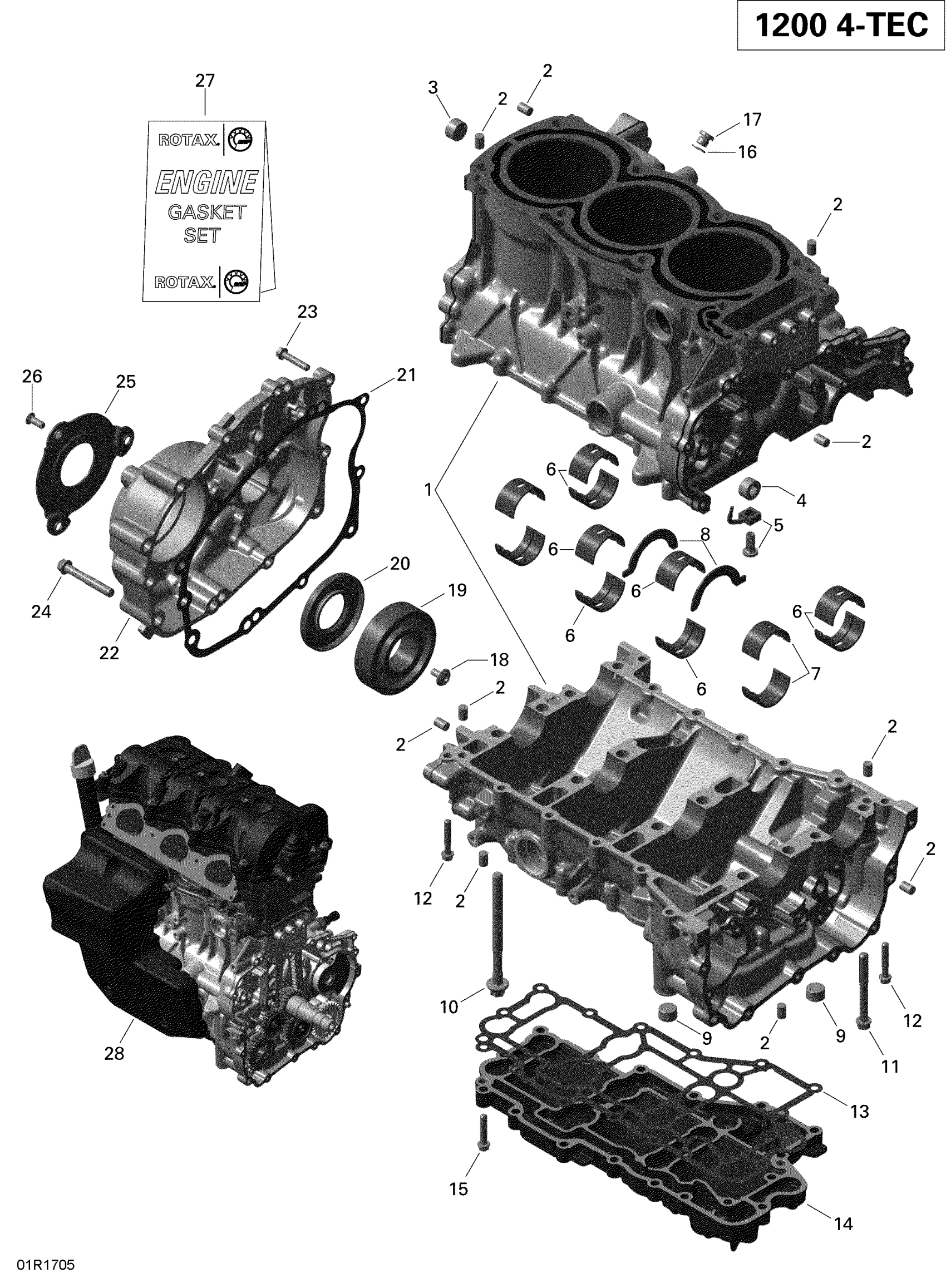

Ski-Doo GRAND TOURING - 4-STROKE, 2017 Crankcase - 1200 iTC 4-TEC Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 7

420891887

$2,057.43

2

Center Pin 8 X 12

420632010

$3.52

3

Plug Screw M18 X 1.5

420840415

$12.43

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.01

5

OIL SPRAY NOZZLE - Call your local BRP dealership This part replaces 420956774.

420956826

Unavailable

6

Plain Bearing

420933852

$17.88

7

Plain Bearing

420933862

$18.63

8

Ring Half

420933140

$10.21

9

SCREW PLUG M16 X 1.5 - Call your local BRP dealership

420240178

Unavailable

10

Torx Flange Screw M9 X 113

420940945

$11.96

11

Torx Flange Screw M8 X 70

420840211

$8.09

12

Torx Flange Screw M6 X 35

420440274

$0.96

13

Gasket

420430770

$22.36

14

OIL SUMP COVER - Call your local BRP dealership

420611822

Unavailable

15

FLANGED TORX SCREW M6 X 30 - Call your local BRP dealership

420440649

Unavailable

16

Oil Seal

420230150

$2.85

17

Plug Screw M10 X 1

420641733

$12.15

18

Hex Flat Head Screw M6 X 13 T30

420241537

$3.01

19

Ball Bearing

420432125

$109.67

20

Oil Seal

420431402

$17.88

21

Gasket

420430760

$17.13

22

PTO Cover

420611845

$188.03

23

Torx Flange Screw M6 X 30

420440647

$1.91

24

Torx Flange Screw M8 X 55

420641213

$7.01

25

Oil Seal Cover

420910240

$14.90

26

Countersunk Screw M6 X 16

420440906

$3.01

27

Engine Gasket Kit

420893054

$599.97

28

Long Block 1203

420120303

$5,769.99

28

REBUILT - Long Block1203

421000678

Unavailable
