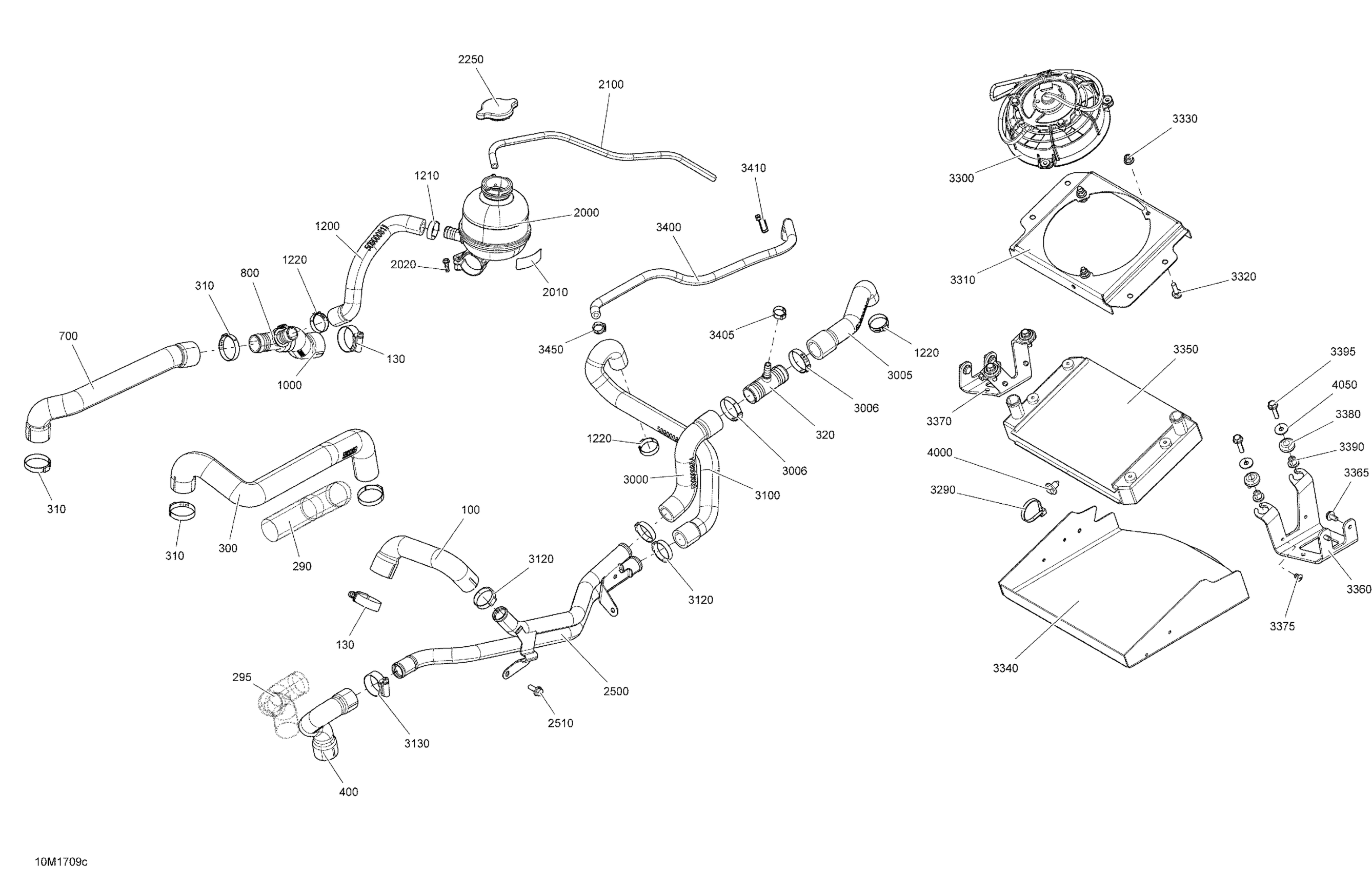

Ski-Doo GRAND TOURING - 4-STROKE, 2017 Cooling System - 600_900 ACE Diagram

#

Description
Price

100

Engine Outlet Hose | Engine 900 ACE Except Expedition

509000863

$19.20

100

Engine Outlet Hose | North America

509000913

$16.89

100

Engine Outlet Hose

509000932

$17.66

130

Aba Gear Clamp, 26-38 MM

509000443

$5.68

290

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

295

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

300

Radiator Hose

509000859

$35.35

310

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

320

T-Fitting

509000510

$11.52

400

Engine Outlet Hose

509000888

$18.43

700

Radiator Return Hose

509001062

$14.54

710

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

800

T-Fitting

509000372

$7.87

1000

Engine Inlet Hose | Engine 900 ACE

509000864

$13.58

1000

Radiator Hose

509000921

$12.72

1010

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

1020

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1200

Filling Hose

509001063

$13.58

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1220

Crimp Clamp

293650099

$4.60

2000

Cooling Tank

509000875

$86.89

2000

Cooling Tank

509000881

$86.89

2000

Cooling Tank

509000881

$86.89

2010

Warning Decal

516005904

Unavailable

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

2100

Hose

509000775

$9.86

2250

Radiator Pressure Cap

509000180

$11.69

2500

Water Pipe

509000800

$105.35

2510

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

3000

Radiator Hose

509000854

$14.57

3005

Radiator Hose

509000862

Unavailable

3006

Gear Clamp

509000162

$5.84

3010

Crimp Clamp

293650099

$4.60

3100

Radiator Hose

509000855

$22.28

3110

Crimp Clamp

293650099

$4.60

3120

Oetiker Clamp

293650141

$4.28

3130

Gear Clamp

509000931

$12.52

3290

Tie-Rap 180 mm

414115200

$0.09

3300

Fan

709200573

$241.51

3310

Fan Support

509000714

$49.20

3320

Hex. Flange Screw M6 X 20

207662044

$1.66

3330

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3340

Air Inlet Deflector

509000835

$94.58

3350

Radiator

509000488

$330.74

3360

Support

509000933

$37.66

3365

Hex. Flange Screw M6 X 16

207661644

$0.61

3370

Support

509000934

$37.66

3375

Avex Rivet

390909100

$0.29

3380

Grommet

709000582

$4.38

3390

Bushing

293900100

$6.31

3395

Hex. Flange Screw M6 X 25

207562544

$1.39

3400

Breather Hose

509000860

$23.05

3405

Crimp Clamp, 15.3-706R

293650047

$2.64

3410

Tie Wrap 142 mm

293750002

$0.88

3450

Oetiker Gear Clamp

293650025

$2.46

4000

Mount Dart

293730040

$0.86

4010

Tie-Rap 180 mm

414115200

$0.09

4050

Flat Washer

250200082

$0.35
