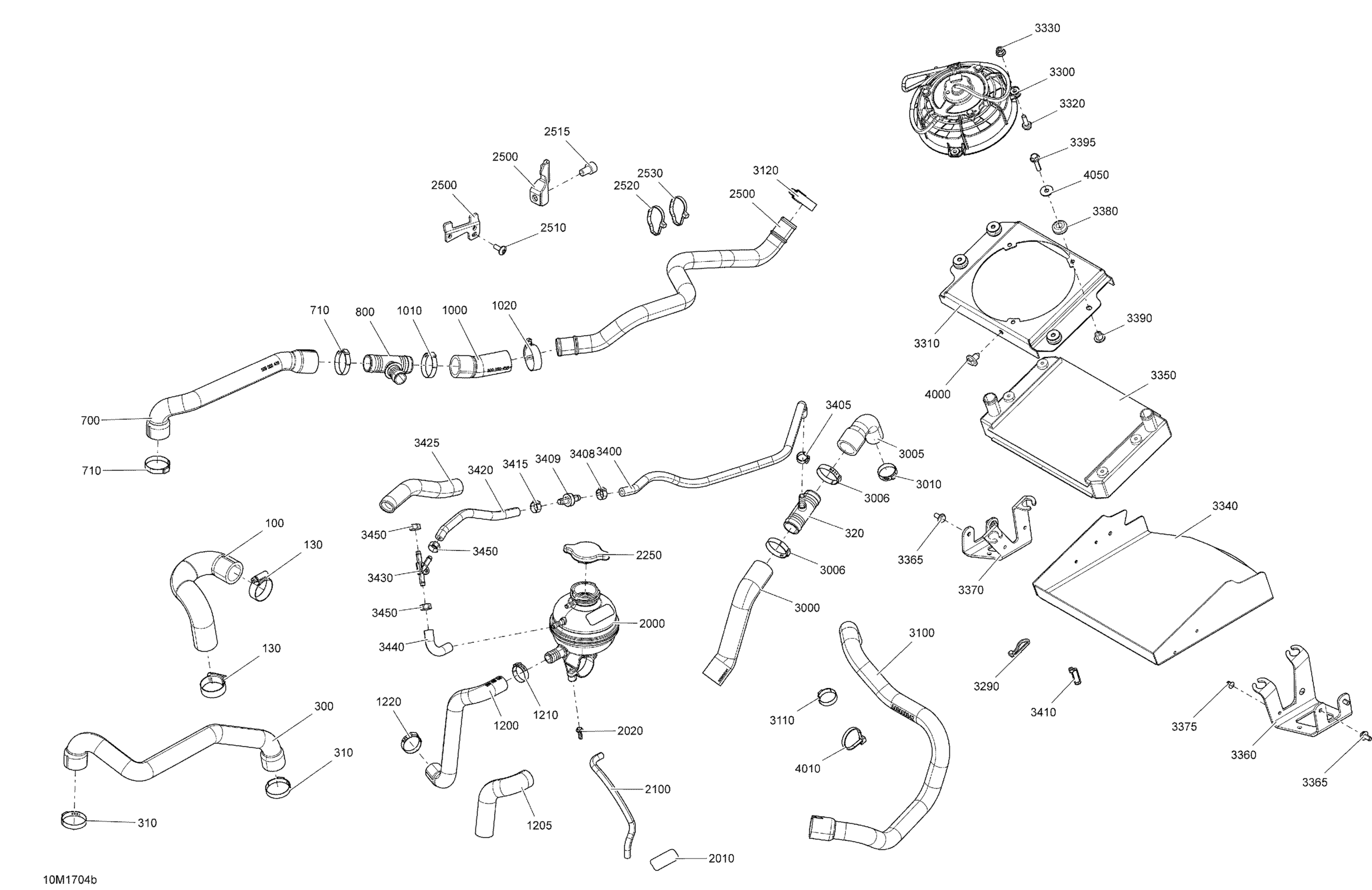

Ski-Doo GRAND TOURING - 4-STROKE, 2017 01- Cooling System - 1200 4-TEC Diagram

Outlet Hose

509000440

$19.99

Aba Gear Clamp, 26-38 MM

509000443

$12.72

RADIATOR HOSE - Call your local BRP dealership

509000370

Unavailable

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

T-Fitting

509000510

$13.16

Radiator Hose

509000439

$24.49

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

T-Fitting

509000372

$10.33

Radiator Hose

509000438

$19.99

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

Aba Gear Clamp, 26-38 MM

509000443

$12.72

Hose

509000441

$24.99

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

Crimp Clamp

293650099

$4.29

-Coolant Tank

509000937

$92.99

Warning Decal

516005904

Unavailable

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Hose 6 Mm 15000Mm Long

219704360

$132.49

Radiator Pressure Cap

509000180

$20.49

WATER PIPE - Call your local BRP dealership

509000938

Unavailable

Torx Screw M6 X 16

250000365

$2.11

Socket Screw M10 X 16

205501644

$4.29

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 180 mm

414115200

$0.11

RADIATOR HOSE - Call your local BRP dealership

509000941

Unavailable

Radiator Hose

509000944

$20.49

Gear Clamp

509000162

$7.29

Crimp Clamp

293650099

$4.29

RADIATOR HOSE - Call your local BRP dealership

509000942

Unavailable

Crimp Clamp

293650099

$4.29

Aba Gear Clamp, 26-38 MM

509000443

$12.72

Tie-Rap 180 mm

414115200

$0.11

Fan

709200573

$259.99

Fan Support

509000714

$52.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Air Inlet Deflector

509000835

$99.99

Radiator

509000488

$338.99

Support

509000933

$38.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Support

509000934

$38.99

Avex Rivet

390909100

$0.30

Grommet

709000582

$4.69

Bushing

293900100

$7.65

Hex. Flange Screw M6 X 25

207562544

$1.69

BREATHER HOSE - Call your local BRP dealership

509000940

Unavailable

Crimp Clamp, 15.3-706R

293650047

$3.29

Oetiker Clamp

293650125

$3.29

Check Valve

509000153

$19.99

Tie Wrap 142 mm

293750002

$1.25

Oetiker Clamp

293650125

$3.29

Hose-formed

509001069

$15.28

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Y-Fitting

293710140

$8.11

Hose

509001070

$13.16

Oetiker Clamp

293650046

$2.89

Mount Dart

293730040

$1.04

Tie-Rap 180 mm

414115200

$0.11

Flat Washer

250200082

$0.42
