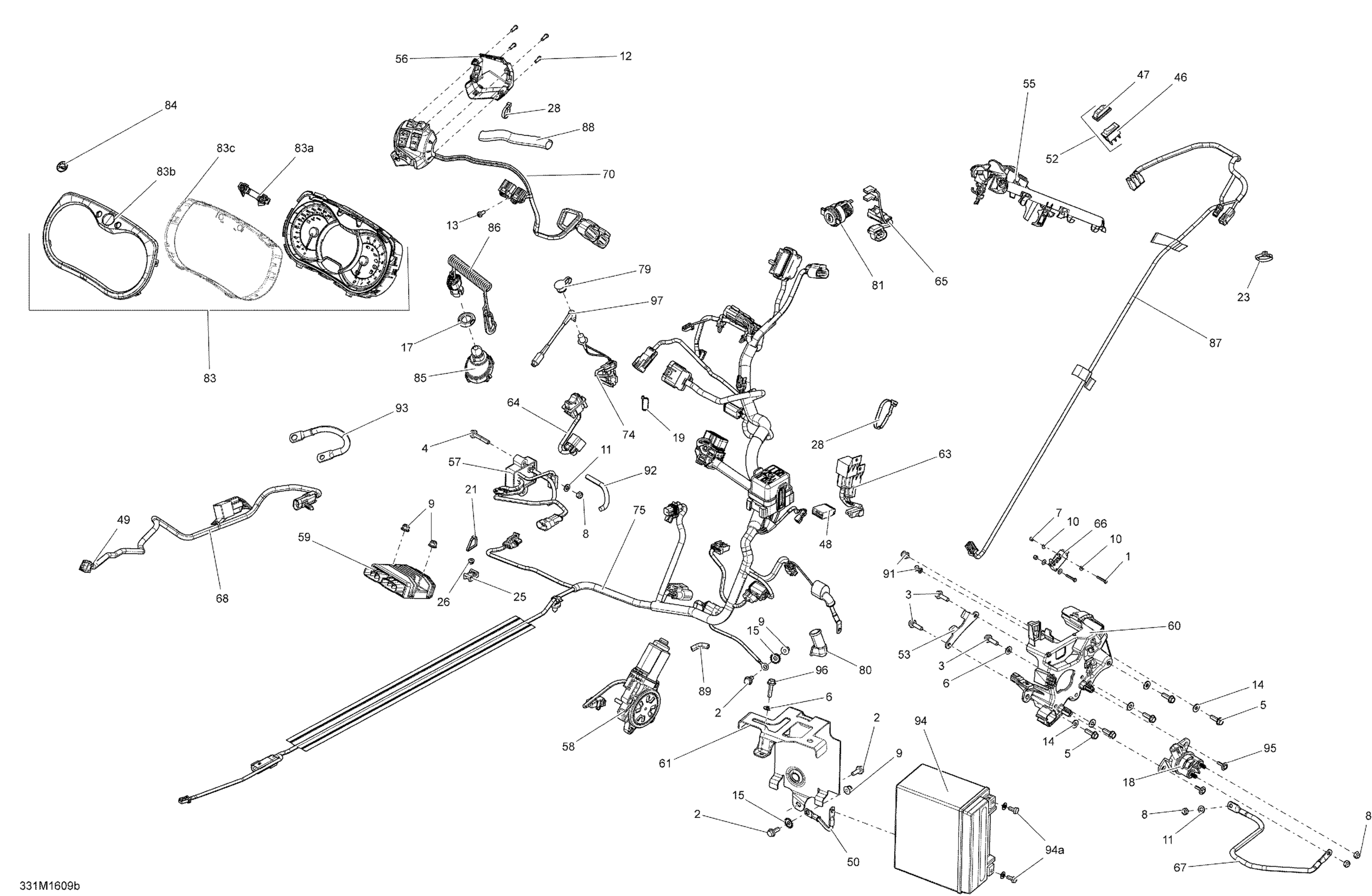

Ski-Doo GRAND TOURING - 4-STROKE, 2016 Electrical System - 1200 4-TEC Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.06

2

Hex. Flange Screw M6 X 16

207661644

$0.61

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Screw M6 X 35

207663544

$0.74

5

Hex. Flange Screw M6 X 20

210262040

$2.06

6

Flat Washer

224061121

$0.44

7

Elastic Stop Nut M3

232531423

$0.54

8

Elastic Stop Nut M6

232561434

$1.55

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Flat Washer M3, Stainless

234032600

$0.54

11

Flat Washer 6 mm

234061410

$1.04

12

Torx Screw

250000671

$0.83

13

Pan Screw Forming, 7500C

250000690

$2.06

14

Flat Washer

250200039

$0.72

15

Lock Washer Serrated M6

250200041

$0.92

17

Safety Nut (DESS Switch)

278002963

$2.72

18

Starter Relay

278003012

$35.07

19

Tie Wrap 94 mm | 4X4

293750001

$0.83

21

Tie Wrap 142 mm

293750002

$0.88

23

Tie Wrap 368 mm

293750008

$0.85

25

Tie Rap Mount (screwable)

515176795

$5.11

26

Avex Rivet

390909200

$0.29

28

Tie-Rap 180 mm

414115200

$0.09

46

Rocker Switch

510004413

$8.57

47

Switch Protector

510004414

$7.37

48

Male Terminal Housing, 6 Circuits

515175662

$8.57

49

Male Terminal Housing, 4 Circuits

515175846

$8.57

50

Ground Wire

515176358

$26.12

52

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

515176844

Unavailable

53

PLATE - Call your local BRP dealership

515177039

Unavailable

55

Connector Plate

515177134

$14.02

56

Housing Plate

515177147

$17.66

57

Compressor Module

515177234

$414.99

58

Electrical Motor Ass'y

515178574

$245.35

59

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

60

Plate

515177347

$13.82

61

Battery Support

515177348

$29.97

63

Reverse Harness | Reverse Harness

515177350

$58.43

64

Switch

515177394

$75.35

65

12 Volts Outlet Harness

515177400

$32.28

66

Switch Ass'y

515177460

$47.99

67

BATTERY WIRE - Call your local BRP dealership

515177535

Unavailable

68

Fan Harness

515177646

$51.51

70

LH Switch Housing

515178197

$259.20

74

Visor Harness

515177837

$32.28

75

WIRING HARNESS ASSY - Call your local BRP dealership

515177993

Unavailable

79

Cap

572103300

$9.65

80

Protector Cap

710000495

$10.14

81

DC Outlet

710001248

$31.17

83

Indicator | Except Package SWT

515177913

$535.35

83a

Speedometer Button | XTP

415129355

$13.94

83c

Lens | XTP

415129349

$23.05

83b

Gauge Ring

415129348

$11.71

84

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

85

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

86

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

86

Key

860201162

$69.20

87

Seat Harness

515178203

$36.12

88

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

89

Trim 1000Mm Long

219704354

$14.74

91

Rivet

515177929

$2.12

92

Tubing 6 Mm 3000Mm Long

219704425

$13.14

93

Ground Wire

515177014

$15.35

94

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

94a

Battery Bolt Kit

250000282

$2.95

95

Screw M4 X 16

250000725

$2.87

96

Hex. Flange Screw M6 X 25

250000793

$1.74

97

Extension

515175851

$10.88
