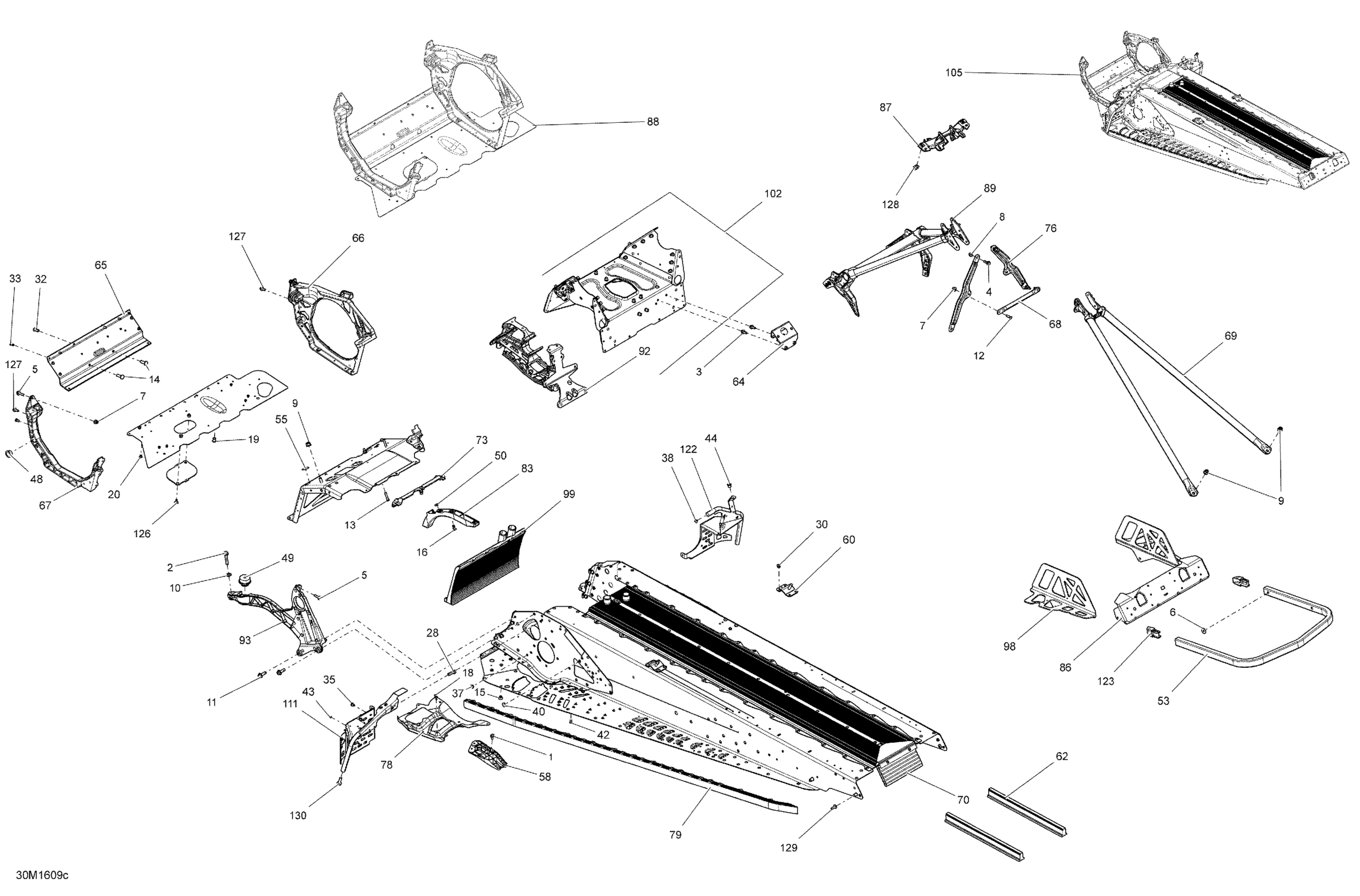

Ski-Doo GRAND TOURING - 4-STROKE, 2016 Frame - 600-900 ACE Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

Hex. Flange Screw, Scotch Grip

207584034

$2.00

Hex. Flange Screw M6 X 16

207661644

$0.70

Hex. Flange Screw M6 X 20

207662044

$1.91

Hex. Flange Screw M6 X 25

207662544

$0.61

Flat Washer

224061201

$1.27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Hex. Flange Elastic Nut M8

233281414

$1.31

Conical Spring Washer M8

234281474

$1.43

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

Clinch Stud M6 X 20

250300027

$1.87

Clinch Stud M6 X 30

250300031

$1.87

Clinch Stud

250300038

$3.88

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Pop Rivet 3/16”

293150108

$1.19

Hemlock Rivet, 6.5 mm

293150119

$3.88

Hemlock Rivet 6.5 mm

293150120

$7.01

Stavex Rivet

293150144

$0.75

Henrob Rivet

293150146

$1.87

Hemlock Rivet, 6.4 mm

293150174

$6.24

Monobolt Rivet 6.4

293150182

$2.82

Monobolt Rivet, 4.8 mm

293150191

$0.93

Insert M5 X 0.8

293450268

$1.90

Full Moon Dart 8 mm

293730041

$2.06

Black, Dart 8 mm

293730047

$2.07

Full Moon Dart 5 mm

293730042

$2.06

Full Moon Dart 10 mm

293730059

$4.28

Avex Rivet

390909100

$0.28

Avex Rivet

390909200

$0.28

Insert

293450275

$11.36

Leg Cushion

505073317

$5.75

Vibration Damper

512061516

$55.94

Washer

517124300

$0.18

Clear Rear Bumper

518324980

$94.00

BLACK REAR BUMPER - Call your local BRP dealership

518327401

Unavailable

Clear Rear Bumper | Sport

518325577

$106.69

Adhesive Patch

518325560

$4.21

RH Deflector, Black Polypropylene

518325782

$11.42

LH Deflector, Black Polypropylene

518325783

$11.42

RH Rear Base

518325973

$17.88

LH Rear Base | Includes 10v to 10x

518325974

$17.88

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

Engine Support

518326178

$61.16

Front Member

518326198

$58.18

RH Side Member

518326328

$252.21

LH Side Member

518326330

$252.21

Center Column Support

518326355

$20.12

Rear Member

518326559

$237.28

Rear Radiator Ass'y, 137" | SPORT

518326641

$679.07

Seal

518326656

$8.18

Upper Column Support

518326848

$12.67

RH Reinforcement, Running Board

518326937

$24.60

LH Reinforcement, Running Board

518326938

$24.60

RH Roller

518327093

$76.99

LH Roller

518328429

$170.12

RH Roller

518328124

$170.12

LH ROLLER - Call your local BRP dealership

518328125

Unavailable

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

Rear Cap

518327105

$20.12

Sub A Support

518327145

$76.84

E Module | Includes 10ad to 10ap

518328078

$461.16

Front Member

518327565

$306.69

Front Suspension Support

518327487

$259.67

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

RH SUSPENSION BRACKET - Call your local BRP dealership

518327858

Unavailable

LH Suspension Bracket

518327859

$73.10

RH Bracket | Sport

518328787

$73.10

LH Bracket | Sport

518328788

$71.61

Front Radiator Ass'y | Includes 10a to 10b

518327907

$502.21

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

FRAME ASS'Y 137 - Call your local BRP dealership This part replaces 415130100.

415130037

Unavailable

FRAME GTX - Call your local BRP dealership | Includes 10 to 10aw

415130265

Unavailable

LH Stirup | Includes 10s to 10t

518328528

$155.94

RH Stirup | Includes 10p to 10q

518328942

$155.94

Full Moon Cap

520000567

$8.36

Full Moon RH Cap

520000711

$8.34

Full Moon LH Cap

520000712

$8.34

Torx Truss Screw M6 X 12

250000767

$1.91

Hex. Flange Screw M6 X 16

210261650

$1.40

Panel Nut M5 X 0.8

250000958

$4.00

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81
