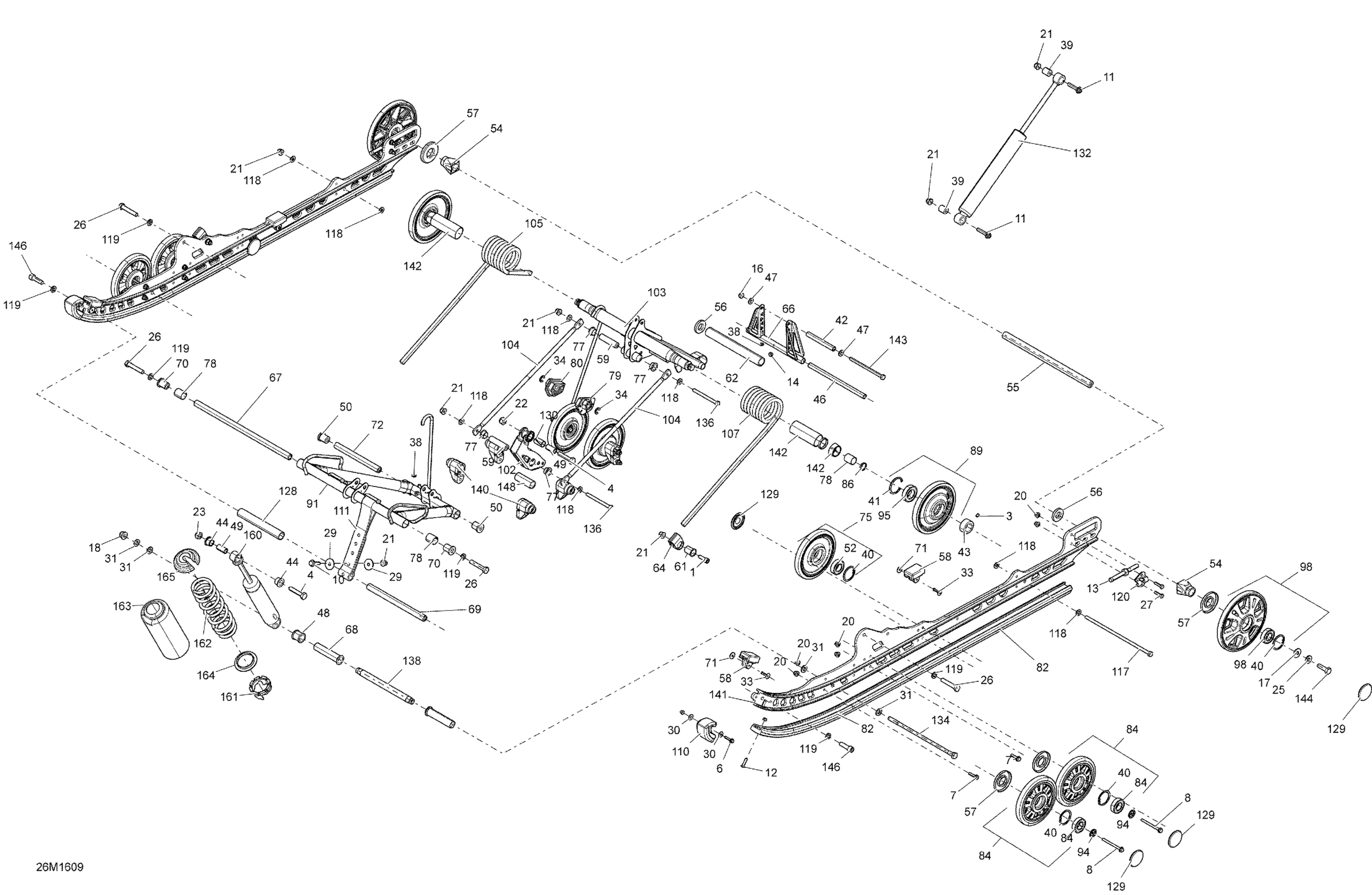

Ski-Doo GRAND TOURING - 4-STROKE, 2016 Rear Suspension - Package Sport Diagram

#

Description
Price

1

Socket Screw M8 X 25

205082554

$1.74

3

Socket Set Screw M6 X 8

206260844

$1.25

4

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Screw M6 X 25

207662556

$3.61

8

Hex. Flange Screw M6 X 70

207667056

$3.61

10

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

11

Hex. Flange Screw M8 X 40

207684044

$1.25

12

Phillips Screw M6 X 25

208562531

$1.74

13

Hex Screw M10 x 100

230100054

$5.29

14

Hexagonal Nut M6

232061404

$0.32

15

Elastic Stop Nut M6

232561434

$1.55

16

Hex. Elastic Stop Nut M8

232581414

$0.47

17

Washer

503191910

$2.25

18

Flange Elastic Nut M10

233201466

$2.63

19

Flange Elastic Nut M5

233251434

$1.66

20

Hex. Flange Elastic Nut M6

233261466

$1.66

21

Elastic Flange Nut M8

233281466

$0.83

22

Elastic Locking Nut M10 X 1.5

233601416

$1.68

23

Elastic Locking Nut M10

233601466

$1.74

25

Conical Spring Washer 10 mm

234201474

$1.39

26

Hex. Screw S.Grip M10 X 55

250000605

$6.18

27

Hex Screw M6 X 25

250000619

$0.83

29

Flat Washer 8 mm

250200128

$1.74

30

Washer

250200140

$0.83

31

Flat Washer

250200143

$2.63

33

Pop Rivet 3/16"

293150013

$1.11

34

E-Circlip

293370013

$0.62

36

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

37

Loctite 243, 10 ml

293800060

$20.77

38

Grease Fitting

408200700

$2.80

39

Bushing

414936000

$11.55

40

Retaining Ring

415129371

$8.92

41

Retaining Ring

415129780

$13.88

42

Upper Axle, Pivot Arm

503144300

$11.98

43

Retaining Ring

503168800

$12.65

44

Urethane Bushing

503189117

$6.88

46

Pivot Arm Axle

503189156

$20.74

48

Bushing

503189271

$10.46

49

Bushing | Includes 240d to 240d1

503189282

$4.18

50

Bushing

503189324

$11.17

52

Ball Bearing | Package-STD

503190396

$7.12

54

Rear Wheel Spacer

503190428

$6.06

55

Rear Axle

503190429

$59.97

56

Washer

503190432

$12.52

57

Labyrinth Seal

503190434

$4.29

58

Rubber Stopper

503190576

$10.23

59

Axle Bar (Long)

503190643

$15.35

61

Spring Support Kit

861805547

$8.14

62

Spacer

503191108

$15.35

64

Spring Support Kit

861805547

$8.14

66

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

67

Upper Shaft

503191215

$36.12

68

Center Bushing

503191259

$8.97

69

Axle Strap

503191260

$29.20

70

Bushing

503191262

$13.60

71

Washer

503191273

$1.06

72

Lower Shaft

503191279

$27.66

75

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

77

Swivel Bushing

503191555

$5.71

78

Extended Bushing

503191556

$5.71

79

LH Cam Adjuster

503191565

$13.95

80

RH Cam Adjuster

503191566

$13.95

82

Slider 137

503191619

$33.05

84

Full Moon Wheel Ass'y, 147 mm

503191624

$46.12

86

Washer

503191651

$7.49

89

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

91

Front Arm | Includes 2000a to 2000b

503191752

$359.97

94

Wheel Cup M6

503191820

$4.66

95

Ball Bearing

503193548

$16.89

98

Full Moon Wheel Ass'y, 180 mm

503191627

$49.97

102

Rocker

503192211

$78.43

103

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$96.89

104

Linkage Rod

503192255

$41.51

105

Black, RH Spring Square

503192270

$78.43

105

Black, RH Spring Square

503193538

$103.05

107

Black, LH Spring Square

503192271

$78.43

107

Black LH Spring, Square

503193539

$103.05

110

Runner Protector

503192299

$23.82

111

Stopper Strap

503192360

$19.97

117

Bolt M8 X 248mm

503192440

$29.97

118

Washer

503192494

$3.11

120

Tensioner

503192583

$5.85

128

Spacer

503196943

$7.58

129

Black, Wheel Cap

503192771

$2.28

130

Bushing

503193037

$15.35

132

Rear Shock HPG Seal

503193190

$238.43

132

Rear Shock

503194138

$238.43

134

Bolt M10 X 251MM

503193227

$16.12

136

Screw M8 X 90

503193372

$4.28

138

Pivot Axle

503193435

$38.43

140

Casted Support

503193894

$12.75

141

Rail Suspension 137

503195714

$230.74

142

Bushing

572080700

$15.26

143

Bolt M8, Short

732601197

$15.06

144

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

146

Socket Head Screw M10 X 35

205503554

$6.18

148

Bushing

503191552

$5.71

160

Center Shock

503192266

$157.66

161

Adjustment Cam

505073625

$12.18

162

Black, Spring

503191882

$59.97

163

Protector

503193663

$35.35

164

Spring Guide

503191872

$2.18

165

Spring Stopper

706200881

$10.30
