Description

Price

1

Hair Pin

114045200

$11.11

2

Socket Screw M5 X 25

205052544

$1.68

3

Elastic Stop Nut M5

232551414

$0.87

4

Flat Washer M5

234051410

$0.53

5

Torx Screw M6 X 30

250000580

$6.08

6

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

7

Torx Screw M5 X 14

250000742

$1.47

8

Lock Washer 8 mm

250200009

$2.11

9

Conical Spring Washer M14

250200144

$4.44

10

Spring Pin M3 X 30

250400063

$2.11

11

Pop Rivet 3/16"

293150103

$0.55

11

Pop Rivet 3/16"

293150103

$0.55

14

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

15

O-Ring

293300185

$0.98

16

Circlip

293370037

$3.19

17

Circlip

293370049

$4.99

18

Circlip

293370065

$0.98

20

Avex Rivet

390909100

$0.30

21

Avex Rivet

390909200

$0.30

22

Pulley Roller

417127016

$24.49

23

Washer

417127155

$8.26

24

Calibration Ass'y

415129604

$21.49

25

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

26

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

27

Pivot Stud

417127294

$14.49

27

Fix Flange Ass'y | Includes 101 to 101e

417127362

$1.00

28

Bushing

417222758

$22.49

29

Roller Axle

417223257

$6.99

30

Spring Cover Ass'y

417223650

$44.99

31

Stopper Washer

417223660

$3.17

32

Ramp Axle

417223694

$11.05

33

Seat Spring

417223752

$15.27

34

Governor Cup Ass'y

417223865

$274.99

35

Fixed Flange Ass'y

417224091

$309.99

36

Slider Shoe

417223919

$6.83

37

Flange Slide Ass'y

417224044

$294.99

38

Roller

417224081

$20.49

39

Ramp 749

417224103

$38.99

40

BELT GUARD BRACKET - Call your local BRP dealership

417300361

Unavailable

41

Guide

417300381

$11.99

42

Belt Guard

417300382

$90.99

43

Drive Belt

417300551

$179.99

44

Reinforcement Plate

417300421

$4.39

45

Front Support

417300430

$14.49

46

Pulley Drive Bolt

417300432

$41.49

47

CVT AIR DUCT - Call your local BRP dealership | Package SE

417300466

$71.99

47

CVT Air Duct Pulley

417300440

$28.99

48

Front Bracket

417300467

$16.49

50

Stopper | Package SE

417300476

$33.99

51

Ball Bearing

504152574

$35.99

52

Decal English

516005503

Unavailable

53

Safety Belt Guard Decal

516005509

Unavailable

54

Flat Washer

517225900

$0.18

54

Flat Washer

517225900

$0.18

55

Clutch Spring

417224084

$17.39

56

Release Spring

417127467

$46.49

57

Cam Ass'y | Includes 100c to 100c3

417127476

$138.49

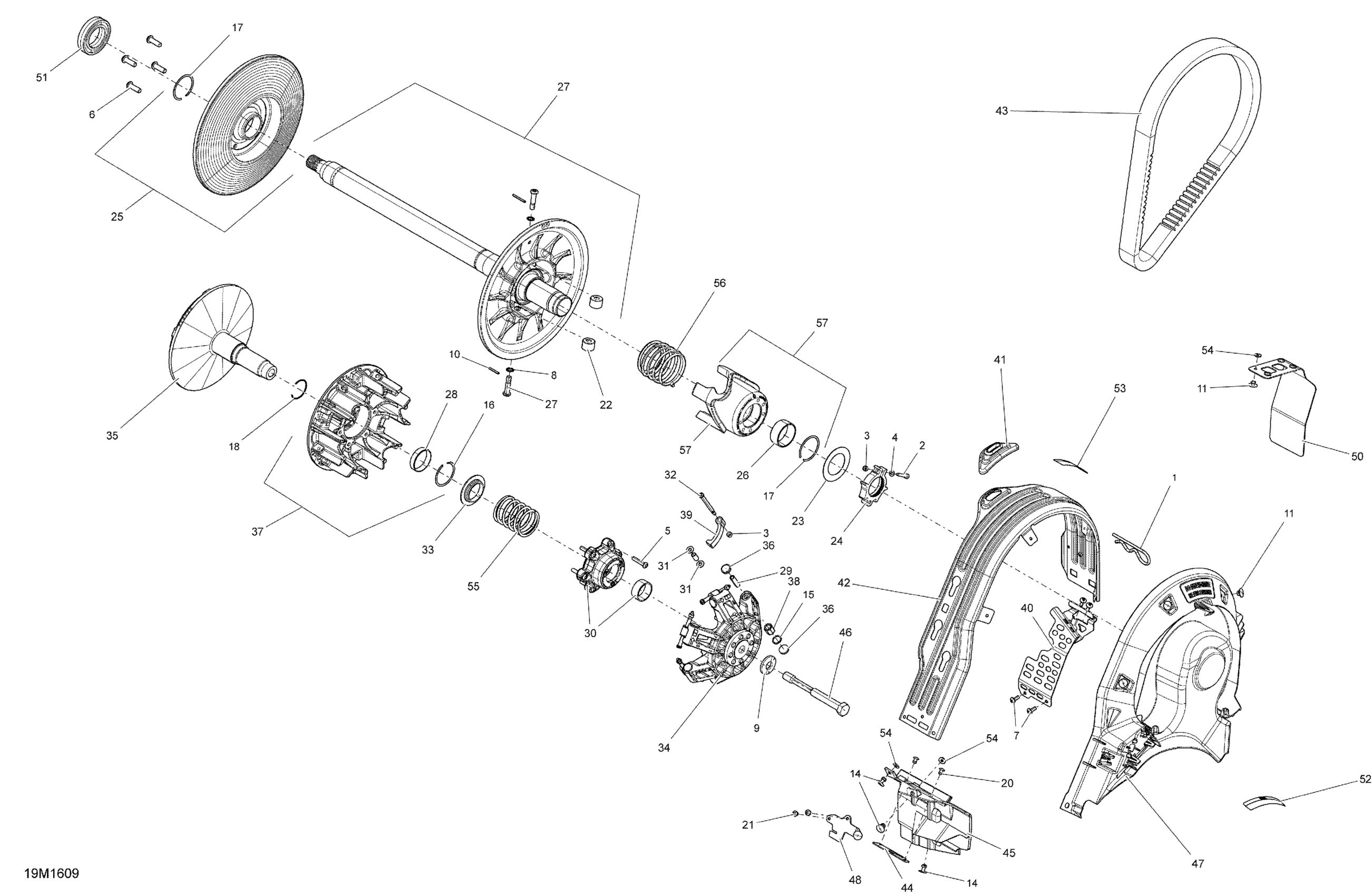

Ski-Doo GRAND TOURING - 4-STROKE, 2016 05- Pulley System - 1200 4-TEC Diagram
