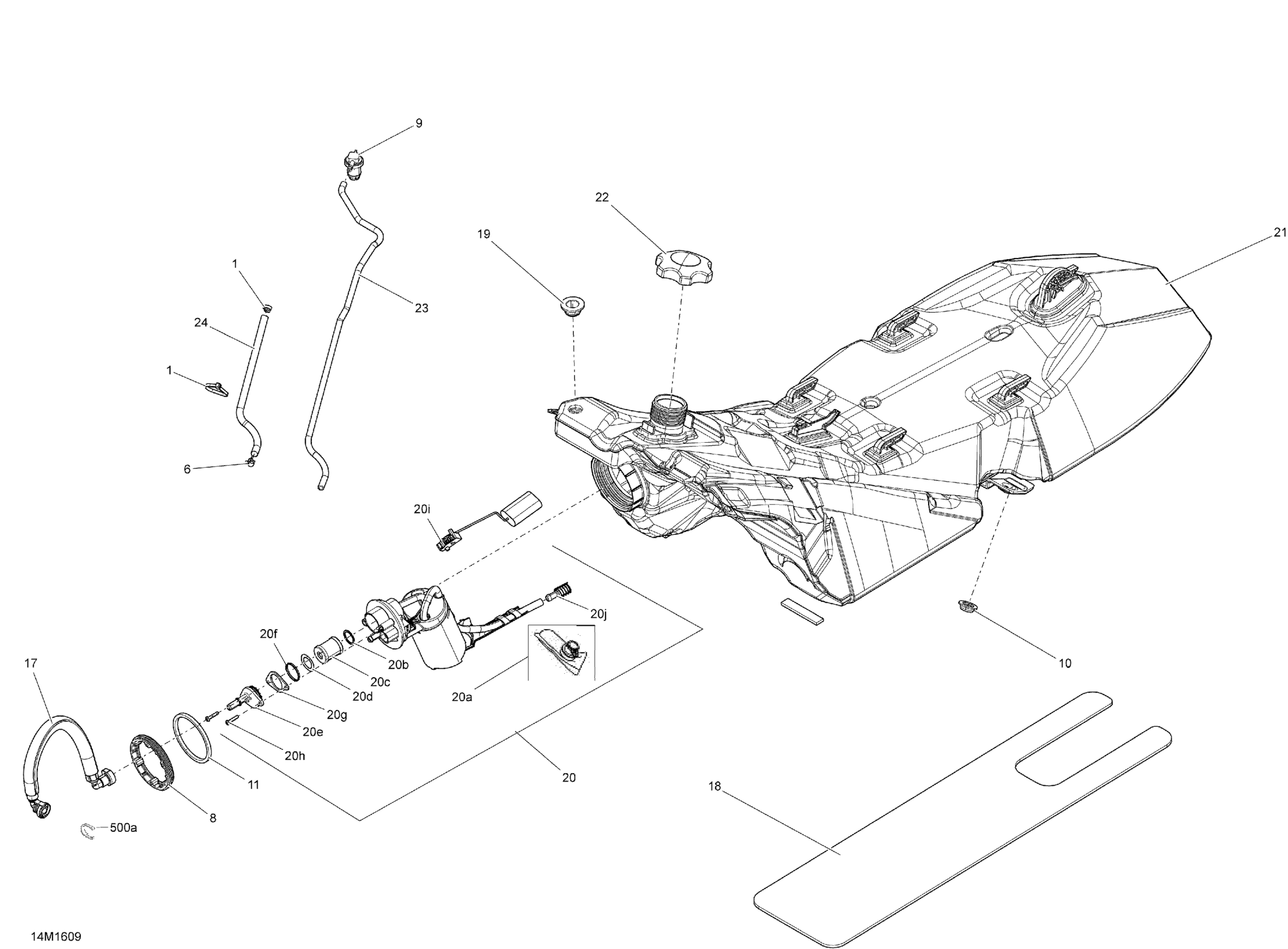

Ski-Doo GRAND TOURING - 4-STROKE, 2016 Fuel System Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.09

6

Spring Clamp

414554800

$0.83

8

Ring

513033180

$17.66

9

Check Valve

513033842

$33.82

10

Shoulder Bushing

513033326

$12.62

11

Gasket

513033334

$23.05

17

Hose Ass'y | Includes 27 to 28

513033583

$77.66

18

Insulating Foam

513033588

$12.62

19

Grommet

513033596

$18.43

20

PUMP FUEL | Includes 300 to 300k This part replaces 513033838.

513034260

$257.66

20a

Fuel Filter

415129451

$23.05

20b

O-Ring

415129511

$16.89

20c

Fuel Filter

415129510

$23.05

20d

Wave Washer

415129512

$18.43

20e

Cover

415129685

$29.97

20f

O-Ring

415129509

$18.43

20g

Fuel Pump Ring

415129569

Unavailable

20h

Screw

415129513

$9.00

20i

Fuel Level Sensor

415130108

$140.74

20j

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

21

Fuel Tank

513033667

$313.82

22

Fuel Tank Cap

513033969

$25.35

22

Fuel Tank Cap | Europe Models

513033721

$25.35

23

Polyurethane Hose 10000Mm Long

219704410

$46.12

24

Protector Tube

504153074

$12.58

500a

Locking Clip

513033135

$5.11
