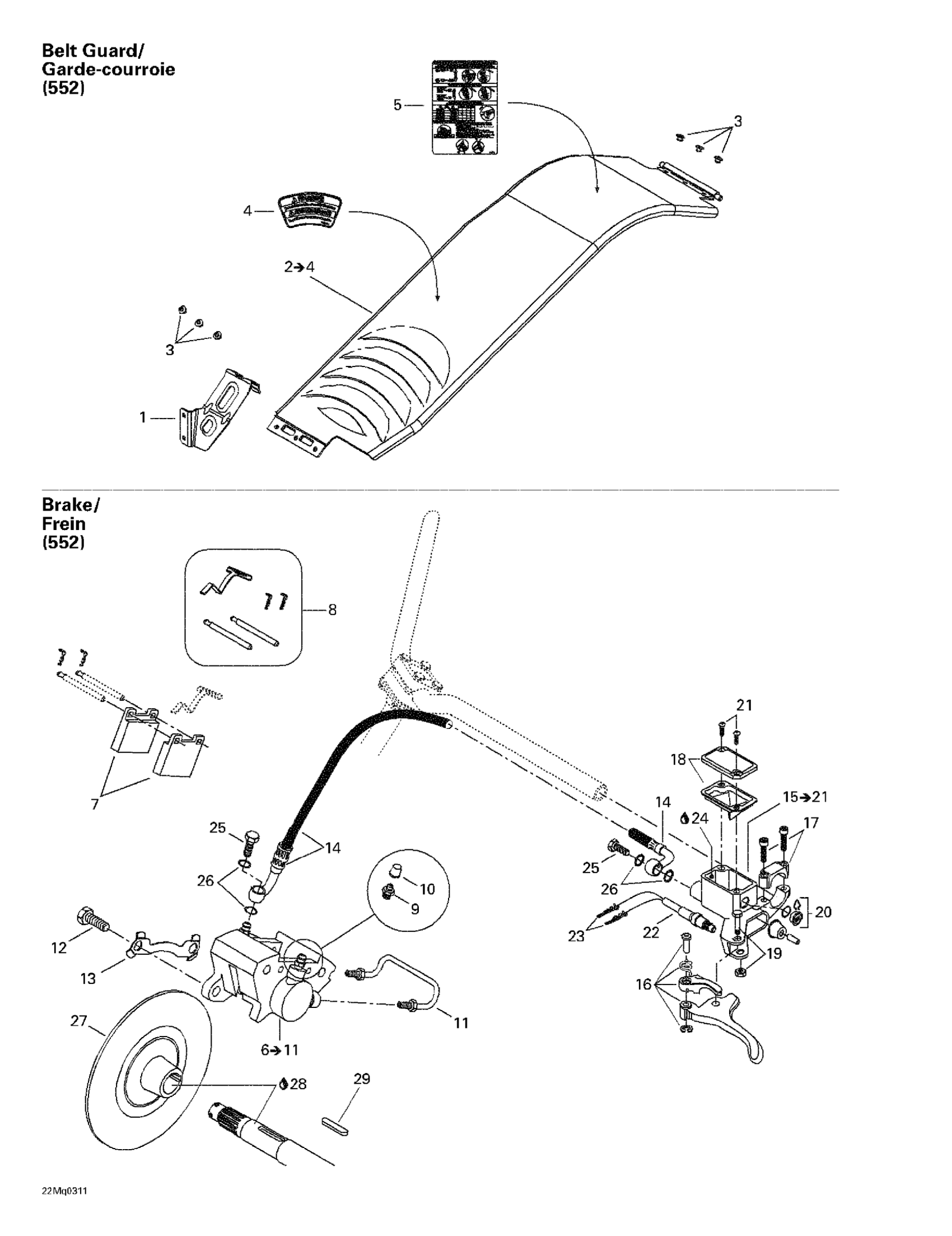

Ski-Doo Grand Touring 380 F/550 F, 2003 06- Hydraulic Brake And Belt Guard (552) Diagram

#

Description
Price

1

Bracket

417300172

Unavailable

2

Belt Guard Ass’Y | Includes Items 2 to 4

417300173

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

5

Decal, Suspension Adjustment Decal

516001640

Unavailable

6

Caliper | Includes 1 to 6

507032349

Unavailable

7

Brake Pad Kit

415129172

$52.99

8

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

9

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

10

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

11

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

12

Hex. Screw M10 X 35

207103544

$1.58

13

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

14

HOSE - Call your local BRP dealership

507032237

Unavailable

15

Master Cylinder | Includes 1 to 8

507032293

Unavailable

16

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

17

Clamp And Screw Kit

507032477

$23.99

18

Cap

415029900

$41.49

19

Pin Ass'y

415030000

$19.99

20

WINDOW - Call your local BRP dealership

414990600

Unavailable

21

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

22

Microswitch

507032366

$98.99

23

Male Terminal

515175232

$1.58

24

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

24

Brake Fluid, GTLMA (Dot 4), 12 x 354 ml | 550 F.

203600062

Unavailable

25

Banjo Bolt

414920500

$8.68

26

Washer

414920600

$1.90

27

Brake Disk

507032203

Unavailable

28

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

29

KEY - Call your local BRP dealership

507021300

Unavailable
