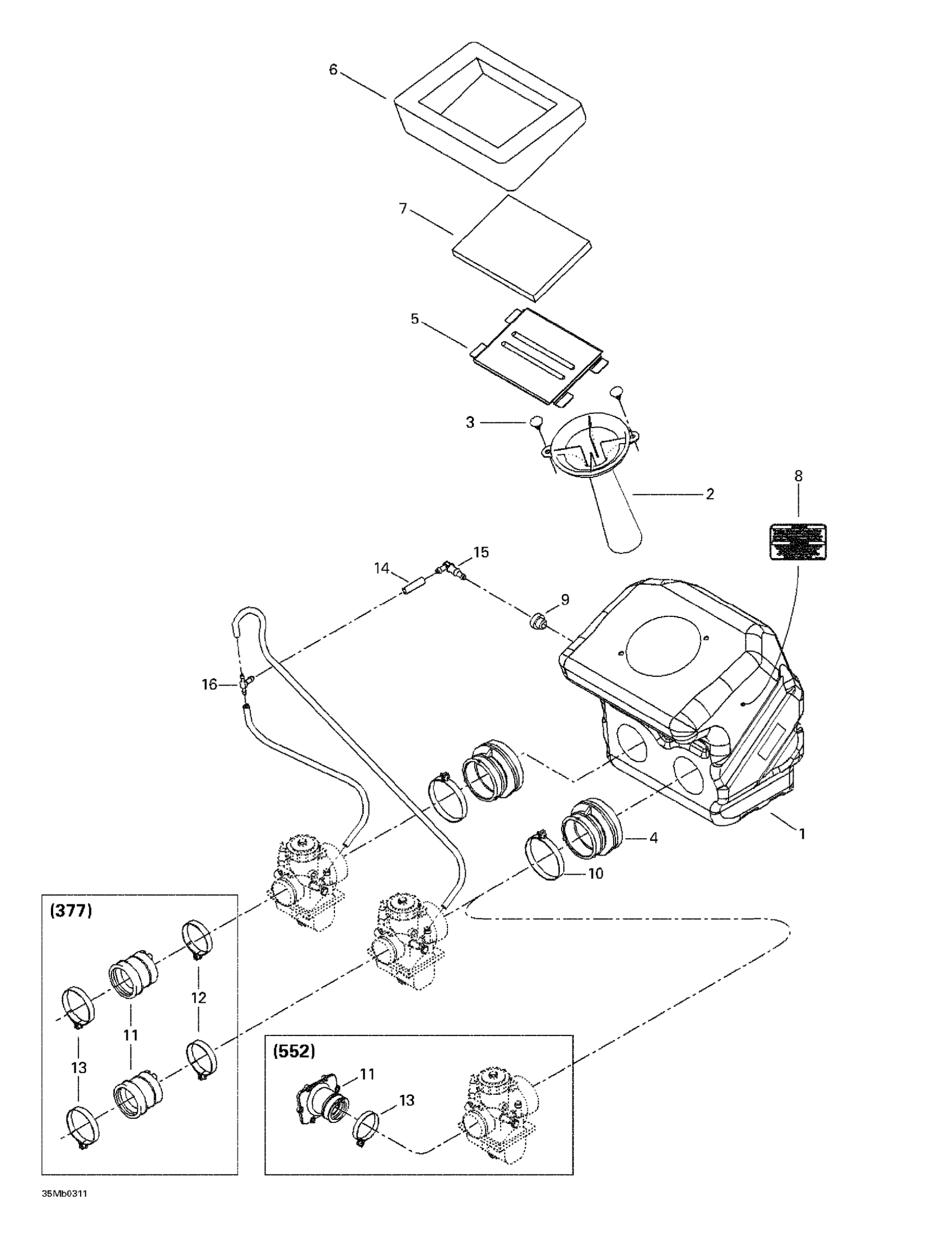

Ski-Doo Grand Touring 380 F/550 F, 2003 02- Air Intake System Diagram

Air Intake | 380 F.

508000211

Unavailable

Air Intake | 550F

508000319

Unavailable

Inlet Tube

572054803

Unavailable

Black, Dart

414644300

$0.98

Adaptor 34 mm

508000203

$20.99

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

Outer Foam

508000245

Unavailable

Air Filter

508000154

$23.49

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

Grommet

513032908

$10.49

Gear Clamp

508000217

Unavailable

Carburetor Socket

420867100

$78.49

Carburetor Adaptor

512059478

$39.99

Clamp

512059395

Unavailable

Gemi Clamp | Not Shown

512059834

$11.60

Polyurethane Hose 10000Mm Long

219704410

$56.99

Elbow Male Connector

414580600

$4.23

T-Fitting

572045500

$7.51
