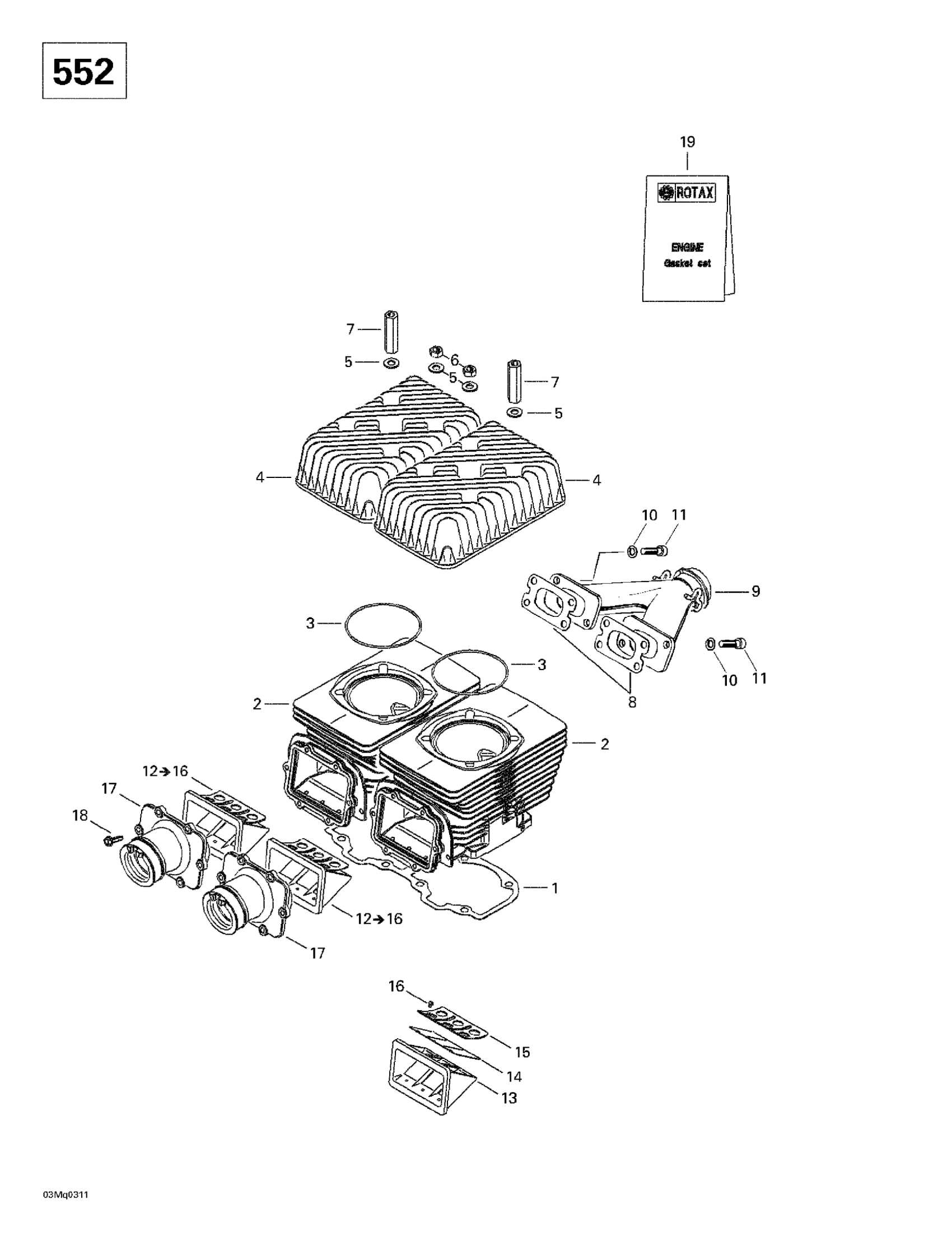

Ski-Doo Grand Touring 380 F/550 F, 2003 Cylinder, Intake, Exhaust Manifold (552) Diagram

Gasket 0.3

420950910

$17.39

Gasket 0.4

420950911

$19.99

Gasket 0.6

420950912

$19.99

Cylinder This part replaces 420923978.

420923974

$393.99

REBUILD-CYLINDER 552 - Call your local BRP dealership

421000600

Unavailable

O-Ring This part replaces 420850540.

293300026

$3.39

HEAD CYLINDER - Call your local BRP dealership

420923595

Unavailable

Flat Washer 8.4 mm

420250315

$1.15

Hex. Nut M8

232081414

$0.72

Distance Nut M8 X 47

420842204

$16.33

Gasket 1.0 mm

420831849

$8.85

Exhaust Manifold

420673065

$339.99

Lock Washer 8 mm

234181401

$0.92

Socket Head Screw M8 X 30

205083044

$1.15

Reed Valve Ass'y

420924519

$54.99

Not Available As Spare Part - Friction Washer

Unavailable

Reed Pedal

420924532

$42.49

Reed Pedal Stop

420924539

$13.16

Phillips Screw M3 X 5

420941215

$1.69

Carburetor Socket

420867100

$78.49

Taptite Screw M5 X 16

420941928

Unavailable

Gasket Set, Engine

420889911

$91.99
