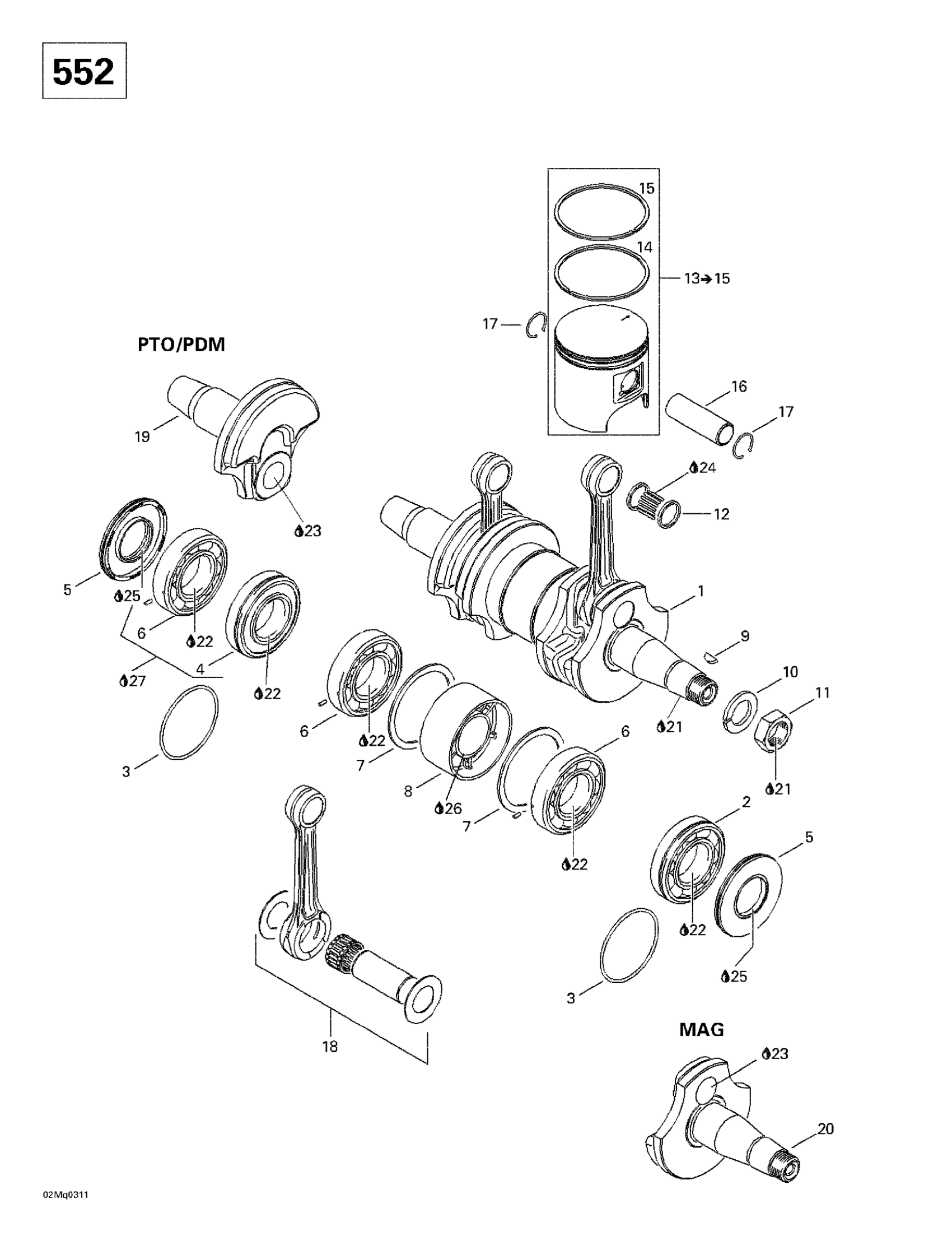

Ski-Doo Grand Touring 380 F/550 F, 2003 Crankshaft And Pistons (552) Diagram

#

Description
Price

1

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.

420889066

Unavailable

2

Ball Bearing

420832571

$38.78

3

O-Ring, 64 mm X 2 mm

293300022

$12.15

4

Ball Bearing

420832632

$97.73

5

Oil Seal This part replaces 290831952.

420831952

$16.39

6

Ball Bearing

420832573

$41.01

7

Retaining Disk

420927710

$7.01

8

Labyrinth Sleeve

420850149

$33.55

9

Woodruff Key

420246055

$2.28

10

Lock Washer, 22 mm

420945759

$1.78

11

Hex. Nut, M22 X 1.5

420842239

$16.39

12

NEEDLE BEARING - Call your local BRP dealership

420832420

Unavailable

13

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

420889050

$169.37

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

420889051

$169.37

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

420889052

$169.37

14

Rectangular Ring, Standard

420815300

$25.34

Rectangular Ring, 1st

420815301

$25.34

Rectangular Ring, 2nd

420815302

$25.34

15

Semi-Trapez Ring, Standard

420815155

$52.21

Semi-Trapez Ring, 1st

420815156

$52.21

Semi-Trapez Ring, 2nd

420815157

$51.46

16

Piston Pin

420916407

$26.09

17

Piston Circlip

420845106

$3.89

18

Rod Repair Kit

420889064

Unavailable

19

Crankshaft PTO Side

420819180

Unavailable

20

Half Crankshaft (MAG)

420819213

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

23

Sealant Loctite 648

219703000

$41.01

24

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

25

Petamo Grease, GHY133N, 400 g

420899271

$65.64

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Isoflex Grease, TOPAS NB52, 50 g

293550021

$55.94
