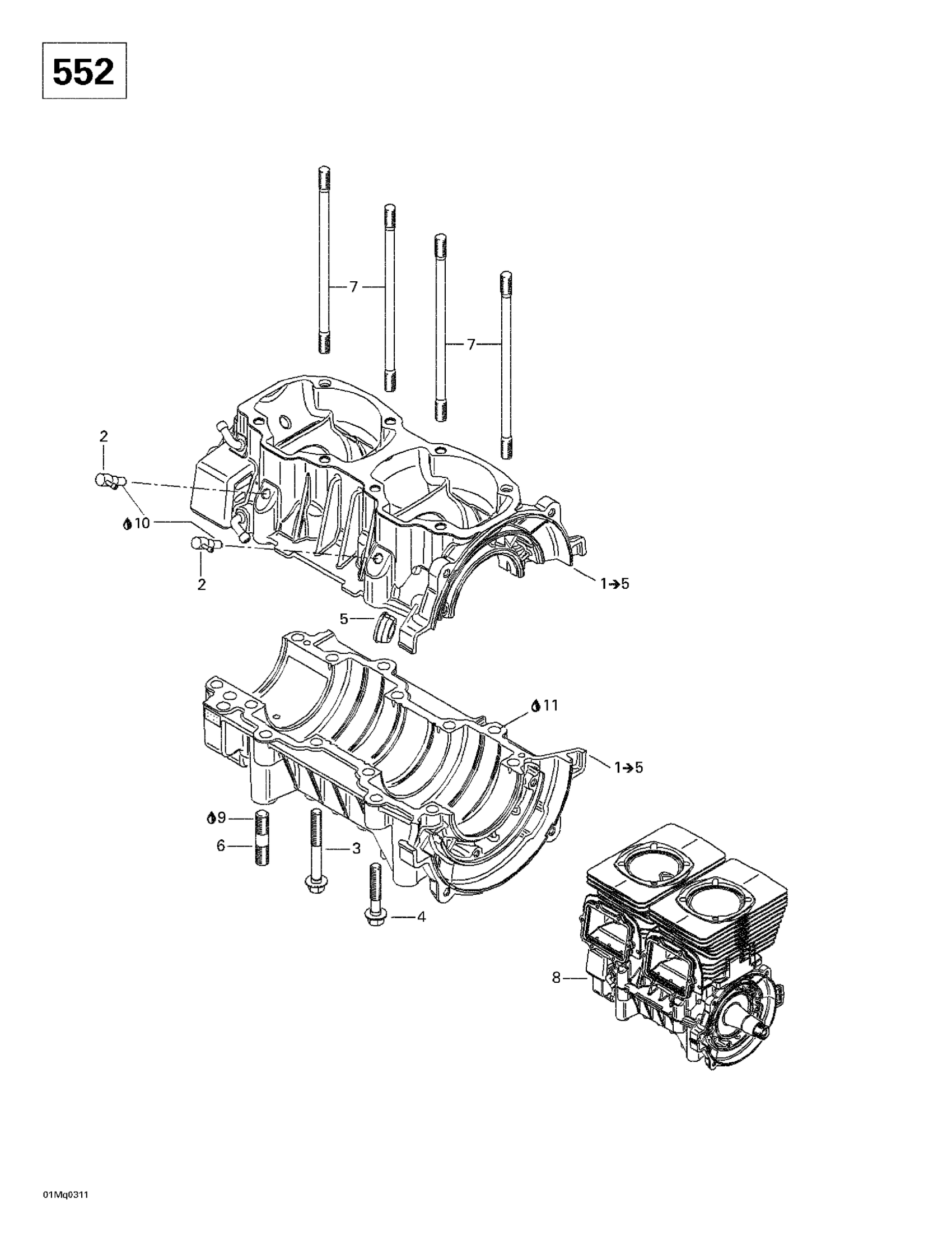

Ski-Doo Grand Touring 380 F/550 F, 2003 Crankcase (552) Diagram

#

Description

Price

1

Crankcase Ass'y | Includes 1 - 5. 550 F.

420888496

Unavailable

2

Check Valve

420956511

$32.81

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$5.91

4

Hex. Collar Screw M8 x 45

420640432

$1.88

5

Cable Grommet

420860962

$11.18

6

Stud M10 X 23

420941644

Unavailable

7

Stud M8 X 173.5

420840556

$14.90

8

Short Block Ass'y | 550 F.

420055201

Unavailable

8

REBUILD-CYLINDER-SHORT BLOCK 552 - Call your local BRP dealership

421000638

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

Sealant Loctite 648

219703000

$41.01

11

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
