Description

Price

10a

Fixed Flange Ass'y

417222937

$439.99

10b>10b2

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

10b1

Bushing

417222758

$22.49

10b2

Circlip

293370037

$3.19

10c

Lever | Includes 10f to 10g

417222671

$49.99

10d

Roller

417222947

$21.99

10e

Stopper Washer

417004302

$15.90

10f

Pin

417004308

$13.99

10h

Cotter Pin

250400060

$2.00

10j

Lever Axle

417223164

$4.49

10k

Spring Seat

417222312

$9.59

10m

Spring Clutch

414689200

$41.49

10n>10n1

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

10n1

Bushing

417009204

$17.49

10p

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

10q

Lock Washer 8 mm

250200009

$2.11

10r

Governor Cup Ass'y

417223669

$489.99

10s

Ramp 414

417222546

$39.99

10t

Spring Pin M10 X 22

250400050

$2.99

10u

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

10v

Calibration Screw

417223501

$13.99

10w

Washer

417005600

$4.09

10x

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10y

O-Ring

732401030

$0.98

10z

Slider Shoe

417222992

$4.49

10aa

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

10ab

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

10ac

Guard

417009205

$21.99

10ad

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

20

Conical Spring Washer M14

250200144

$4.44

30

Drive Pulley Bolt

417120000

$65.49

40

Decal English

516005503

Unavailable

100a>100a4

Fix Flange Ass'y | Includes 100a to 100a4

417127387

$499.99

100a1

Pulley Roller

417127016

$24.49

100a2

Pivot Stud

417127294

$14.49

100a3

Lock Washer 8 mm

250200009

$2.11

100a4

Spring Pin M3 X 30

250400063

$2.11

100b>100b2

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100b1

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100b2

Circlip

293370049

$4.99

100c>100c2

Cam Ass'y | Includes 100c to 100c2

417127377

$159.49

100c1

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100c2

Circlip

293370049

$4.99

100d

Green, Spring

417127137

$41.49

100e

Swivel Abutment

417127116

$9.39

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100g

Calibration Ass'y

415129604

$21.49

100h

Socket Screw M5 X 25

205052544

$1.68

100j

Flat Washer M5

234051410

$0.53

100k

Elastic Stop Nut M5

232551414

$0.87

100m

Washer

417127155

$8.26

100n

Ball Bearing

504152574

$35.99

200

Drive Belt

417300551

$179.99

300

Belt Guard

417300357

$91.99

320

Safety Belt Guard Decal

516005509

Unavailable

330

Front Bracket

417300423

$7.29

340

Avex Rivet

390909200

$0.30

350

Guide

417300381

$11.99

360

CVT Air Duct Pulley

417300440

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

380

Stopper

417300445

$10.49

390

Avex Rivet

390909200

$0.30

400

Front Support

417300430

$14.49

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

420

Flat Washer

517225900

$0.18

450

Reinforcement Plate

417300421

$4.39

460

Avex Rivet

390909100

$0.30

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11

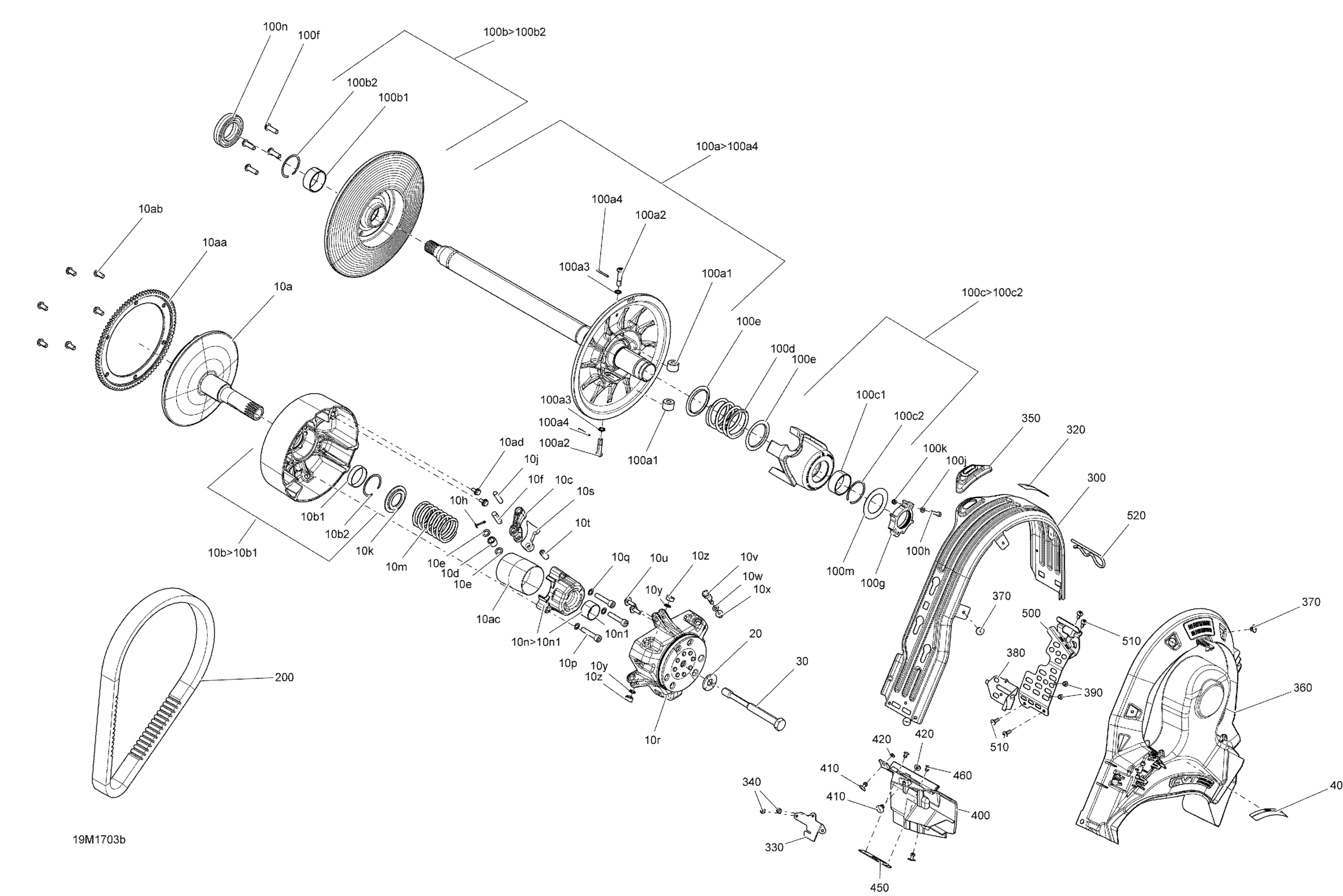

Ski-Doo GRAND TOURING - 2-STROKE, 2017 05- Pulley System - 600HO E-TEC Diagram

Fixed Flange Ass'y

Sliding Flange Ass'y | Includes 10b to 10e

Bushing

Circlip

Lever | Includes 10f to 10g

Roller

Stopper Washer

Pin

Cotter Pin

Lever Axle

Spring Seat

Spring Clutch

Spring Cover Ass'y | Includes 10r to 10t

Bushing

Socket Head Screw M8 X 1.25 X 40

Lock Washer 8 mm

Governor Cup Ass'y

Ramp 414

Spring Pin M10 X 22

Hex. Flange Screw M6 X 18, Scotch Grip

Calibration Screw

Washer

Hex. Flange Elastic Nut M6 x 1.0

O-Ring

Slider Shoe

Ring Gear_Starter This part replaces 417223738.

Hex. Flange Screw M8 X 1.25 X 16

Guard

Hex. Flange Screw M6 X 12, Scotch Grip

Conical Spring Washer M14

Drive Pulley Bolt

Decal English

Fix Flange Ass'y | Includes 100a to 100a4

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin M3 X 30

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c2

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Green, Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Safety Belt Guard Decal

Front Bracket

Avex Rivet

Guide

CVT Air Duct Pulley

Pop Rivet 3/16"

Stopper

Avex Rivet

Front Support

Pop Rivet 3/16" | DS 650 X

Flat Washer

Reinforcement Plate

Avex Rivet

BELT GUARD BRACKET - Call your local BRP dealership

Torx Screw M5 X 14

Hair Pin
