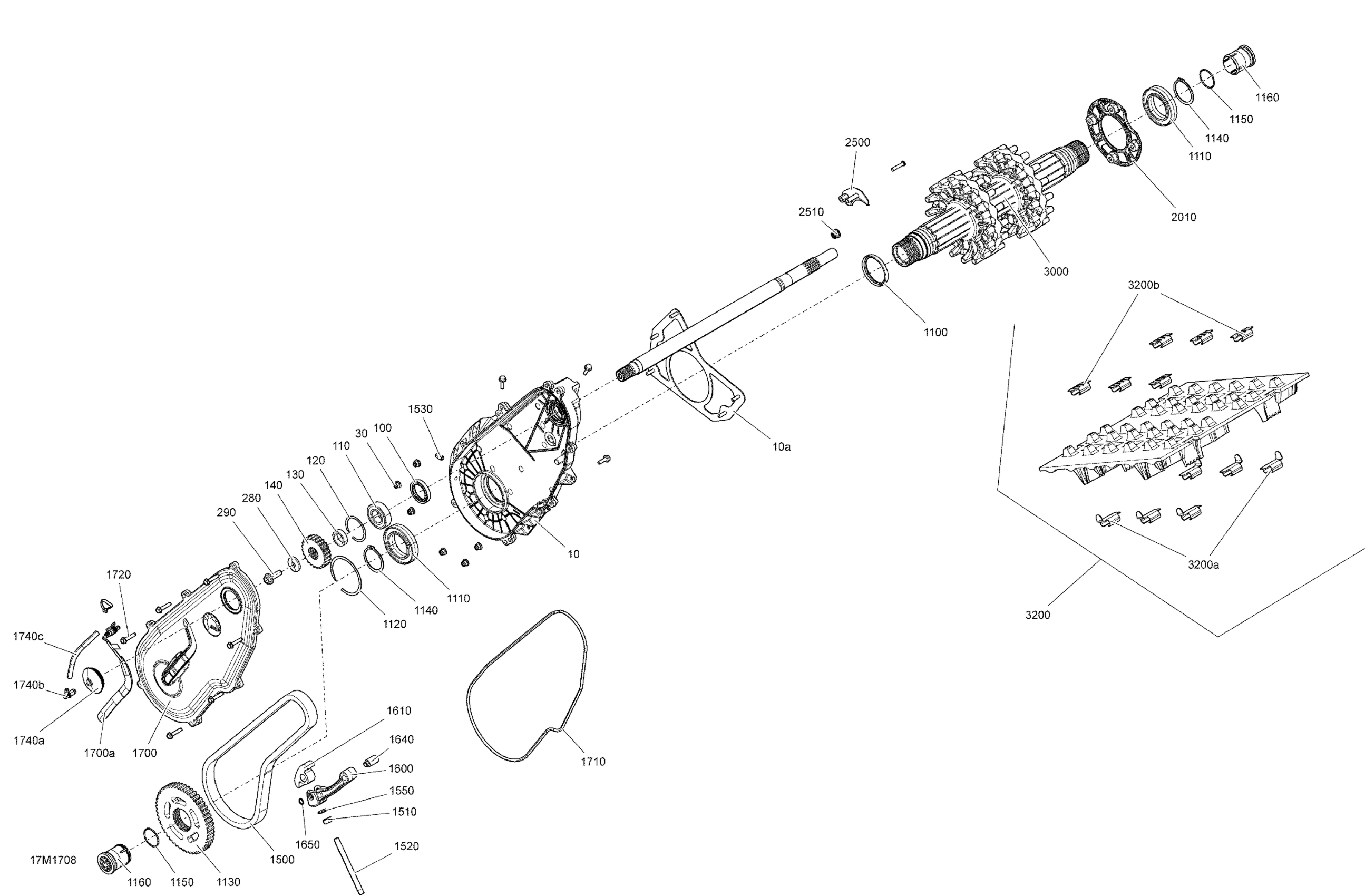

Ski-Doo GRAND TOURING - 2-STROKE, 2017 05- Drive System - All Models Diagram

Description

Price

10>10a

Chaincase | Includes 10 to 10a

504153405

$339.99

10a

Plate | Not Shown

518325816

$79.99

100

Oil Seal

293200158

$14.22

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

130

Shim

504152628

$10.99

140

Sprocket 23 Teeth

504153911

$44.99

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Kit Sprocket This part replaces 504152593.

861805538

$164.99

1140

Circlip

504152572

$6.95

1150

O-Ring

293300122

$2.11

1160

Magnetic Cap

504152619

$23.49

1500

Drive Chain, 104 Links

504152629

$179.99

1510

Hex. Nut M10 X 1.5

232006414

$1.37

1520

Adjustment Screw

504152602

$12.49

1530

Magnetic Plug 1/8 - 27 NPTF

504152854

$11.49

1550

Bonded Washer

250200100

$2.11

1600

Tensioner chain

504153429

$15.99

1610

Slider Chain

504152739

$65.99

1640

Tensioner Axle

504152841

$16.34

1650

Circlip

504152282

$3.17

1700>1700a

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$339.99

1700a

Rotation Sensor

504152896

$37.99

1710

Tight Seal

293300130

$7.51

1720

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

2010

Retaining Ring

504153886

$21.99

2500

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y

504153269

$433.99

3200

TRACK ASS'Y TR15X137X1.2STIS - Call your local BRP dealership | Includes 3200 to 3200b

504153480

Unavailable
