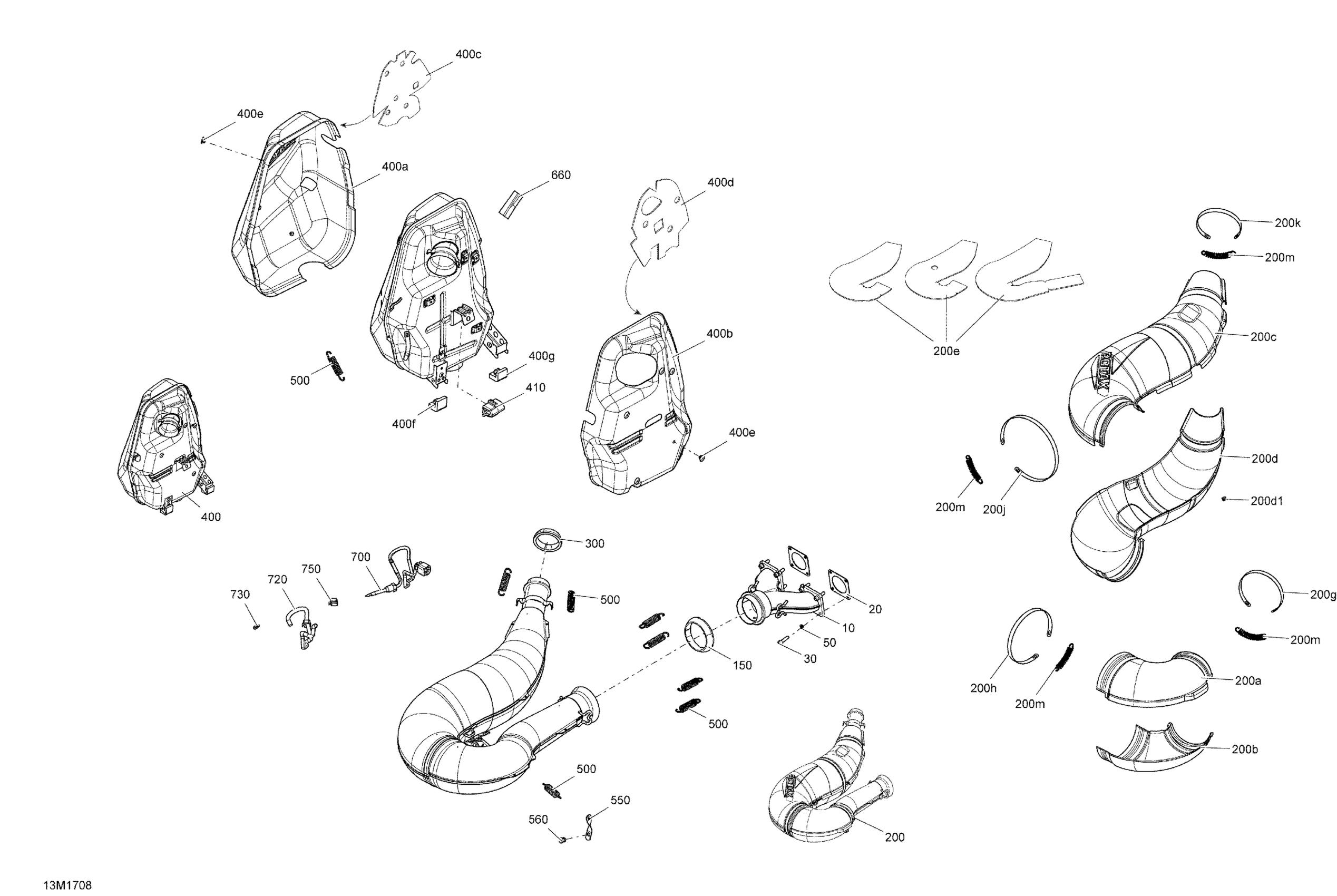

Ski-Doo GRAND TOURING - 2-STROKE, 2017 Exhaust System - All Models Diagram

#

Description
Price

10

Exhaust Manifold This part replaces 420673420.

420673421

$269.97

20

Gasket

420850552

$7.92

30

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

50

Washer

514053953

$0.75

150

Exhaust Gasket

514053487

$26.12

200

Exhaust Tuned Pipe | Includes 200 to 200k

514055065

$664.58

200a

Front Upper Half Enveloppe

514054992

$38.43

200b

Front Lower Half Enveloppe

514054993

$38.43

200c

Rear Upper Half Enveloppe

514055039

$67.66

200d

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

200d1

Henrob Rivet

293150091

$0.75

200e

Insulating Wool

514054487

$19.20

200g

Retaining Strap

514054408

$10.55

200h

Retaining Strap

514054409

$10.55

200j

Retaining Strap

514054410

$10.55

200k

Retaining Strap

514053499

$8.35

200m

Spring

514053643

$6.20

300

Exhaust Gasket

514054174

$27.66

400

Muffler Ass'y | Includes 400 to 400g

514054970

$738.43

400a

RH Deflector

514054985

$54.58

400b

LH Deflector

514054967

$54.58

400c

RH Insulating Wool

514054711

$18.43

400d

LH Insulating Wool

514054299

$19.20

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Lower Stopper

514054274

$19.20

400g

Lower Stopper

514054496

$26.12

410

Upper Stopper

514054606

$14.92

500

Spring

415107100

$6.20

550

Spring Bracket, 8.0mm hole

514054975

$6.28

560

Ornit Rivet 6,5 X 14.5

293150266

$1.94

660

Heat Shield (Rectangle)

514054987

Unavailable

700

Temperature Sensor

514054870

$141.51

720

Tubing 6 Mm 3000Mm Long

219704425

$13.14

730

Tie Wrap 94 mm | 4X4

293750001

$0.83

750

Clip

414227300

$1.45
