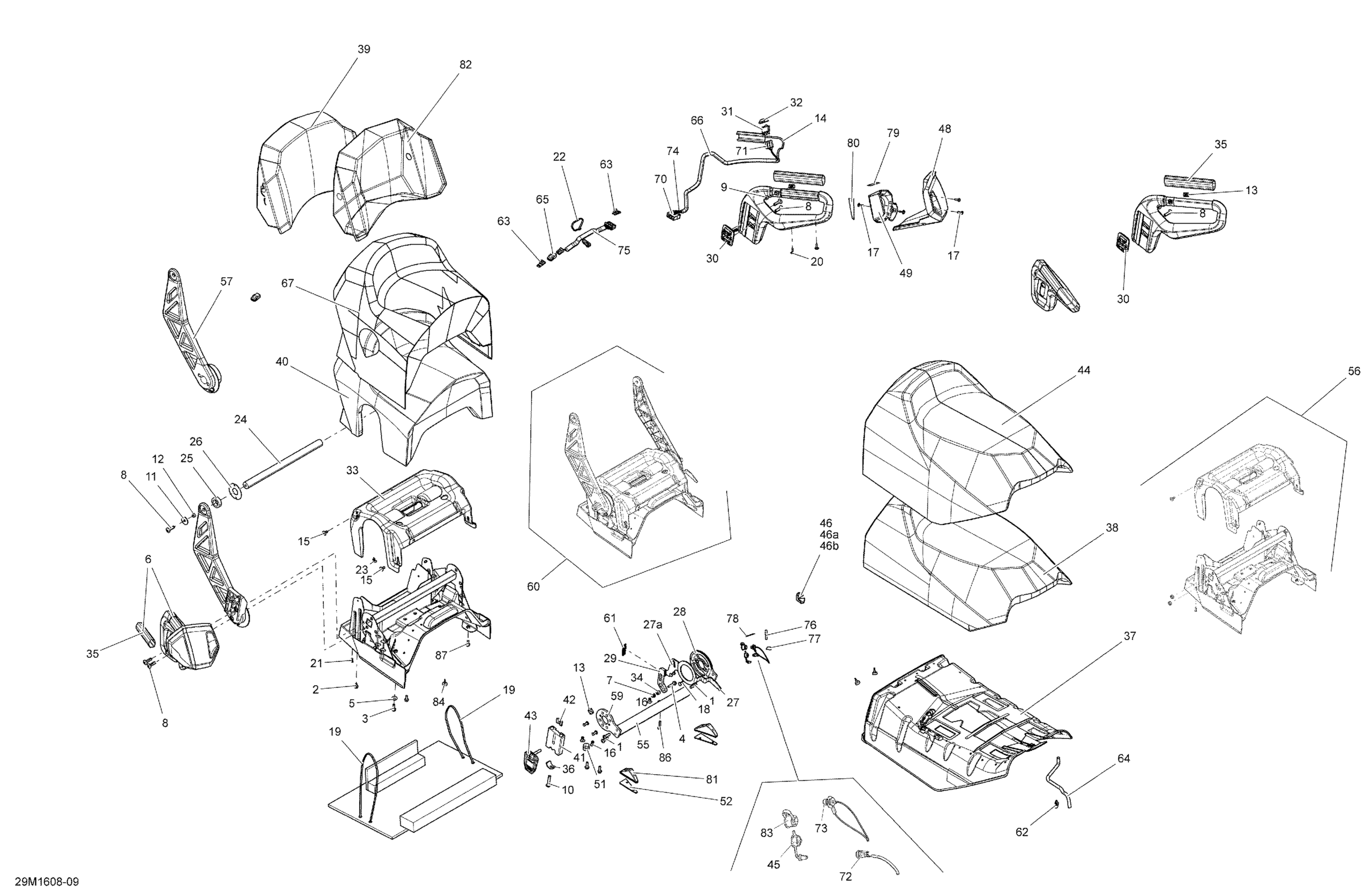

Ski-Doo GRAND TOURING - 2-STROKE, 2016 09- Seat Diagram

#

Description
Price

1

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

2

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

3

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

5

Flat Washer

224061201

$1.37

6

RH HANDLE ASS'Y - Call your local BRP dealership | Includes 140 to 140,051

510005854

Unavailable

6

LH Handle Ass'y | Includes 150a to 150a16

510006709

$236.49

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Hex Torx Truss M8 X30

250000745

$3.17

9

Torx Truss Screw M6 X 16

250000721

$1.69

10

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

12

Spacer

271000558

$8.89

13

Nut Welded, M6

293100003

$9.12

14

Heated Element

515176999

$66.99

15

Pop Rivet 3/16"

293150100

$1.09

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

Torx Screw K50 X 16

250000720

$1.69

18

STEEL RIVET - Call your local BRP dealership

293150129

Unavailable

19

Tie Wrap 368 mm

293750008

$1.04

20

Screw M4 X 16

250000725

$3.49

21

Pop Rivet 3/16"

390402300

$0.75

22

Tie-Rap 180 mm

414115200

$0.11

23

Black, Dart

414644300

$0.98

24

Upper Backrest Axle

510004377

$44.99

25

Rubber Shim

510004378

$10.99

26

Washer

510004379

$10.01

27

HANDLE, BLACK - Call your local BRP dealership

510004385

Unavailable

27a

GRIP - Call your local BRP dealership

510004419

Unavailable

28

Sprocket

510004391

$29.99

29

Adjustment Pivot

510006338

$22.49

30

Passenger Handle Trim

510006602

$13.99

31

Rocker Switch

510004413

$8.79

32

Switch Protector

510004414

$7.99

33

Foam Support

510004423

$38.99

34

BUSHING - Call your local BRP dealership

510004425

Unavailable

35

Reinforcement Handle

510005814

$21.99

35

Handle Grip

510004449

$12.49

36

HANDLE CLAMP - Call your local BRP dealership

510004565

$16.49

37

Front Seat Base

510004775

$93.99

38

Front Seat Foam

510004777

$219.99

39

Backrest Foam

510004782

$124.99

40

Rear Seat Foam

510004791

$294.99

41

HANDLE LINK - Call your local BRP dealership

510004798

$32.99

42

Stopper Block

510004804

$21.99

43

Lever Lock Ass'y

510004806

$31.99

44

SEAT COVER - Call your local BRP dealership

510006117

Unavailable

45

Cap

510004950

$15.49

46

Seat Corner, Full Moon

510004976

$16.99

46

SEAT CORNER, BLACK - Call your local BRP dealership

510004963

Unavailable

46a

RH REAR CORNER SEAT - Call your local BRP dealership

510004964

Unavailable

46b

LH REAR CORNER SEAT - Call your local BRP dealership

510004965

Unavailable

47

RH Air Deflector

510005009

$28.99

48

LH Air Deflector

510005010

$28.99

49

Switch Housing

510005036

$18.49

51

SEAT STUD - Call your local BRP dealership

510005095

$26.99

52

SPACER - Call your local BRP dealership

510005216

Unavailable

54

LH Arm

510005465

$93.99

55

LINK TUBE - Call your local BRP dealership

510005496

Unavailable

56

Seat Base Ass'y | Includes 20a to 20a3

510005535

$419.99

57

RH Arm, Black

510005539

$28.99

57

RH Arm

510005464

$93.99

59

LINK PLATE - Call your local BRP dealership

510005568

Unavailable

60

Seat Base Ass'y | Includes 20,001 to 20,001u

510005688

$419.99

61

Spring

514053643

$6.35

62

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

63

Housing Support

515175283

$9.19

64

Tubing 6 Mm 3000Mm Long

219704425

$13.75

65

Male Housing, 3 Circuits

515175494

$16.18

66

Was 515175506 Tubing

219704426

$142.99

67

SEAT COVER - Call your local BRP dealership

510006115

Unavailable

70

Male Connector

515176033

$17.68

71

Handle Harness

515176697

$29.99

72

WIRING HARNESS_HEATED SOLE - Call your local BRP dealership

515177018

$27.99

73

Visor Connector Harness

515176698

$29.99

75

Seat Harness

515176766

$40.99

76

VISOR AND LINER DECAL - Call your local BRP dealership

516003612

Unavailable

77

HANDLE AND SEAT DECAL - Call your local BRP dealership

516003613

Unavailable

78

INTENSITY SWITCH DECAL - Call your local BRP dealership

516003809

Unavailable

79

Heated Handle Decal

516003816

$13.49

80

Connector Decal

516003937

$18.99

81

RH Seat Anchor

518325710

$37.99

81

LH Seat Anchor

518325709

$37.99

82

BACKREST COVER - Call your local BRP dealership

510005353

$164.99

83

Cap

572103300

$10.49

84

Rubber Stopper

708000759

$4.19

86

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

87

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644
